Because of the parabolic shape, the troughs can focus the sun at 30–100 times its normal intensity. The fluid is then pumped through a heat exchanger that transfers heat to water which produces steam on boiling the water. The steam is used to run a turbine which generates electricity.

What are the characteristics of parabolic troughs of solar thermal power plant?

A solar energy conversion device that uses a trough covered with a highly reflective surface to focus sunlight onto a linear absorber containing a working fluid that can be used to spin a turbine for electricity generation; with a single-axis sun-tracking system, the configuration of a parabolic trough can track the …

Which solar thermal technology has highest efficiency?

Of all of these technologies the solar dish/Stirling engine has the highest energy efficiency. A single solar dish-Stirling engine installed at Sandia National Laboratories National Solar Thermal Test Facility (NSTTF) produces as much as 25 kW of electricity, with a conversion efficiency of 31.25%.

Why the efficiency of parabolic dish type solar thermal power plant is high?

A transfer fluid absorbs heat as it travels through the receiver. In some systems, the heat engine, such as a Stirling engine, may be linked to the receiver to generate electricity. To achieve the higher efficiencies for converting solar energy, parabolic systems can reach higher temperatures of 1830 °F (1000 °C).

What is a heliostat used for?

heliostat, instrument used in solar telescopes to orient and focus sunlight along a fixed direction. A typical heliostat consists of a flat plane mirror and a curved parabolic mirror.

Where are parabolic troughs used?

The hot fluid can be piped to a heat engine, which uses the heat energy to drive machinery, or to generate electricity. This solar energy collector is the most common and best known type of parabolic trough.

What is the function of a parabolic trough?

The parabolic trough reflector is a solar thermal energy collector designed to capture the sun’s direct solar radiation over a large surface area and focus, or more generally “concentrate it” onto a small focal point area increasing the solar energy received by more than a factor of two which means more overall heat …

How parabolic dish receiver are efficient?

Within CSP technologies, parabolic dish concentrators are the most efficient of all solar collector types due to a combination of dual axis tracking and high concentration ratios [2]. … Improved optics with high concentration ratios directly affects the aperture size of cavity type receiver.

How do parabolic trough and parabolic dishes maximize the amount of energy they absorb?

The troughs are rotated throughout the day as the sun moves from east to west to maximize the received solar energy. The metal absorber tube is filled with fluid, typically synthetic oil, which can be heated up to 400°C. Because of the parabolic shape, the troughs can focus the sun at 30–100 times its normal intensity.

Why do parabolic reflectors serve as more efficient receivers for communication dishes?

High gain: Parabolic reflector antennas are able to provide very high levels of gain. The larger the ‘dish’ in terms of wavelengths, the higher the gain. High directivity: As with the gain, so too the parabolic reflector or dish antenna is able to provide high levels of directivity.

Article first time published on

What is solar thermal power plants?

Solar thermal power plants are electricity generation plants that utilize energy from the Sun to heat a fluid to a high temperature. … There are two types of systems to collect solar radiation and store it: passive systems and active systems. Solar thermal power plants are considered active systems.

How is the solar energy is better than the thermal power?

– Solar energy is a renewable energy source because it can be used to generate electricity as long as the Sun does. Because coal is needed to generate electricity, thermal power is a non-renewable energy source. – Solar energy is a non-polluting and clean source of energy that can be used instead of fossil fuels.

Which is more efficient solar thermal or PV?

Solar thermal can turn around 90% of radiation into heat, whereas solar PV has an efficiency of between 15% and 20%, though improvements in panel technology is seeing this number consistently increase.

What is heliostat and how it works?

A heliostat is simply a mirror that rotates on two axes to reflect sunlight onto a fixed spot. Even though the sun marches across the sky, the spot of reflected light remains stationary. Multiple heliostats can concentrate sunlight onto a single target (e.g. a thermal receiver).

What is the most common form of renewable energy used to generate electricity?

Hydropower. Hydropower is the most widely-used renewable power source, with the global hydroelectric installed capacity exceeding 1,295GW, accounting for more than 18% of the world’s total installed power generation capacity and more than 54% of the global renewable power generation capacity.

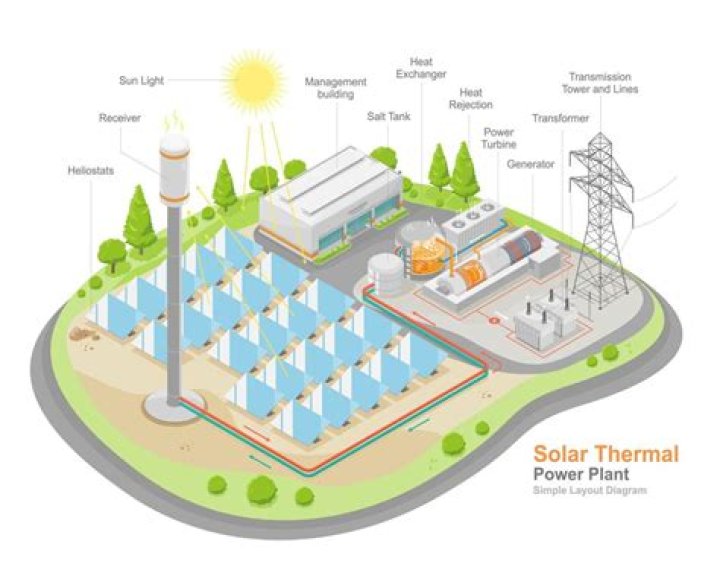

What is heliostat and central receiver system?

About this Research Topic. The central receiver (or power tower) systems use a field of distributed mirrors – heliostats – that individually track the sun and focus the sunlight on the top of a tower. The solar energy is absorbed by a working fluid and then used to generate electricity.

Which is most widely used working fluid in parabolic trough solar power plant?

The most common technology used for the solar field is parabolic trough collectors with thermal oil as heat transfer fluid. Due to the environmental issues and temperature limitations of the thermal oil, alternative fluids such as water, molten salts or pressurized gas have been studied and tested.

What is parabolic solar cooker?

Parabolic solar cookers use a parabolic-shaped reflector to direct sunlight to a small area in order to generate heat for cooking. They are able to reach high temperatures, 350 °C (662 °F) or higher, which allows them to be used for grilling and frying.

What is the main disadvantage of parabolic trough reflector?

Disadvantages: Sun tracking is necessary to maintain solar collection by parabolic troughs otherwise the output will reduce. This increases cost and maintenance associated in maintaining the moving structures. High concentrated sunlight is essential for good working of a parabolic trough.

What is the energy transformation of a parabolic trough?

The key principle of a parabolic trough plant is to transform solar primary energy into electricity by means of a solar field with parabolic trough technology. The parabolic trough collectors track the sun from East to West in order to maximize the electricity generation.

What is a solar water heater parabolic trough?

Parabolic-trough solar water heating is a well-proven technology that directly sub- stitutes renewable energy for conventional energy in water heating. Parabolic-trough collectors can also drive absorption cooling systems or other equipment that runs off a thermal load.

Which material is most preferred for reflector of a parabolic trough collector?

A Typical parabolic-trough collector (PTC). Back-silvered thick-glass reflectors are the most widely used type of reflector for parabolic-trough concentrators.

How thermal energy is produced by solar energy?

Solar thermal power systems use concentrated solar energy In most types of systems, a heat-transfer fluid is heated and circulated in the receiver and used to produce steam. The steam is converted into mechanical energy in a turbine, which powers a generator to produce electricity.

How does the solar thermal energy work?

A Solar Thermal system works by harnessing the sun’s energy and converting it into heat, that is then transferred to your home or business. … The heat from the exchanger will then heat the water inside the cylinder. After the liquid releases its heat, the water flows back to the collectors for reheating.

How is solar thermal energy converted into electrical energy?

Solar energy can be converted to electricity in two ways: Photovoltaic (PV devices) or “solar cells” – change sunlight directly into electricity. … Solar Power Plants – indirectly generate electricity when the heat from solar thermal collectors is used to heat a fluid which produces steam that is used to power generator.

What is the purpose of parabolic dish?

A parabolic dish is a reflective instrument with a circular, parabolic shape that can collect or project different types of energy. Using the geometric principles of the parabola, the dish can efficiently both receive and reflect energy from distant sources.

How is a parabolic dish used to transmit or receive signals?

A bowl-shaped antenna that reflects and focuses incoming radio waves into a narrow beam directed toward a receiver typically positioned above the center of the unit. … A parabolic reflector shapes a transmitted radio signal, focusing it into a collimated beam, with increased power density, or signal strength.

How does a dish type concentrated solar power system collect solar energy?

The solar concentrator, or dish, gathers the solar energy coming directly from the sun. The resulting beam of concentrated sunlight is reflected onto a thermal receiver that collects the solar heat.

What is the advantage of a parabolic reflective antenna?

The main advantage of a parabolic antenna is that it has high directivity. It functions similarly to a searchlight or flashlight reflector to direct the radio waves in a narrow beam, or receive radio waves from one particular direction only.

Why are parabolic mirrors used as reflectors in solar heaters and cookers?

Concave mirrors absorb all the incident light and reflect it to a single focal point. … This reflected light is very powerful because it carries a lot of thermal energy. The cooking pot is placed on the focal point where the light is concentrated.

Why are parabolic mirrors used in telescopes?

Reflecting telescopes have many advantages over refracting telescopes. Mirrors don’t cause chromatic aberration and they are easier and cheaper to build large. … Parabolic mirrors will focus all incoming light rays to a single point.
