Why do I need a 12 pin trailer plug?
Why do I need a 12 pin trailer plug?
12-pin connectors are typically required when towing caravans, which may require refrigerators and other accessories to be run whilst on the go. Additionally, heavier applications such as large fishing boats may also require an electronic braking system or stability control system to ensure safety when on the road.
Are all 12 pin trailer plugs the same?
Each size has a different amp rating and each different colour suitable to plugs of only that colour. The most popular Anderson plug size is the 50A plug. A 12-pin plug is sometimes an alternative to an Anderson plug if the caravanner wants just one electrical connection between car and van.
Can a 7 pin trailer plug into a 12 pin socket?
The flat 7 Pin plug can be plugged into a flat 12 pin plug on your caravan or car.

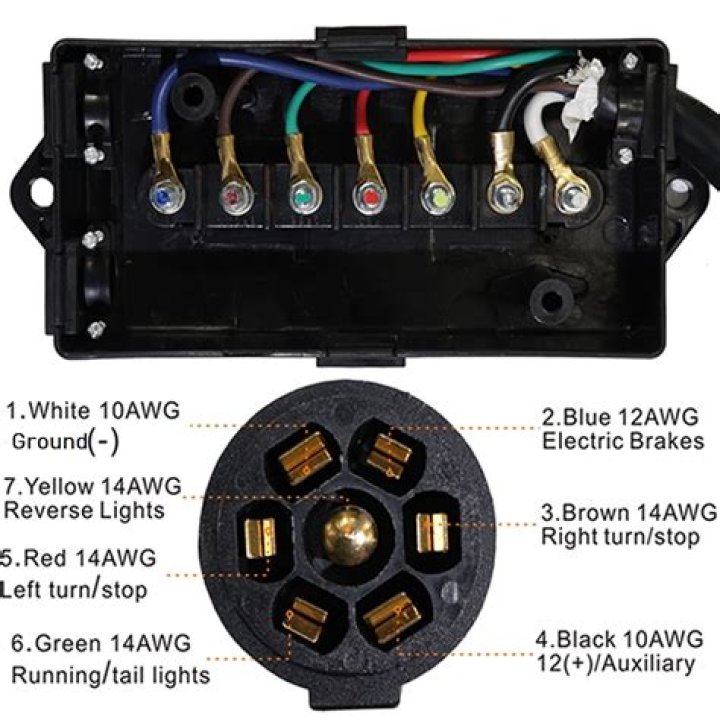

How many pins does a 7 pin trailer connector need?
The 7-pin connector uses on newer trailers all 7 pins according to the ISO standard. [9] [10] On older trailers there’s sometimes a 5-wire setup using a 7-pin connector.
Where are the connectors on a trailer in Australia?
Pin 2 (54G) is in the Australian wiring standard the reversing light, which is a minor problem. Reversing lamps, control current to block surge brakes when reversing. This connector is replaced by the 7-pin (AS 2513), but can be found on older vehicles. Note that pins 1 and 4 missing.
Are there different ISO standards for trailer connectors?
Notice: There was a predecessor to this connector with 13 pins that on a cursory glance is identical to the 15 pin connector but has a different arrangement of the pins. It was not very common but may exist on some vehicles and can result in an unpleasant surprise. Physical design according to standard ISO 7638-1.
What are the missing pins on a trailer?
Note that pins 1 and 4 missing. Pin placement is identical to the 7-pin ISO 1724 with the absence of these pins. This means that you can connect a trailer with a 5-pin connector to a 7-pin socket or the other way around, but since the pins are wired in a different way the result may be far from what was expected.
