Which wire is the exciter wire on alternator?

The wire is connected to the “L” terminal of the alternator. The exciter wire is used to turn on the voltage regulator. This wire, when unplugged, should have approx. 12.5 volts with the key on.

Can you wire alternator directly to battery?

Attach a cable directly from the alternator output post to the positive side of the battery. This allows for full output from the alternator to the battery when heavy electrical demands are placed on the alternator.

What are the two wires on a alternator?

The two wires connected to the alternators are the positive and negative cables. When connecting our alternators use Fig 2 to properly connect these alternators. A jumper wire is supplied to connect the alternator (S) terminal to the (B+) terminal.

How do you wire a one wire alternator?

How to Install a 1-Wire GM Alternator

1. Disconnect the negative battery cable at the battery.
2. Mount the alternator to the engine.
3. Follow the battery positive cable from the battery to where it is connected on the starter relay.
4. Reconnect the negative battery cable to the battery.

Which battery cable goes to the alternator?

The cable connecting the battery to the starter will be the red (positive) connector, and it will be one of two branches of that connector from the battery. The other branch will go to the alternator.

How is an exciter connected to an alternator?

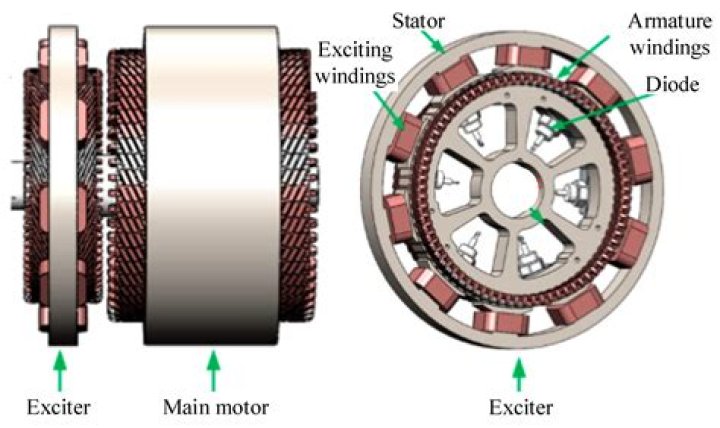

Generally, three wires are connected to an alternator, including the exciter wire. The exciter, which is a low-voltage generator that transmits DC power, sends electric current directly to the alternator.

What happens if I Disconnect the EXC wire at the alternator?

If I disconnect the EXC wire at the alternator, the ign light goes out on the switch panel. So this is telling me that no wires were crossed, etc. However, here is the weird part: With the EXC wire disconnected at the alternator, I can put a test light on the end of the wire and to the battery negative.

What kind of input does a 3 wire alternator use?

Perhaps most interesting and useful is that with a 3-wire alternator, there is “voltage sensing” input. The alternator (via internal voltage regulator) will set the alternator output voltage so that the “voltage sensing input” is at e.g. 14 volts.

How to connect an alternator to the starter relay?

1 Disconnect the negative battery cable at the battery. 2 Mount the alternator to the engine. 3 Follow the battery positive cable from the battery to where it is connected on the starter relay. 4 Reconnect the negative battery cable to the battery.

How does an alternator Exciter wiring diagram work?

Alternator Exciter Wiring Diagram – alternator exciter circuit diagram, alternator exciter wiring diagram, Every electrical arrangement is made up of various different pieces. Each part ought to be placed and linked to other parts in particular way. If not, the structure will not function as it ought to be.

Where does the regulator connect to the exciter wire?

The exciter wire is not what the regulator regulates to…it regulates to the red wire on the two pin connector. GM usually wired this small red wire to the battery cable connection on the starter, but most hot rodders just connect it to the output of the alternator (the screw terminal that the big red wire connects to).

Why does one wire alternator not excite and charge battery?

The large voltage drop will trigger the field and the magnet should help excite the unit. Might need a new regulator in it, not a lot of money. Get out your meter. Crank the engine while probing the battery posts. It should not go under ~10.5vdc at least. When the engine is at idle, 14.0 -13.8 vdc. Stop engine.

Perhaps most interesting and useful is that with a 3-wire alternator, there is “voltage sensing” input. The alternator (via internal voltage regulator) will set the alternator output voltage so that the “voltage sensing input” is at e.g. 14 volts.
