Which wire is for cooling on a thermostat?

Some of the other wires powering your thermostat include: R-wire – Power, usually red. G-wire – Fan, usually green. Y-wire – Cooling, usually yellow.

What is Y on a thermostat?

Y, Y1, Y2: Whenever your thermostat calls for cooling, the Y wire is used to send a signal to your HVAC system telling it to fire up the air conditioner. The O wire reverses the valve from heating to cooling, and the B wire switches the valve from cooling to heating.

What is the black wire for on a thermostat?

Thermostat Black Or Blue Wire (“C” Wire) C wire is connected to the transformer and completes the 24V electric circuit. Newer thermostats have a continuously looped 24V circuit; in older models, the loop is completed only when the power is required (when you turn the AC on, for example).

What kind of wire does a heat pump thermostat use?

A heat pump thermostat will use the orange wire for the reversing valve in the condenser. Many new room thermostats are digital thermostats and are considered smart thermostats. Additionally, these are simply temperature control devices that can help you reduce your energy bill and save energy.

What are the Blue wires on a thermostat called?

Blue wires are also called “C” wires because they are the Common wire. C wires are necessary for any “smart” thermostat that needs to be connected to a power source 24/7, regardless of your heat pump type. (It’s important to determine that your heat pump is compatible with your thermostat Link opens in a new tab before you decide.)

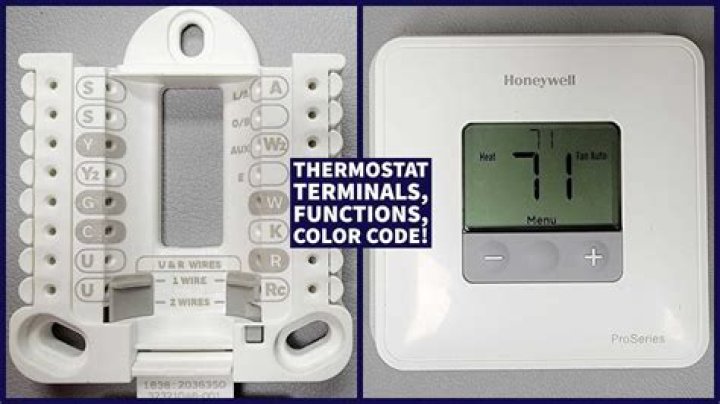

Where does the yellow wire go on a thermostat?

The yellow wires connect to the Y terminals on your thermostat. The green wire underneath your thermostat connects to the fan of your furnace or air handler. It terminates at the air handler or furnace. The green wire connects to terminal G on your thermostat. The orange thermostat wire links to your heat pump, if you have one.

What kind of wiring do you need for a Honeywell thermostat?

Lastly, always make sure you know what type of system you have before doing any wiring. That is a basic Honeywell thermostat wiring diagram for a single-stage heat pump. If you have a two-stage heat pump, then you will also utilize terminal Y2 for the second stage.

A heat pump thermostat will use the orange wire for the reversing valve in the condenser. Many new room thermostats are digital thermostats and are considered smart thermostats. Additionally, these are simply temperature control devices that can help you reduce your energy bill and save energy.

Do You need A C wire for a smart thermostat?

For programmable thermostats and smart thermostats, c-wires are essential for setting a schedule or having your heat or air conditioner turn on at a desired temperature. While some units can run without a c-wire, even brands like Nest recommend having one for optimal function.

Is the Honeywell home round heat / cool thermostat programmable?

The Honeywell Home Round Heat/Cool Thermostat offers time-tested, precise temperature control in a simple, mercury-free thermostat. It has non-programmable mechanical operation in a traditional circular housing. You will need Adobe® Acrobat® Reader to view PDF documents.

Can a cool thermostat be used with electric heat?

The thermostat can be used with electric heat but not with 2 stage systems. Yes you can. Only 2 or 3 wires will be used leaving others unused. Set sliding switch to heat. It may be located at the top or bottom of the thermostat. Have an old T87F 2873 3 that needs replacing.
