Where is the transmission modulator valve?

intake manifold

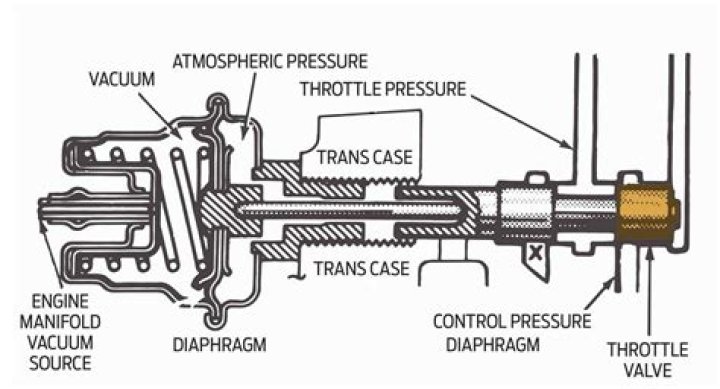

The modulator valve is attached to the intake manifold with a vacuum line. It senses intake manifold vacuum and shifts the transmission accordingly: When you press down on the gas pedal, the throttle plate opens and the vacuum is reduced. The modulator valve will cause the transmission to downshift.

Where is the vacuum modulator located?

The vacuum modulator is on the passenger side of the truck on the rear of the transmission just forward of the tail shaft cover. Pull the hose off and lay it aside.

How can you tell if a modulator valve is bad?

When you have a bad modulator valve, some or all of the following symptoms will begin to manifest themselves:

1. A whistling sound (from a leaking diaphragm)
2. White smoke coming out of the exhaust (from a leaking diaphragm)
3. Early or late shifting.
4. Hard shifts (usually causing the car to jerk)
5. A rough idle.

How much does a modulator valve cost?

Depending on the make and model of your vehicle, the cost of the replacement modulator will be around $30 to $80. The labor costs should only be about $50 to $80 because it doesn’t take that long to replace it.

What does a vacuum modulator do in a automatic transmission?

Vacuum Modulator is an engine load sensing device that converts engine vacuum into a transmission valve body input.

Can a vacuum leak affect the transmission?

The transmission can be controlled. A vacuum leak will cause the engine performance to suffer, causing load and throttle position issues which could affect transmission shifting.

How do you check a transmission modulator?

Testing the Modulator

1. Block the rear wheels.
2. Locate the vacuum modulator on the passenger side rear of the transmission.
3. Pull the vacuum hose off the modulator and install the vacuum pump.
4. Look for any transmission fluid running out of the vacuum port on the modulator, indicating a broken diaphragm.

Can a vacuum leak cause transmission problems?

How do you test a vacuum modulator on a transmission?

What is the function of a transmission modulator?

Transmission modulators act as a vacuum kickdown valve which is used by vacuum pressure inside the intake manifold, so that a kickdown cable (throttle valve) is not needed.

How does the modulator valve work in a car?

It senses intake manifold vacuum and shifts the transmission accordingly: When you press down on the gas pedal, the throttle plate opens, and vacuum is reduced. The modulator valve will cause the transmission to downshift. If you have been accelerating, and lift off the gas pedal, the throttle plate will close.

What are the symptoms of a bad transmission modulator valve?

The modulator valve function is to cater to the smooth functioning of shifting gears in your vehicle. It is, hence, necessary to be aware of the symptoms that point towards a bad transmission modulator valve. The four most easily recognizable symptoms of a bad modulator valve are given below:

What should I do if my modulator valve fails?

Newer transmissions usually don’t use them, but they are common in older transmissions. Here, you’ll learn about how modulator valves work and what to do when your modulator valve fails.
