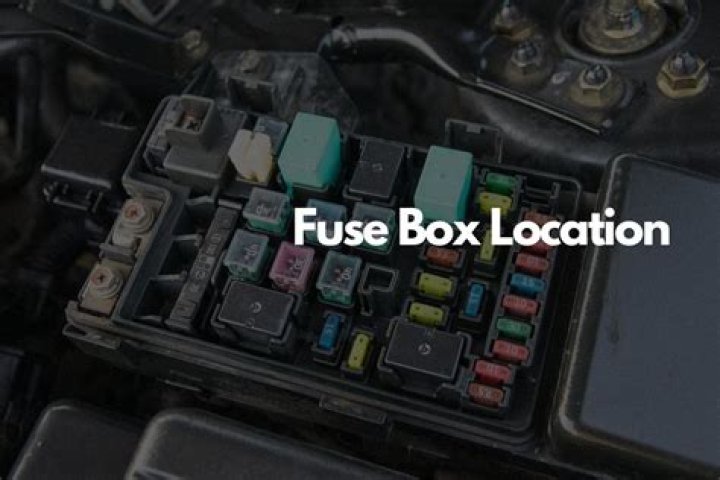

Where is the fuse box on an RV?

This will be covered by a piece of plastic, behind which you will find a series of breakers and fuses. In many RVs, this will be found inside an RV on a wall near the floor. Some RVs have breaker panels under the refrigerator, under the bed, or under a pantry or cabinet. Others hide the panel away inside of a cabinet.

Where is 12V fuse panel on safari Zanzibar?

Now before I share my issue, please know that myself and three technicians spent nearly an hour looking for the 12V fuse panel for the chassis, running lights, turn signals etc. We have a 2000 Safari Zanzibar on a Magnum chassis. We took our coach in for repairs.

Where is the fuse box located on a GMC Safari?

PRNDL/ Odometer, TCC Enable and PWM Solenoid, Shift A and Shift B Solenoids, 3-2 Downshift Solenoid, Instrument Panel Cluster, VCM Module The underhood electrical center is located toward the rear of the engine compartment on the driver’s side.

Do you have to reset a fuse on an RV?

Fuses are not like breakers, meaning once they blow they have to be replaced. There is no resetting fuses on an RV distribution panel. If a fuse is bad it will appear burnt a little on the inside of it. However, you can test for a bad fuse to verify that is the problem.

When to test fuses on RV distribution panel?

When working with an RV distribution panel make sure that all power coming into the panel is disconnected and you are wearing the proper safety goggles. The only time power should be on when working on the panel is to test and read power levels. When reading power levels of fuses, verify each one has 12 volts of current.

What to do if your RV Fuse goes bad?

Place a 12-volt meter at the bare metal section on the top of the fuse. If it is not lighting up, it is a bad fuse. Newer RV distribution panel models will have lights underneath the fuses and if the light is on, it is indicating the fuse has gone bad.
