Your condenser coils sit directly behind the condenser “fins”—the thin metal wiring that covers your outdoor AC unit (see the picture above). As refrigerant travels to your outdoor unit, it fills the many condenser coils, increasing its surface area so that heat escapes faster.

Where is the condenser coil on my air conditioner?

Your condenser coils sit directly behind the condenser “fins”—the thin metal wiring that covers your outdoor AC unit (see the picture above). As refrigerant travels to your outdoor unit, it fills the many condenser coils, increasing its surface area so that heat escapes faster.

How do I know if my condenser coil is bad?

1. Air coming from the vents is warm.
2. Air conditioner starts and stops frequently but doesn’t properly cool your home.
3. Air conditioner does not turn on.
4. Refrigerant leak near the indoor cooling system components.
5. Unusual noises from the cooling system, such as banging or hissing.

Is condenser coil inside or outside?

Your air conditioner’s condenser coil is contained in the large, square unit outside your house and is called the “condenser unit”. Evaporator and condenser coils work together to cool your home.

Where is condenser located?

Your air conditioner’s condenser is contained in the large, square unit outside your house. Although the whole unit is called the “condenser unit,” it actually contains multiple components, including the condenser tubes and fins, the compressor, a fan and copper tubing, as well as valves and switches.

Where is the a coil located?

An evaporator coil is the part of an air conditioner or heat pump that absorbs the heat from the air in your house. It is located inside the air handler or attached to the furnace.

How much does it cost to replace a condenser coil?

The condenser coil usually costs about $400 to $1,200 to replace. Most HVAC pros charge in the range of $50 to $150 per hour.

Can I replace just the AC condenser?

Your Condenser Unit Could Solely Be to Blame for a Broken AC Don’t lose all hope just yet though! A common question we get is if you can replace just the condenser. The short answer is yes, you can. Some technicians often do in some cases.

How do you clean AC condenser coils?

1. Inspect the Coils. Start by visually inspecting the coils for any noticeable damage. …
2. Remove Debris With a Coil Brush. …
3. Straighten the Coil Fins With a Fin Comb. …
4. Wet the Coils and Coat With Coil Cleaner. …
5. Wash Away the Coil Cleaner With Water.

How do I access the AC evaporator coils in my house?

To access the coils, remove the evaporator coil access panel. To remove the access panel, remove the metal tape that seals the panel. Next, remove the screws that secure the access panel of the evaporator coil to the air handler. You’ll notice that the evaporator coil is organized into a frame having two sides.

Article first time published on

What do I do if my AC isnt blowing cold air?

Try cleaning your air conditioner’s filter and the coils to see if improving the airflow fixes the problem. If there is ice buildup, you’ll need to run the unit with just the fan in order to melt it off. If that doesn’t get the unit blowing cold air again, it could be refrigerant levels are low (see below).

Is it OK to spray water on your air conditioner while running?

Does spraying water on my air conditioner help it run more efficiently? … Spraying water on your air conditioner can help it run more efficiently if you remove enough dust, dirt and debris to help improve airflow and prevent it from overheating. It’s certainly not going to damage your AC unit to do so.

How do you tell if your a coil is clogged?

1. Air Conditioning Loses Cooling Capacity. One thing that will be noticeable when the evaporator coil is dirty is that your AC won’t produce air that’s as cold as it should be. …
2. Air Conditioning Runs Longer. …
3. Coil Develops Frost During Operation. …
4. Have an HVAC Professional Clean Your Coils.

What is the A coil in an air conditioner?

The evaporator coil is the component in your AC system that absorbs the heat from the air inside your home. It is often either attached to your furnace or located on the inside of your air handler. It works with a condenser coil to complete the heat exchange process that produces cool air.

What causes AC condenser to leak?

Perhaps the most common cause of a condenser coil leaking is the fact that the condenser is probably packed with dust, dirt, and debris. … Even trace amounts of fluoride in household water can cause the coil to become corroded over time.

What does a dirty condenser coil cause?

With a dirty condenser, the condenser will reject enough heat at the elevated delta T to keep the system running; however, the system will run inefficiently because of the higher condensing temperature and pressure, causing high compression ratios.

How much is a new AC coil?

Coil CapacityPart OnlyInstallation Cost1.5-2.0 ton$575 – $800$475 – $6502.5 ton$625 – $975$535 – $7503.0 ton$735 – $1,055$600 – $8353.5 ton$775 – $1,025$775 – $985

How long does an AC condenser last?

Though the lifespan of a home air conditioner varies based on many factors, those that are well-maintained should last 10 to 15 years.

How much is a new coil for AC unit?

Residential AC Evaporator Coil Replacement Cost Replacing a home air conditioner’s evaporator coil costs $1,000 on average with a typical range of $600 to $2,000. About 40% of the bill comes from labor, or $400 to $1,000. Warranties range from five to 12 years and cover the price of materials.

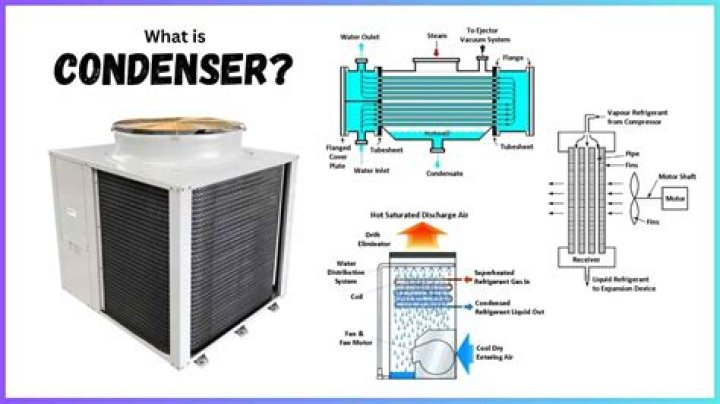

What is condenser coil?

The Role of the Condenser Coil The condenser coil is also made of copper and holds the refrigerant in its liquid form. The compressor increases pressure on the gas. This causes the gas to condense into a liquid state. As the refrigerant changes into its liquid state, the refrigerant releases the heat that it contains.

Can I spray water on my AC condenser?

The good news is that you absolutely can spray water on your air conditioner if it needs a cleaning, and nothing bad will happen. Spraying water on your AC’s condenser also helps it run more efficiently. In fact, your condenser needs a regular spritzing in order to keep doing a good job.

How often should AC coils be cleaned?

Without proper AC maintenance, the summertime heat will get the best of you. Keep your system working efficiently by cleaning the air conditioner coils at least once a year and following preventative measures to keep them clean during use.

Where are the evaporator coils located?

Inside the home, the evaporator coil, sometimes referred to as the cooling coil, is located on the air intake side of the fan coil or the outlet side of the furnace. Its job is to remove heat from indoor air so the blower fan can return cool, refreshing air to the home.

How much is a new outdoor AC unit?

Outdoor AC Unit TonnageHeat Pump AC Unit Cost 14 SEERElectric AC Unit Cost 14 SEER5 Ton AC Unit Replacement Cost$4,000$3,800

Why is my outside AC unit not working?

Problem: Either no power is getting to the outdoor unit or you have a defective compressor contactor. The contractor’s job is to send power to the compressor and fan motor. There could be other issues, but these are the common ones. Solution: Check the circuit breaker box.

How do you clean an evaporator coil without removing it?

Use a compressed air canister. One of the best ways to get the dirt and other debris out is to use compressed air. Blow the air into the coil to loosen the dirt. If there’s stubborn dirt, though, you might need to put the nozzle close to the bottom of the debris, along its side.

How do I know if my evaporator coil is frozen?

1. Your AC is not cooling.
2. Ice is present around the outdoor refrigerant line.
3. Your evaporator coil has condensation and/or ice forming on it.
4. The condensate drain line is clogged.
5. The condensate drain pan is overflowing.

Why is my air conditioner not cooling my house below 80 degrees?

Change the Filter If your filter is loaded with dust and dirt, it could be causing your air conditioner to not run effectively. If you haven’t changed your filter lately, now might be the time to do so. Filters keep dust and other contaminants from building up in your air conditioner.

Can I use vinegar to clean AC coils?

Yes, vinegar mixed with water is often used to clean AC coils at home. However, vinegar is usually effective only against lighter dirt build-ups. Nevertheless, you can keep your coils in good shape by mixing white vinegar and water in a spray bottle and spraying the mixture onto the coils.

How long before I can turn on AC after coil cleaning?

Time to Turn on Your A/C The air coming out of the top of the unit should feel warm, as warm air is being removed from your home by the system. Step 3: Let the system run for 10 – 15 minutes or more, until you can feel the indoor temperature cooling off in all parts of the home.

How often should you clean your outside AC unit?

How Often Should You Clean the Outside Unit of AC System? For most homeowners twice yearly is sufficient, once before the summer season sets in and you’ll be cooling your home, and once during fall before cold temperatures set in and it’s time to switch to heat mode.
