Inside the home, the evaporator coil, sometimes referred to as the cooling coil, is located on the air intake side of the fan coil or the outlet side of the furnace. Its job is to remove heat from indoor air so the blower fan can return cool, refreshing air to the home.

Where is the evaporator coil on my air conditioner?

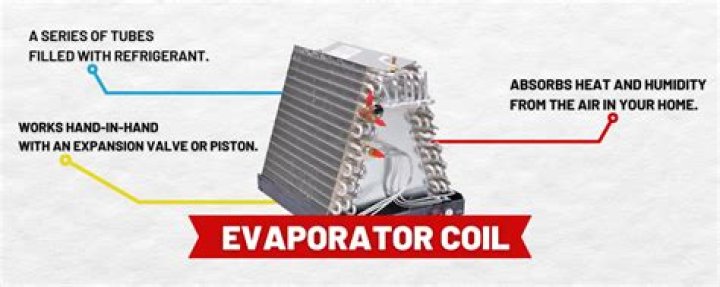

What Is an Evaporator Coil? An air conditioner’s evaporator coil, also called the evaporator core, is the part of the system where the refrigerant absorbs heat. That is, it’s where the cold air comes from. The evaporator coil is located inside or near the air handler where the blower fan is.

How do I access the AC evaporator coils in my house?

To access the coils, remove the evaporator coil access panel. To remove the access panel, remove the metal tape that seals the panel. Next, remove the screws that secure the access panel of the evaporator coil to the air handler. You’ll notice that the evaporator coil is organized into a frame having two sides.

Is the evaporator coil inside or outside?

An evaporator coil is the part of an air conditioner or heat pump that absorbs the heat from the air in your house. It is located inside the air handler or attached to the furnace.

Is the evaporator coil in the air handler?

The evaporator coil is the component in your AC system that absorbs the heat from the air inside your home. It is often either attached to your furnace or located on the inside of your air handler. It works with a condenser coil to complete the heat exchange process that produces cool air.

How do you fix a frozen evaporator coil?

Give the Frozen Evaporator Coils Time to Thaw Left to its own devices, it could take up to 24 hours for the coils to thaw completely. You can speed this process up somewhat with the help of a hair dryer, especially if you need your A/C unit up and running as soon as possible.

How can you tell if an evaporator coil is bad?

1. Air coming from the vents is warm.
2. Air conditioner starts and stops frequently but doesn’t properly cool your home.
3. Air conditioner does not turn on.
4. Refrigerant leak near the indoor cooling system components.
5. Unusual noises from the cooling system, such as banging or hissing.

Where are condenser coils?

Condenser coils are located on the back of the fridge or across the bottom. These coils cool and condense the refrigerant. When the coils are clogged with dirt and dust, they can’t efficiently release heat.

Where is condenser coil located?

The condenser coils are located either under the refrigerator behind the base grille, on the back of the refrigerator or on the top of the refrigerator. To minimize the possibility of electric shock, always unplug the refrigerator from the power supply before attempting any maintenance or cleaning.

What causes the evaporator coil to freeze up?

One of the most common causes of a frozen evaporator coil is lack of system airflow. … If there isn’t enough air blowing over your evaporator coil, the coil won’t have enough heat to absorb. This will cause the condensation on the coil to freeze over. Dirty air filter.

Article first time published on

How do I know if my evaporator coil is frozen?

1. Your AC is not cooling.
2. Ice is present around the outdoor refrigerant line.
3. Your evaporator coil has condensation and/or ice forming on it.
4. The condensate drain line is clogged.
5. The condensate drain pan is overflowing.

Can you access evaporator coils?

Your indoor air handling unit should have an access panel that can be removed to expose the evaporator coil. If necessary, check your AC owner’s manual to locate the access panel and evaporator coil. Turn the air conditioner off at the thermostat. Remove the screws or other fasteners to loosen the access panel.

What happens when an evaporator coil gets dirty?

An extremely dirty evaporator coil can cause your AC to breakdown completely. This happens when condensation forms on the dirt and then freezes during the AC’s operation. The buildup of frost stops the heat transfer with the air in your home, which causes the air conditioner to stop cooling air at all.

How long does it take to replace evaporator coil?

How long does it take to replace an evaporator coil? It takes around 2 to 3 hours to replace an evaporator coil.

How do you clean an evaporator coil without removing it?

Use a compressed air canister. One of the best ways to get the dirt and other debris out is to use compressed air. Blow the air into the coil to loosen the dirt. If there’s stubborn dirt, though, you might need to put the nozzle close to the bottom of the debris, along its side.

Is it worth replacing evaporator coil?

Your AC is 8+ years (or older) The efficiency of an AC unit is at its best for the first 10 to 12 years of its life. That said, if your AC is nearing 8 years old, replacing just the evaporator coil would be like putting a brand new engine into a dying car—it’s just not worth the money.

What happens when evaporator goes bad?

A broken air conditioner may be a result of a faulty AC evaporator. Symptoms include weak air, strange odors, and fluctuating temperatures.

What happens when an evaporator becomes blocked?

As a cooling coil (or evaporator coil) in an air conditioner becomes blocked with dust and debris the air flow across the coil is reduced. This reduced air flow (in cubic feet per minute or CFM) across the coil means that the cooling capability of the whole air conditioning system is reduced.

How long does it take for air conditioner coils to unfreeze?

Your AC blower motor pulls in warm air from inside your home, and blows it over the refrigerant coils that make up the evaporator. How long will it take for your AC unit to thaw? It can take up to an 1 hour or 24 hours to unfreeze your air conditioner.

How do I know if my AC is thawed?

1. Your AC system isn’t reaching the desired thermostat setting.
2. The air blasting from the air registers feels warm.
3. Your electric bill is higher than usual.
4. Water leaking around the AC.
5. Hissing or bubbling noise.
6. Condensation and moisture around the air handler.
7. AC coils are encased in ice.

Why is my air conditioner frozen inside?

Your air conditioner uses very cold refrigerant to absorb heat and moisture from the air inside your home. … But if there’s not enough warm air passing over the evaporator, the refrigerant-filled coils will continually drop in temperature. And as the moisture in the air collects on the freezing coils, ice forms.

What is the difference between an evaporator coil and a condenser coil?

Evaporator Coils vs. Condenser Coils. The evaporator coil is the part of an air-conditioning system that removes heat and moisture from indoor air to cool it. The condenser coil takes that heat and releases it outside.

How do you replace an evaporator coil?

1. Park any remaining Freon in your air compressor. …
2. Cut off compressor. …
3. Cut tubing. …
4. Remove the old evaporator coil.
5. Install new evaporator coil. …
6. Braze the lines.

Do new refrigerators have coils?

Locate the coils, which live either at the bottom of the appliance or in back of it. Older models have exposed coils mounted on the back of the refrigerator. Newer models place the coils at the bottom behind a toe space panel (like the model below) or at the back behind a rear access panel.

What is AC condenser coil?

An AC condenser coil is made up of different tubes that are filled with refrigerant liquid. In order for it to fully function, a chiller inside the coil cools the fluid and moves through the condenser tubing. … After this conversion process is done, the refrigerant then releases the heat and returns to a liquid state.

How often should you clean condenser coils?

To minimize energy usage and reduce utility costs, the A/C coils should be cleaned at least once a year. It is estimated that dirty evaporator and condenser coils can increase the energy usage of your air conditioning system by over 30 percent.

How much does an evaporator coil cost?

Residential AC Evaporator Coil Replacement Cost Replacing a home air conditioner’s evaporator coil costs $1,000 on average with a typical range of $600 to $2,000. About 40% of the bill comes from labor, or $400 to $1,000. Warranties range from five to 12 years and cover the price of materials.

Can Dirty coils cause AC to freeze?

Dirty coils can cause freezing because the layer of dirt on top of the coils can prevent them from absorbing the water fast enough. Bi-annual checkups from your local HVAC professional can keep your AC’s coils clean.

Can a clogged drain cause AC to freeze?

A Clogged Line Will Freeze Your AC System A clogged condensate drain line will trap water in your air conditioner. As a result, the evaporator coil will eventually turn to ice. The moisture in the drain line can also freeze, which will cause your air conditioner to turn off.

What do I do if my AC isnt blowing cold air?

Try cleaning your air conditioner’s filter and the coils to see if improving the airflow fixes the problem. If there is ice buildup, you’ll need to run the unit with just the fan in order to melt it off. If that doesn’t get the unit blowing cold air again, it could be refrigerant levels are low (see below).

How do you test an evaporator coil?

Evaporator Coil Leak Search Cut or locate an opening in the condensation drain that is below the coil. Place your leak detector into the drain pipe and monitor for 10 minutes. Since refrigerant is heavier than air, it will migrate down the pipe and the leak will be detected. Remember to check twice.
