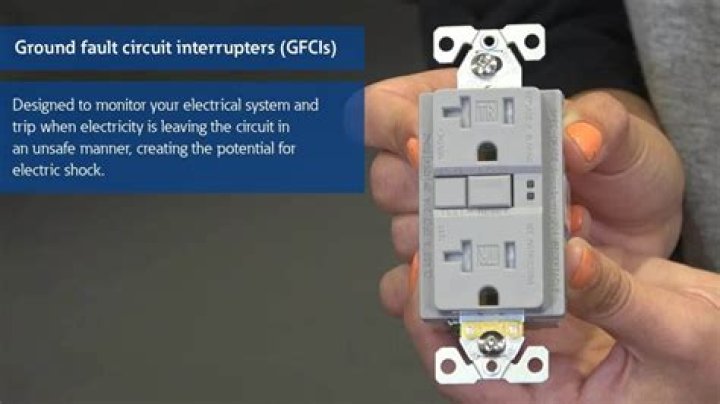

When the amount going differs from the amount returning by approximately 5 milliamperes, the GFCI interrupts the current. The GFCI is rated to trip quickly enough to prevent an electrical incident. If it is properly installed and maintained, this will happen as soon as the faulty tool is plugged in.

What causes a GFCI to stop the flow of electrical current?

When a GFCI “trips” it is working as designed. If the GFCI’s internal current transformer senses more than a 4-5 milliamp loss, it instantly shuts down the outlet and any outlets it feeds to prevent accidental electrocution.

At what current will a ground fault circuit interrupter trip?

GFCI uses and maintenance The actuating energy for standard breakers and fuses far exceeds the lethal amount, but most GFCIs trip at around 6 mA. A GFCI uses a current transformer to detect the difference between the line current supplied to the load and the neutral current returning from the load.

When a ground fault interrupts is used?

A ground fault circuit interrupter (GFCI) can help prevent electrocution. If a person’s body starts to receive a shock, the GFCI senses this and cuts off the power before he/she can get injured. GFCIs are generally installed where electrical circuits may accidentally come into contact with water.

What is a ground fault interrupting receptacle?

Ground Fault Circuit Interrupter (GFCI) Outlets are special electrical receptacles that have built-in mechanisms to cut power if the outlet senses an electrical imbalance or surge, such as one that would happen if a person was getting electrocuted. … When a GFCI outlet is no longer functional, it should be replaced.

How does a GFCI breaker work?

GFCI breakers work by detecting improper electrical flow (a ground fault) and shutting down power to prevent injuries and fires. You can add this protection with GFCI outlets, but a protected breaker offers even more safety.

What causes ground fault?

Ground faults can be caused by water leaking into a breaker box, damaged wires or appliances, poorly insulated or damaged wires, or even a build-up of debris within a box. Ground faults can lead to disastrous results such as electrical shock, fire, or burns.

What causes nuisance tripping of GFCI?

There are too many appliances being protected by the GFCI. Sometimes tripping occurs when a GFCI circuit breaker is protecting multiple downstream receptacles. If several appliances are connected to the GFCI device, the cumulative effect of the appliance leakage currents may trip the GFCI.

Will a GFCI trip before a breaker?

They’ll both trip When you go to reset the receptacle, it will be dead. You will need to go down to the basement to reset the GFCI breaker, and then, the GFCI outlet will have a chance of being reset.

How do you stop a GFCI from tripping on a refrigerator?

If you want to keep the fridge on a GFCI outlet, you can try replacing the breaker in the box with a GFCI breaker. Also, if you’re dealing with a dedicated circuit that just operates the refrigerator in the kitchen, you can simply remove the GFCI outlet and replace with a standard outlet.

Article first time published on

How does a GFCI detect ground fault?

A GFCI outlet uses a built-in sensor that monitors electricity between the hot and neutral inlets. When a ground fault as low as 4 or 5 milliamps is detected, the sensor trips to cut the electrical power to the circuit.

Where should a ground fault circuit interrupter be installed?

The National Electrical Code (NEC) requires GFCI outlets in all wet or damp locations. For your home to be up to code, working GFCI outlets must be installed in your bathrooms, kitchens and laundry rooms.

Are GFI and GFCI the same?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

What is ground fault current?

A ground fault is a type of fault in which the unintentional pathway of the straying electrical current flows directly to the earth (to the ground). … Like other types of short circuits, a ground fault causes the circuit breaker to trip due to the uncontrolled flow.

When a ground fault occurs what is created around the point where the current enters the ground?

The resistance of the Earth is non-zero, so current injected into the earth at the grounding electrode produces a potential rise with respect to a distant reference point. The resulting potential rise can cause hazardous voltage, many hundreds of metres away from the actual fault location.

How is current affected by a short to ground?

If a short to ground occurs along the green path (short #1), the current will first flow through the fuse, causing the fuse to blow, opening the circuit, and stopping the flow of current before any damage is caused.

Does GFCI protect against overcurrent?

Typical GFCI outlet units do not provide any over current protection. They provide protection when the current in the HOT wire is not balanced with the current in the NEUTRAL wire to the local outlet outlet or to downstream circuits connected to the LOAD terminals of the device.

Will a GFCI receptacle trip on overcurrent?

So a GFCI receptacle outlet does not trip due to an overloaded circuit. A GFCI breaker in a panel will trip, however, because it combines both overcurrent and GFCI protection in one device—and the overcurrent protection part will cause it to trip.

How do you know if a GFCI outlet is bad?

1. Look for GFCIs in bathrooms, kitchens, basements, garages and on the home’s exterior. …
2. If the GFCI won’t reset or the button doesn’t pop out when you press the “test” button, there may be no power to the GFCI or you may have a bad GFCI.

Should a refrigerator be on a GFCI circuit?

Should a refrigerator be plugged into a GFCI outlet? A refrigerator shouldn’t be plugged into a GFCI outlet. GFCI outlets are used in areas of the home with water or moisture. These include bathrooms, basements, and kitchens.

Why does my fridge keep tripping the power?

If your refrigerator trips often, then it is likely due to the compressor. … When this happens, it is typically due to a grounding issue with the compressor that is causing the part to essentially become overloaded with electricity. Essentially, it means it is faulty and needs to be replaced.

Should a refrigerator be plugged into a GFCI?

A. That “protector outlet” you’re referring to is a GFCI, or “Ground Fault Circuit Interrupter” receptacle, and GFCI’s are required by building code in garages, kitchens, bathrooms, and on the exterior of new homes. … So freezers and refrigerators should never be plugged into GFCI’s.

Do all bathroom outlets need to be GFCI?

Bathrooms – All bathroom receptacles should have GFCI outlets installed. … Any outlets within six feet of this sink (and the dedicated washing machine outlet) should be equipped with GFCI outlets. Outside – All outlets installed outside of your home should be GFCI outlets.

How many GFCI are in a circuit?

You only need 1 GFCI outlet per circuit (assuming it’s at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel – if they were in series, you wouldn’t get the correct voltage at the other outlets when there is any type of load present.

Why does my kitchen GFCI keep tripping?

Circuit overload occurs when more amperage flows through an electric wire or circuit than it can handle. This may happen if you connect malfunctioning or defective appliances. Loose, corroded wires or connections may also be to blame. Once the GFCI outlet senses an overload, it trips or “breaks” the circuit.

Which is better GFCI or AFCI?

The AFCI should not be confused with the GFCI. The AFCI (Arc Fault Circuit Interrupter) protects against fires caused by arcing faults. … The GFCI (Ground Fault Circuit Interrupter) is designed to protect people from severe or fatal electric shocks.

Why is it important to protect an electrical system from ground faults when the current in a low level ground fault is below the current rating of the circuit?

Although ground faults do not receive the same infamy as three-phase or arcing faults, it is critical to have ground fault protection because ground faults are the most commonly seen fault type. Ground fault occurs when there is an unwanted connection between the ungrounded system conductors and ground.
