When the high limit switch opens what component of the furnace shuts down?
When the high limit switch opens what component of the furnace shuts down?

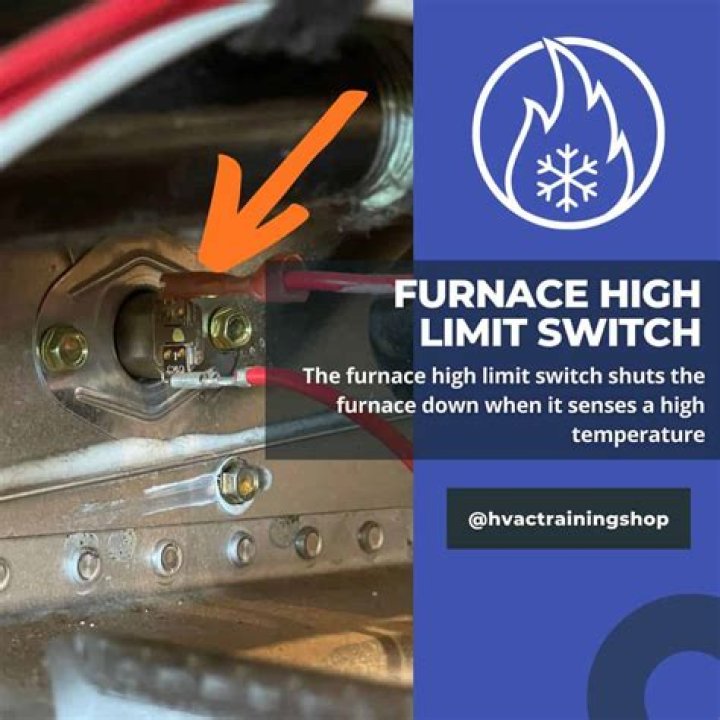

Also known as the fan limit switch or simply the limit switch, it has two functions in the furnace’s operation: It turns the fan on and off during the normal heating cycles of the furnace, and it senses heat and shuts down the furnace if the interior temperature gets too high.
Can a dirty air filter cause furnace to shut off?
Clogs May Cause the Furnace to Shut Down In the most severe cases, a dirty furnace air filter may cause damage to the internal components of the furnace. If the furnace isn’t able to turn on, this is an indicator of damage to the fan, pilot light, heat exchanger, pressure switches, gas valves, or other components.
Where is the furnace limit switch on a Hunker?
It will be located at the top of the panel. Depending on your furnace model, the switch will be surrounded by a silver or white cover. Remove the cover by lifting it upwards or pulling it off to reveal the body of the switch and two metal arms. Look at each arm to identify the settings.
How to replace limit switch on Atwood 8535?
Next you need to remove the control board. Disconnect both white connector and high-voltage wire, unscrew the nut on top and take it out (with black frame holding it).
What kind of flame limit switch do I Need?
Ordered new limit switch (Atwood 37022 Hydro Flame Limit Switch 190 Degrees, around $15 with shipping) paying attention to get one with correct limit temperature and also trying to find out with RV manufacturer (for no reason I decided to contact them, not Atwood) whether it’s possible to take sail switch out without taking the furnace unit out.
What happens if the high limit switch fails?
If the high limit switch fails then the furnace might cycle on and off and will not function properly. The limit switch can be tested before replacing. Buy limit switches online: More furnace repairs:
What does the sail switch on an Atwood furnace look like?
Sail Switch, can’t describe where it is or what it look like, but that is the symptoms of it going bad. If the sail switch was bad, it would never allow the burner to ignite. The following is from the Atwood manual, and this is assuming the blower never turns off, and the burner is igniting, then shuts off, then ignites again, over and over again:
Why is the flame on my Atwood furnace not working?
It could also be the flame proving circuit. If the flame rod is out of alignmet, or if the flame is not touching the flame rod strongly or if the flame rod is dirty you will get these symptoms. I have also found that a poor ground from the circuit board can cause this as the flame is rectified through the flame to ground.
Next you need to remove the control board. Disconnect both white connector and high-voltage wire, unscrew the nut on top and take it out (with black frame holding it).
Why is the limit switch on my furnace not working?
After reading numerous articles/forums/manuals I started troubleshooting and found out that limit switch (don’t confuse it with sail switch) is not working, therefore blocking furnace from firing up. To make sure I threw jump cable with +12V to the white wire on the control board, which did the trick, but also made thermostat glitchy.
