What are filler metals for soldering? Filler metals for soldering are 50/50 and 95/5 50/50 tin/ lead and 95/5 tin/antimony usualy in the 360F to 500F range.

When soldering or brazing the filler material is?

There are many different families of alloys that are used as filler metals for soldering; however, the one thing that all soldering filler metals have in common is an alloy melting point below 450°C (842°F). These soldering alloys include, but are not limited to lead alloys, tin alloys, and zinc alloys.

What is filler material in soldering?

Filler metals are alloys or unalloyed metals which, when heated, liquefy and melt to flow into the space between two close fitting parts, creating a brazed or soldered joint. Standard filler metals include tin, lead, silver, lead-free, cadmium-free, sil-phos, copper, aluminum, nickel, and jewelers gold. …

When soldering or brazing the filler metal is quizlet?

In brazing and soldering, a filler metal is added, whereas in solid state welding no filler metal is added. You just studied 13 terms!

What is brazing filler metal?

Filler metal is the term used in brazing to describe the alloy (or elemental metal) which forms the joint. It is placed between two (or more) components (the parent materials), and having a lower melting point than them, is melted and allowed to solidify, forming a joint within a brazing assembly.

What is the difference between brazing and soldering?

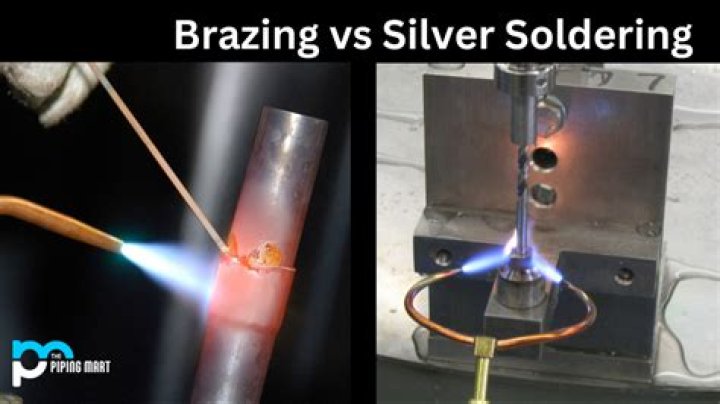

The only difference between brazing and soldering is the temperature at which each process takes place. Soldering takes place at a temperature below 840°F (450°C), and brazing occurs at a temperature above 840°F (450°C).

What is brazing and soldering process?

Brazing joins two metals by heating and melting a filler (alloy) that bonds to the two pieces of metal and joins them. … Soldering is a low-temperature analog to brazing. By the American Welding Society’s definition, soldering takes place with fillers (also known as solders) that melt at below 840°F (450°C).

How does the soldering and brazing processes differs from the welding process?

Welding, brazing and soldering are all methods for joining two or more pieces of material – primarily metals. The key difference among these processes is the temperature used to create the joint. … Welding may or may not involve the use of filler metals or shielding gases.

Which of the following is an advantage of soldering or brazing?

Answer. Advantages of soldering include (1) lower heat energy required than brazing or welding, (2) various heating methods available, (3) good electrical and thermal conductivity of the joint, (4) capable of making air-tight and liquid-tight joints, and (5) ease of repair and rework.

What is brazing filler rod made of?

The “welding” of cast iron is usually a brazing operation, with a filler rod made chiefly of nickel being used although true welding with cast iron rods is also available.

Article first time published on

What is the brazing process?

brazing, process for joining two pieces of metal that involves the application of heat and the addition of a filler metal. This filler metal, which has a lower melting point than the metals to be joined, is either pre-placed or fed into the joint as the parts are heated.

What is filler metal used for?

Filler metal refers to any material used to join two pieces of metal during welding or soldering. As the two objects are held together, filler metal is melted between the two to create a bridge. After the filler dries, it combines with the objects on either side to create a permanent bond.

What is filler metal classification?

A filler metal classification provides details about a product’s characteristics and usability, including the type of filler metal, allowable welding positions, tensile strength, shielding gas (if needed), and chemistry/composition.

What is a brazing flux?

Flux is a chemical compound applied to the joint surfaces before brazing. Its use, with a few exceptions, is crucial in the atmospheric brazing process. Heating a metal surface accelerates the formation of oxides, the result of chemical combination between the hot metal and oxygen in the air.

What soldering means?

Soldering is a joining process used to join different types of metals together by melting solder. Solder is a metal alloy usually made of tin and lead which is melted using a hot iron. The iron is heated to temperatures above 600 degrees fahrenheit which then cools to create a strong electrical bond.

What are the two most commonly used brazing filler metals?

A brazing filler begins with one of several common primary metals: silver, aluminum, gold, copper, cobalt or nickel. These primary metals are then mixed, or alloyed, with other metals to improve or tweak their properties.

Is brazing a special process?

Brazing processes are widely used to manufacture many products from simple to complex. … Specification of quality requirements for brazing processes is important because the quality of these processes cannot be readily verified. Therefore, they are considered to be special processes as noted by ISO 9000.

What is the role of flux in brazing and soldering?

A fluxing agent (or a controlled atmosphere as found in furnace brazing) is required for all brazing and soldering applications. The purpose of the flux is to remove oxides from the base material and to prevent oxidation during the heating process, thus promoting the free flow of the brazing filler metal.

What is the purpose of flux when soldering?

The main purpose of the flux is to prepare the metal surfaces for soldering by cleaning and removing any oxides and impurities. Oxides are formed when metal is exposed to air and may prevent the formation of good solder joints.

When should you braze?

Types of materials. Brazing holds a significant advantage when joining dissimilar metals. These can form a strong joint with minimal alteration of basemetal properties, provided the filler material is metallurgically compatible with both base metals and has a melting point lower than the two.

What is the difference between brazing and braze welding?

Many times, braze welding is confused with brazing; however, both these techniques differ in many ways. In the brazing process, the filler metal is filled into the tight-fitting joint through capillary action; however, in braze welding, the filler metal is deposited in many ways other than capillary action.

What is brazing flux made of?

Fluxes for silver brazing are typically composed of potassium salts or fluorides and borates in a water base. Several flux types are available to cover all possible base metals and/or conditions during brazing.

How do you choose filler metal for brazing?

1. The base metals being joined.
2. The brazing process to be used.
3. The brazing temperature.
4. How the braze filler metal is applied to the joint.
5. The design of the joint.
6. What form the braze filler is available in.
7. The environment and service of the joint.

How do you braze metal step by step?

1. GOOD FIT AND PROPER CLEARANCE. The best clearance between the two metal parts being brazed is a close one – usually . …
2. CLEANING THE METALS. …
3. FLUXING THE PARTS. …
4. ASSEMBLE FOR BRAZING. …
5. BRAZING THE ASSEMBLY. …
6. CLEANING THE BRAZED JOINT.

Where is brazing used?

Brazing is used to join metal parts and can be applied to a wide array of materials, like brass, copper, stainless steel, aluminum, zinc-coated steel, and ceramics. Laser brazing offers some distinct advantages in applications that require the joining of non-similar metals.

Is there a filler for metal?

Permatex Liquid Metal Filler is a specialty adhesive which offers ideal solutions for many automotive bonding jobs. This easy-to-use filler can be drilled, filed, sanded and painted and forms a long-lasting, metal-tough bond. Works on metal, wood, and concrete and is an excellent adhesion to galvanized metal.

What is difference between filler metal and electrode?

Electrodes are used in all-electric arc welding processes. … In contrast, non-consumable electrodes are not consumed during welding, with a separate welding rod serving as the filler metal that melts and joins the metals together. For instance, non-consumable electrodes are used in TIG welding.

Why electrode is coated with flux?

The electrode is coated in a metal mixture called flux, which gives off gases as it decomposes to prevent weld contamination, introduces deoxidizers to purify the weld, causes weld-protecting slag to form, improves the arc stability, and provides alloying elements to improve the weld quality.

What is filler metal f number?

An F-Number is a standard designation given to a defined group of filler metals having similar characteristics by the ASME. ASME Section IX, Table QW-432 have classified the welding electrode/ filler metals into their F-Number grouping of all welding filler metal (Ferrous & non-ferrous types).

How are soldering and brazing methods grouped?

How are soldering and brazing methods grouped? How the heat is applied. What are the advantages of torch soldering?
