What would cause trailer brakes to lock up?

The causes of electric trailer brakes locking up are few: 1) Brake controller adjusted incorrectly for the load; 2) Brake controller failure; 3) Grease on the brake shoes; 4) Poorly adjusted brake shoes; 5) Broken brake shoe. When brakes lock up due to controller issues. it is generally both wheels that lock up.

How do you reset breakaway trailer brakes?

Expert Reply: Pushing the pin back into the breakaway switch should allow the brakes of the trailer to release. You may have to back the trailer up slightly to get the brakes to release. If you have tried that and are still having problems you may need to replace the switch with something like the part # 2005-P.

How does a trailer brake away switch work?

Your breakaway cable attaches to the brake system on your trailer and then attaches to the back of your tow vehicle. If the trailer ever becomes detached from your vehicle while towing, this cable pulls out the pin attached to the trailer brake, causing them to engage and safely stop your trailer.

How do you test a brake away switch?

Step 1- Unplug the trailer connector from the tow vehicle. Step 2- Pull the pin straight out of the breakaway switch. This will require approximately 40 pounds of pull to remove the pin. Step 3- Attempt to pull the trailer with the tow vehicle.

How does the trailer break away system work?

Locate the exterior breakaway switch & pull the black plastic pin out (you may need a pliers, but be careful no to break the pin). Slowly move the tow vehicle forward. If the trailer brakes lock up & the wheels won’t turn, YOUR BATTERY IS CHARGED and your breakaway system is working! Re-insert the pin into the switch.

What to do when your trailer brakes lock up?

Make sure the brake controller is orientated correctly, it should be flat, facing the direction of travel and should be angled within the range of -20 degrees and +70 degrees. Next, adjust the power settings on the brake controller while you are driving until you feel the brakes lock up.

How can I tell if my trailer brakes are working?

A quick way to check if the trailer brakes are working & the battery is charged: Hook up all systems to the tow vehicle. Locate the exterior breakaway switch & pull the black plastic pin out (you may need a pliers, but be careful no to break the pin). Slowly move the tow vehicle forward.

When to use manual override on trailer brakes?

It only works when I use the manual overide button but will not lock up the tires just slows down. So I cut the blue wire and when you put a test light on it and hit the pedal the light turns on real dim for a split sec then it shuts off.

What to do if your trailer brakes don’t lock up?

If the brakes do not lock up when towed with another vehicle, you should replace the brake controller in the first tow vehicle. If the problem is in only one wheel, jack the trailer up and remove the wheel and brake drum. Check for grease on the brake shoes or broken pieces of brake shoe or spring…

Locate the exterior breakaway switch & pull the black plastic pin out (you may need a pliers, but be careful no to break the pin). Slowly move the tow vehicle forward. If the trailer brakes lock up & the wheels won’t turn, YOUR BATTERY IS CHARGED and your breakaway system is working! Re-insert the pin into the switch.

It only works when I use the manual overide button but will not lock up the tires just slows down. So I cut the blue wire and when you put a test light on it and hit the pedal the light turns on real dim for a split sec then it shuts off.

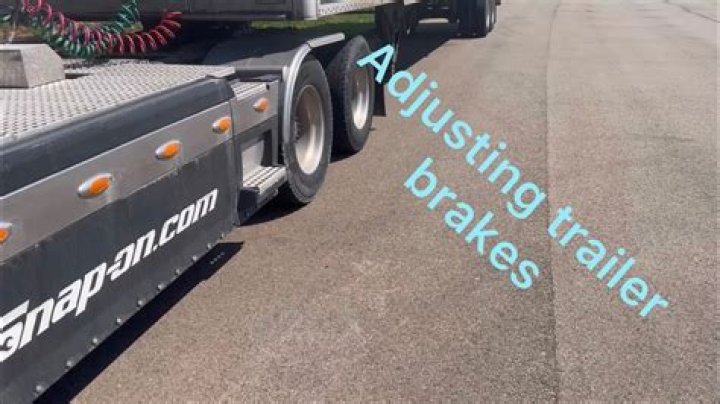

How do you adjust the brakes on a trailer?

First, I recommend making sure the brakes on your trailer are adjusted properly since they are new. When adjusting the brakes, you should adjust the brakes until the drum becomes tight and then back the teeth on the adjuster off 10 clicks. With the brakes properly adjusted, run through the set up process again on the brake controller.
