What uses a 50 amp plug?

50 Amp RVs Can Run Way More Appliances At The Same Time A 50 amp RV can run 2 air conditioners, the microwave, a washer or dryer, and a TV all at the same time with no risk for tripping the breaker.

What is the difference between 30 amps and 50 amps?

A 30 amp plug has three prongs – a 120 volt hot wire, a neutral wire and a ground wire – and is generally used on RVs with lower load requirements. A 50 amp plug has four prongs – two 120 volt hot wires, a neutral wire and a ground wire – that supply two separate 50 amp, 120 volt feeds.

Can a 30 amp outlet be used in a 50 amp RV?

RV’s rarely have any 240 volt items in them. Yet, the newer RVs have 50 amp services, which are a 120/240 volt split phase system. Before we look at the 50 amp service let’s first look at the 30 amp service A 30 amp RV service is really just a glorified 120 volt single pole outlet. Electrical outlets are labeled with a NEMA code designation.

What kind of power cord do I need for a 50 amp RV?

A 50 amp RV, on the other hand, will need a 50a female to 30a male, which can then be connected to a 30a female to 15a male. If you’re running off of 30 amp service, all you need to do is connect your cable to an extension cord (preferably one that you already know is durable and heavy-duty).

How many watts can you use on a 50 amp pole?

Keep in mind that this assumes that you can utilize both of the two 50 amp poles effectively by balancing your load. If all of your loads are on one side of the panel you’ll only be using one 50 amp pole, which means that you can only get 6,000 watts.

What’s the difference between 30 amp and 50 amp?

Whereas the 30 amp service was a 120 volt service yielding 3,600 watts of power, the 50 amp service is a 120/240 split phase service. The split phase service means you have two 120 volt 50 amp poles, which gives you a total of up to 12,000 watts.

Can a 30 amp service RV be plugged into 50 amp?

RV parks often have both 30 amp and 50 amp receptacles. However, some RV parks will only have 50 amp receptacles. If you have a 30 amp service RV, you may be concerned that you cannot find a 30 amp receptacle to plug into.

What’s the difference between 30 amp and 50 AMP plugs?

Your RV will require one or the other, and fortunately, there’s a simple way to check which type of plug your RV has: 30-amp plugs have three pins, and 50-amp plugs have four. 30-amp service is more common in smaller RVs with fewer power-hungry appliances.

Can you plug a 50 amp cord into a 30 amp pedestal?

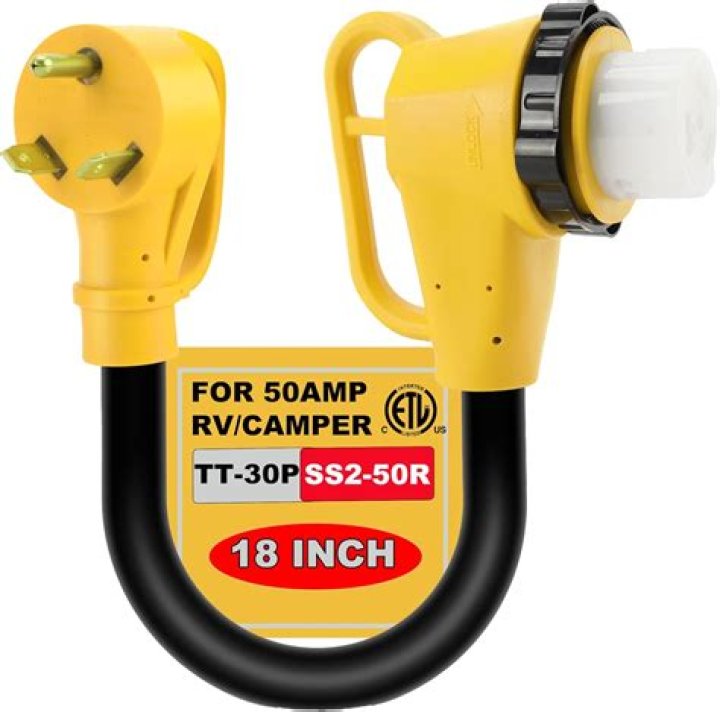

With an adapter, you can plug a 50-amp RV cord into a 30-amp power pedestal at a campground. The female end of the adapter will plug into your RV cord, and the male end will plug into the power pedestal.

Can you use a 50 amp surge protector with a 30 amp outlet?

Can I use a 50-amp surge protector with a 30-amp outlet? In this case, your RV is 50 amps and your power pedestal is 30 amps. You can use your 50-amp surge protector as long as you use the right adapter (a 50-amp to 30-amp adapter, where the 50-amp side plugs into the surge protector).
