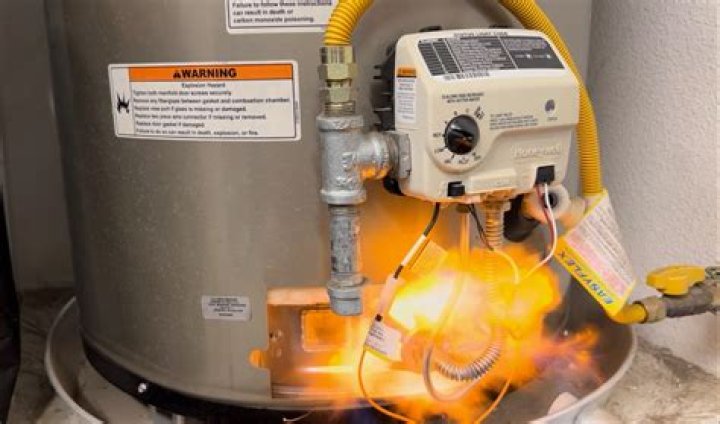

What should a hot water heater flame look like?
What should a hot water heater flame look like?
Blue – Gas burners burn blue if the ratio of fuel to air is correct. Orange – Orange flame is usually dust or dirt being burnt. Yellow – Air is not getting to the flame, this needs to be inspected immediately.
What causes a gas water heater to not light?
If the thermocouple does not detect a flame, the ignition process will stall, and the burner will not light…. The pilot ignites the water heater’s gas burner. If the pilot does not light, the water heater will not heat. Sometimes, carbon deposits can build up on the pilot and eventually create a restriction. …
Why is the pilot on my water heater not working?
The pilot ignites the water heater’s gas burner. If the pilot does not light, the water heater will not heat. Sometimes, carbon deposits can build up on the pilot and eventually create a restriction.
What to do if your water heater is not heating?
If the pilot does not light, the water heater will not heat. Sometimes, carbon deposits can build up on the pilot and eventually create a restriction. …If the pilot is restricted, try removing it and clearing it with a stiff brush and/or compressed air. If the pilot cannot be cleaned, replace it.
What to do if your RV water heater wont light?
The Eco switch wires up between the control board and the gas valve. It is also attached to the thermostat. If it gets faulty, no power will pass to the gas valve. In return, your RV water heater will not ignite. Firstly, remove one of the wires on the ECO and check its continuity with VOM. Make sure it shows you 12 volt on the meter.
Why does my water heater pilot light but not the burner?
If I understand correctly, your pilot flame is lighting correctly. But the main burner won’t turn on because the electronics in the Gas Control Valve don’t acknowledge the pilot is lit. There are two likely faults: Circuit Board in the Gas Control Valve is defective. To test for case 1, use a multimeter to measure the Thermopile output.
Why does my water heater not turn on?
But the main burner won’t turn on because the electronics in the Gas Control Valve don’t acknowledge the pilot is lit. There are two likely faults: Circuit Board in the Gas Control Valve is defective. To test for case 1, use a multimeter to measure the Thermopile output. It should be at least 350mV. Here are instructions on how to do that:
The Eco switch wires up between the control board and the gas valve. It is also attached to the thermostat. If it gets faulty, no power will pass to the gas valve. In return, your RV water heater will not ignite. Firstly, remove one of the wires on the ECO and check its continuity with VOM. Make sure it shows you 12 volt on the meter.
When does the green light come on on a water heater?
When I hit the switch to turn on the heater, the green light comes on and stays on throughout the heating and after the burner kicks off. There’s a red light that comes on if the burner doesn’t ignite or if the burner doesn’t re-ignite after it’s successfully heated the water.
