What kind of plumbing do you need for an RV?
What kind of plumbing do you need for an RV?

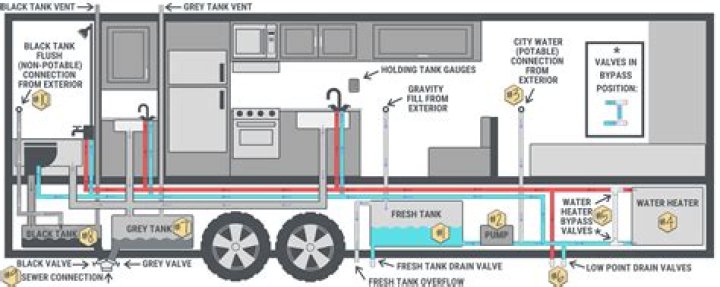

RV Plumbing isn’t that much different from a traditional house type plumbing system. However, the generic RV Plumbing diagram below will help clear up a few issues. If you find you need an actual RV Water schematic for your particular model, best to contact the manufacturer directly.
What kind of water system does an RV have?
Most factory manufactured RVs such as class A or C motorhomes as well as towable trailers are equipped with a freshwater system and disposal system that separates the discarded water down to either black water or gray water.
Where to put an accumulator tank in an RV?
Accumulator Tanks can be installed anywhere within the pressurized parts of the pipelines. If you look at the RV plumbing diagram, it can be placed anywhere on the hot (orange) or cold (blue) lines. RV water heaters are powered by propane, electricity, or both.
How big of a pressure regulator do you need for RV plumbing?
Be sure to use a Pressure Regulator on your incoming lines BEFORE the water enters your RV Plumbing system from a city/campground source. Your RV is a rolling earthquake for all those fittings! City water pressure could easily be too high for your RV’s system (40-55 lbs pressure MAX!)
RV Plumbing isn’t that much different from a traditional house type plumbing system. However, the generic RV Plumbing diagram below will help clear up a few issues. If you find you need an actual RV Water schematic for your particular model, best to contact the manufacturer directly.
Where is the plumbing vent in an RV?
The gray and black water tanks will also each have an RV plumbing vent. This vent is a pipe that runs upward, from the top of your gray and black water tanks, to vent out the roof of your RV.
Most factory manufactured RVs such as class A or C motorhomes as well as towable trailers are equipped with a freshwater system and disposal system that separates the discarded water down to either black water or gray water.
How does the water heater in an RV work?
Once the water heater tank is full, the water heater uses either propane or electricity, depending on the type of water heater, to heat the water in the tank. Now, when you turn on the hot water valve on your faucets or shower, your RV plumbing system pulls water directly from the water heater tank.
