What kind of fluid does Lippert hydraulic slideout system use?

The Lippert Hydraulic Slideout System uses automatic transmission fluid (ATF). Any ATF can be used. A full synthetic or synthetic blend works best such as Dexron III or Mercon 5. For best operation, fill system within ½” of the top when all slideouts are completely retracted. The see through reservoir makes it easy to check oil level.

What are the different types of RV slide outs?

They consist of cables and pulleys that pull the slide out and in. Cable slides are very lightweight but can support big, heavy, deep slides, and, according to the above video, are extremely reliable with some of the best service records. They don’t encounter many corrosion issues either and can be floor flush.

What should you know about the slideout room?

ALWAYS MAKE SURE THAT THE SLIDEOUT ROOM PATH IS CLEAR OF PEOPLE AND OBJECTS BEFORE AND DURING OPERATION OF THE SLIDEOUT ROOM. ALWAYS KEEP AWAY FROM THE SLIDE RAILS WHEN THE ROOM IS BEING OPERATED. THE GEAR ASSEMBLY MAY PINCH OR CATCH ON LOOSE CLOTHING CAUSING PERSONAL INJURY.

What do you need to know about electric slideout system?

1. Level the unit. 2. Verify the battery is fully charged and hooked-up to the electrical system. 3. Remove the transit bars (if so equipped). 4. Press and hold the IN/OUT switch (Fig. 1B) in the OUT position until the room is fully extended and stops moving. 5. Release the switch, which will lock the room into position.

The Lippert Hydraulic Slideout System uses automatic transmission fluid (ATF). Any ATF can be used. A full synthetic or synthetic blend works best such as Dexron III or Mercon 5. For best operation, fill system within ½” of the top when all slideouts are completely retracted. The see through reservoir makes it easy to check oil level.

What do you need to know about a slideout system?

After servicing the slideout system in any way, be sure to check the following: 1. Slideout stops are installed and adjusted properly. 2. Head assemblies are installed and adjusted properly. 3. System is mounted properly. 4. Cross shafts are mounted properly and clear all other components.

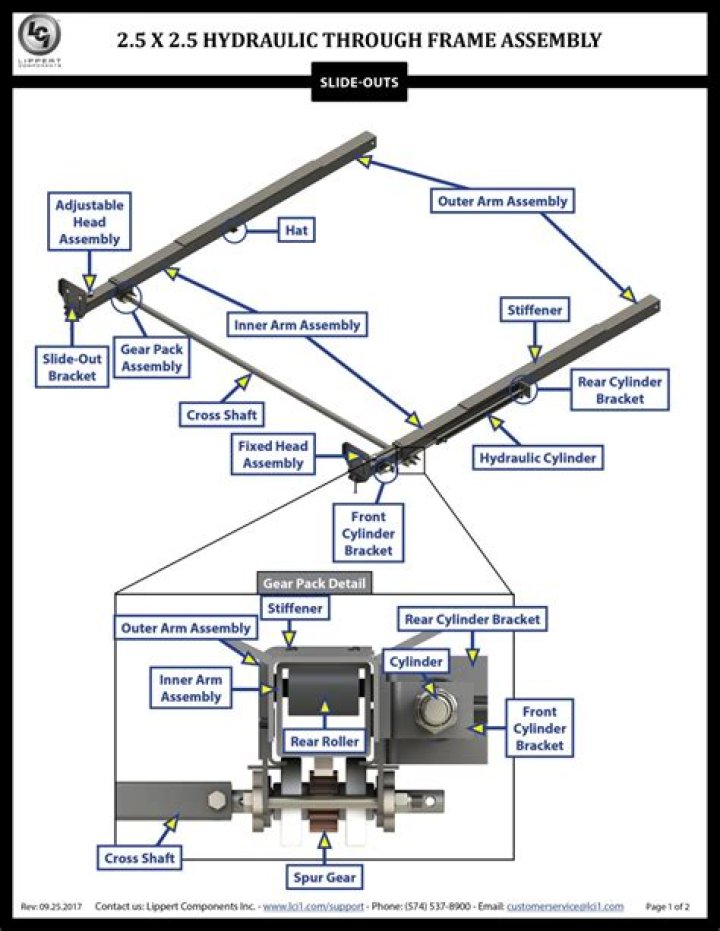

What is a hydraulic through frame slideout system?

Rev: 07.09

What happens if you fail to act on a Lippert through frame slideout?

Failure to act in accordance with the following may result in death, serious injury, coach or property damage. The Lippert Hydraulic Through Frame Slideout System is intended for the sole purpose of extending and retracting the slideout room. Its function should not be used for any other purpose or reason than to actuate the slideout room.

Are there any problems with the hydraulic system in an RV?

A couple of common problems with an RV hydraulic system that controls leveling jacks and some slides can be resolved with this simple fix. You will find both of these symptoms asked about fairly often online. Note: This issue seems to be common on 5th wheels with hydraulic leveling systems.

Why does my 5th wheel hydraulic system slow down?

Note: This issue seems to be common on 5th wheels with hydraulic leveling systems. We’re not sure about other types of RVs. One symptom is very slow or sluggish system (jacks and slides). Sometimes it will start out fine then slow down to a crawl and possibly stop.

How do you test hydraulic system in RV?

This is all of our wiring, which includes the new breaker, battery monitor shunt, bus bars, full battery cut-off, and inverter wiring. Once everything is connected and secured, reconnect the battery (positive then negative), and test the hydraulic system (slides or jacks).

What are the guidelines for hydraulic through frame slideout?

Prior to operating the Lippert Hydraulic Through Frame Slideout System, follow these guidelines: 1. Coach should be parked on the most level surface available. 2. Leveling or stabilizing system should be actuated to ensure coach will not move during operation of slideout system. 3. Be sure battery is fully charged.
