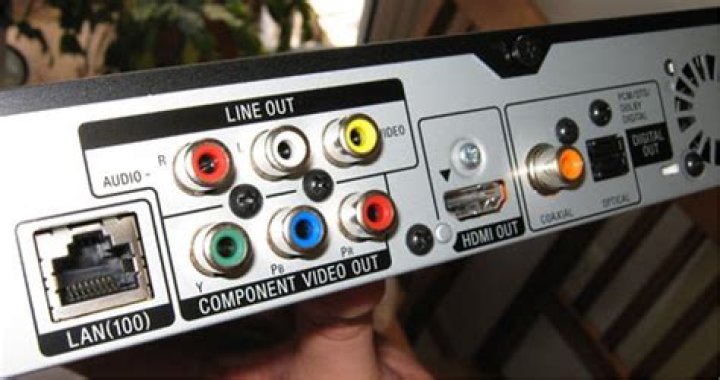

What kind of cable do I need to connect my DVD player to my TV?

If you have an HDMI connector, that will give you the best picture and sound. Depending on your setup, you may need to use a composite cable instead, which is the one with the red, white, and yellow plugs on each end. Whichever cable you use, plug one end into the DVD player, and the other into the corresponding port in the TV.

How can I get my DVD player to work with my TV?

Once you have turned everything on and set the TV channel to view the DVD player output, refer to the user manual to change the language display on the DVD home screen, if necessary. If your DVD player has a clock, check that the clock is set correctly.

How do I connect my HDMI cable to my TV?

Connect one end of the HDMI cable to the DVD Recorder connector labeled HDMI, Output, Monitor or TV and the other end to any Input HDMI connector on the Receiver. Connect one end of the HDMI cable to the Receiver connector labeled HDMI, Output, Monitor or TV and the other end to any Input HDMI connector on the TV.

What to look for in a wiring diagram for a motorhome?

There are two things which are going to be found in any Tiffin Motorhome Wiring Diagram. The first component is emblem that indicate electric element from the circuit. A circuit is generally composed by several components. Another thing you will come across a circuit diagram could be lines.

How do you connect a DVD player to a power source?

Connect your DVD player to a power source. Plug the DVD player’s power cable into an electrical outlet, be it a wall socket or a surge protector. If the DVD player’s cable is detached from the player itself, you’ll need to attach the cable to the back of the DVD player as well.

What kind of cable do I need to hook up a DVD player to my TV?

S-video doesn’t carry sound, so you’ll need the red and white cables from the RCA cable set if you’re hooking up a DVD player or VCR. Check the outputs on your DVD player, VCR, and cable box. The options that you have for connecting your items to your TV will determine the type of connection that you use:

What kind of diagram do I need to troubleshoot my TV?

Here is a Hisense LCD TV Circuit Diagram as an example. When troubleshooting your TV you will need to use schematics and diagrams to find the problem. Note: If your TV has power issues, consider replacing the POWER SUPPLY BOARD. If your TV has Lines across the screen and the screen is not cracked, consider replacing the T-Con Board.

How do you add a component to a wiring diagram?

Select the components below to add them to the diagram. Click the buttons at the top to add Audio/Video components to the diagram. Click or to add or remove outputs from a component. Use the first drop down list on each component to connect to a different component. Use the second drop down list to change the type of wire.
