On the left side, the yellow wire carries left turn and brake lights and the brown wire again carries the running lights. With only 2 wires, these lights must ground through the mounting studs. Make sure to wire in the new lights by function to the existing trailer wiring and not by color.
What is the blue wire on trailer?
It is an auxiliary wire typically used to connect the reverse lights from the tow vehicle to the reverse lockout solenoid located directly behind a surge brake actuator. When properly connected it allows you to disengage the trailer brakes in order to back the trailer up (without getting out of the vehicle).
What are the 3 wires on trailer lights?
The One LED RV Passenger Tail Light # RVSTL0060 has three wires, the white wire is the ground, the black wire is the taillight and the green wire is for your stop lights and turn signals. To hook up your lights you will need to splice together the taillight and stop/turn wires.
What is the blue wire on a 7-way trailer plug?
The additional blue wire is tapped into the reverse lights on the vehicle to disengage the hydraulic trailer coupler (actuator) when the vehicle is reversing, thus turning off the trailer’s brakes. I am including a picture of a 7-Way trailer connector that will show the terminals and their function.
What is the red wire on trailer lights?
The red wire is the turn signal wire and will be run to the green wire of your harness if its the right turn signal side, and the black wire will run to the brown wire of your harness. The yellow wire from your harness will run to the left turn signal red wire.
What is the brown wire on trailer lights?
What is the color code for trailer wiring? Green is the right turn signal and right brake light. Yellow is the left turn signal and left brake light. Brown is the taillights.
Where does the Red Wire go on a trailer light?
Expert Reply: The red wire is the turn signal wire and will be run to the green wire of your harness if its the right turn signal side, and the black wire will run to the brown wire of your harness. The yellow wire from your harness will run to the left turn signal red wire.
When did live wire change from yellow to black?
The 2004 changes also saw three-phase live wires change colours. A black live wire can be found as line 2 in three-phase wiring. It replaced a yellow live wire which was the standard line 2 colour prior to 2004. The grey live wire is line 3 in three-phase wiring.
What are the new colours of electrical wire?
To harmonise wire colours, 2-core cable changed from live red to live brown, neutral black to neutral blue and earth remaining bare or green/yellow. 3-core cable was changed from red live to brown live, neutral blue to neutral grey, additional from yellow to black with earth bare or green/yellow. Before this change, old wiring colours in …
What’s the difference between yellow and blue wires?
Yellow wires are used as switch legs to ceiling fans, structural lights, and outlets paired with light switches, while blue wires are usually used as travelers for three-or-four-way switches. The colors white and gray indicate a neutral wire. That means it connects to an electrical panel’s neutral bus bar.
Where does the Red Wire go on a trailer?
The red wire is the turn signal wire and will be run to the green wire of your harness if its the right turn signal side, and the black wire will run to the brown wire of your harness. The yellow wire from your harness will run to the left turn signal red wire. What is a 5 pin trailer connector?
What are the different colors of trailer wiring?

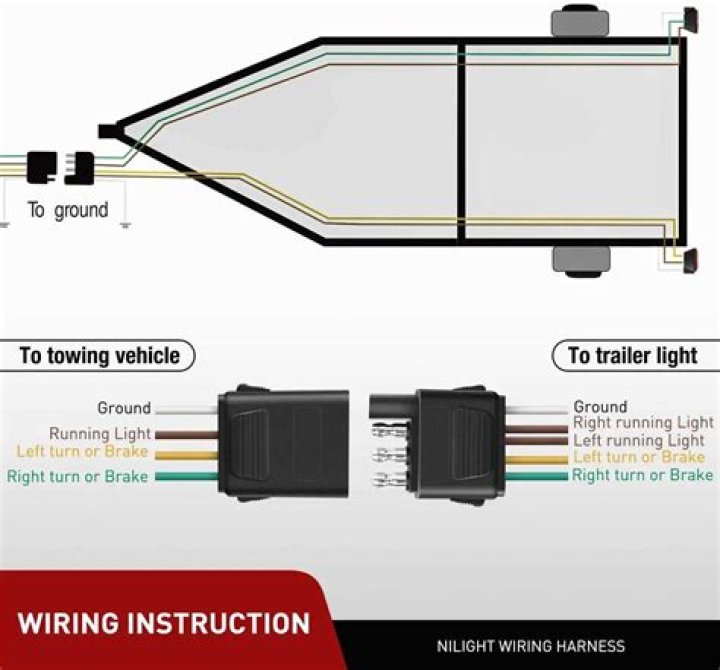

Trailer Wiring Has 5-Wires White, Yellow, Green, Yellow/Brown, and Green/Brown. On a 4-Way flat trailer wiring harness, white is the ground, brown is running lights, yellow is left turn signal and green is right turn signal. What is blue wire on trailer lights?
