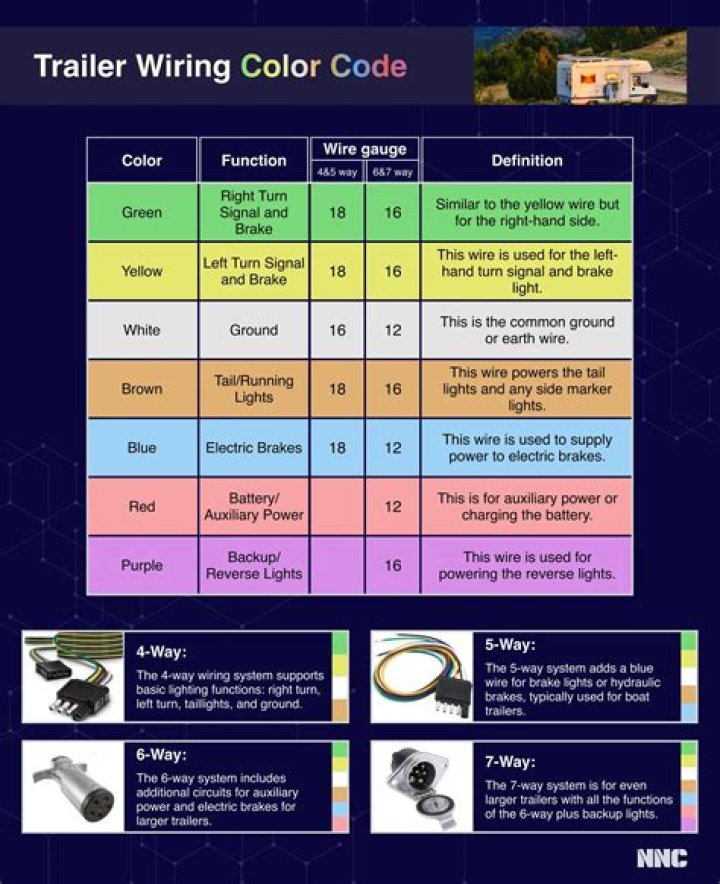

What is yellow trailer wire?
What is yellow trailer wire?
The yellow wire of the 7-way harness part # H20044 that you referenced goes to the center pin of the 7-way which is an aux circuit that is typically used for reverse lights if present on the trailer.
What does the brown wire go to on a trailer?
The green wire on the right side carries right turn signal and brake light functions, while the brown wire carries running light functions. On the left side, the yellow wire carries the left turn and brake lights and the brown wire carries the running lights.
What is the brown wire for on a trailer?
running light functions
The green wire on the right side carries right turn signal and brake light functions, while the brown wire carries running light functions. On the left side, the yellow wire carries the left turn and brake lights and the brown wire carries the running lights.
What do blue and yellow electrical wires do?
Blue and Yellow Electrical Wires. While wires in these colors carry power, they are not used in typical outlet wiring. Instead, blue and yellow wires are used as the live wires pulled through a conduit. For example, you might see yellow wires as switch legs to ceiling fans, structural lights and outlets paired with light switches.
Where does the white wire go in a trailer?
The White Wire is the “Ground” or “Negative” wire connecting to the vehicle battery “minus” side. The trailer wiring diagram shows this wire going to all the lights and brakes. Also, it must connect with things (if included) that use the Aux Power and Back-up lights too.
Where does the yellow wire go on a thermostat?
The yellow wires connect to the Y terminals on your thermostat. The green wire underneath your thermostat connects to the fan of your furnace or air handler. It terminates at the air handler or furnace. The green wire connects to terminal G on your thermostat. The orange thermostat wire links to your heat pump, if you have one.
How to wire a light fixture with green and yellow wire?
1 Turn the power off to the room at the circuit breaker. 2 Strip the tips of the wire coating off all the wires in the light fixture. Place wire strippers about 1/2 to 1 inch in and clamp down. 3 Connect the wires from the light fixture to the wires from the house.
