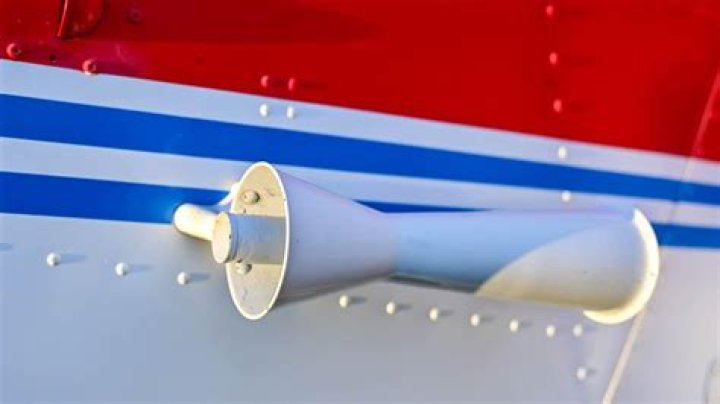

A Venturi is a system for speeding the flow of the fluid, by constricting it in a cone shape tube. In the restriction the fluid must increase its velocity reducing its pressure and producing a partial vacuum. As the fluid leave the constriction, its pressure increase back to the ambient or pipe level.

What is the venturi effect used for?

In the industrial and scientific fields, Venturi tubes are often used to measure the flow rate of a fluid. To do so, manometers are attached to different sections of the tube in order to measure pressure. The Venturi effect can then be used to calculate the flow rate from these measured pressure differences.

How does the venturi pump work?

The functional principle of venturi pumps is based on the Venturi principle. … It flows through the venturi nozzle of the venturi pump. During this process the air is accelerated and compressed. After flowing through the venturi nozzle, the accelerated air spreads in the venturi pump and a vacuum is created.

How does a flow venturi work?

A venturi works by measuring the difference in pressure at two different locations. The pressure difference is created by reducing the diameter of the pipe causing the fluid to flow faster. The fast moving fluid has a lower pressure than the slower fluid in the larger section of the venturi.

Does a Venturi cool air?

The venturi effect by itself will not heat or cool a room. It is just a low pressure region due to the higher velocity fluid stream created by a restriction in the pipe the fluid is flowing in.

Does temperature drop in a Venturi?

Abstract. The expansion of the gas through a critical flow Venturi nozzle (CFVN) leads to a 50 °C temperature drop of the gas at the nozzle throat. The body of CFVN is also cooled, which produces several effects on the flow characteristics called thermal effects.

What is an example of the Venturi effect?

Slamming of doors by a draft The slamming of doors due to a draft, is also due to the Venturi effect. The door gap is a constricted cross-section through which the air flows very quickly. The air pressure in the gap between the door and the frame drops. Around the door leaf, the air usually flows at a much lower speed.

Why does pressure drop in a Venturi?

The pressure increases over the smaller surface area, while the narrow flow then creates a vacuum in the water. The fluid’s kinetic energy increases results in a pressure decrease.

What is difference between annubar and pitot tube?

The biggest difference between an Annubar averaging Pitot tube and a Pitot tube is that an Annubar averaging Pitot tube takes multiple samples across a section of a pipe or duct. In this way, it averages the differential pressures encountered accounting for variations in flow across the section.

Is a venturi a pump?

A Venturi vacuum is created by a pump with compressed air running through it, yet the pump has no moving parts. Compressed air runs through the initial chamber, then a smaller portal that opens into another larger chamber, which is like the first one.

Article first time published on

How efficient is a venturi pump?

The venturi uses 0.9 hp for every three seconds of a 15-second cycle. Therefore, the venturi uses on average 0.18 hp of compressed air over the same cycle period. Consequently, the venturi is “more efficient” in overall running costs. … The pump and the venturi are always operating to hold the plastic sheet in place.

How do you increase venturi suction?

You can increase air/steam flow to the diffuser or increase the pressure differential from the motive force to the suction stream. I.E. make the diffuser longer and narrower ( larger pipe to a smaller pipe to incresase the pressure into the suction chamber to create greater vacuum).

What is venturi effect in architecture?

The Venturi-effect refers to the increase in fluid speed due to a decrease of the flow section in confined flows. … The reason is the wind-blocking effect, which causes a large part of the oncoming wind to flow over and around the buildings, rather than being forced through the passage.

What is Venturi valve?

The venturi valve is a tube with a constricted neck, resulting in an hourglass-like shape. A cone inside the valve is able to move back and forth parallel to the valve’s body (and parallel to the air stream).

Does the Venturi effect work with water?

The mechanism embodied in Airmaster provides an efficient means of transferring oxygen from air to water. Using the kinetic energy of water flowing over a hollow insert within the Airmaster tube the device activates a venturi effect to induce air.

Does temperature affect Bernoulli's principle?

Bernoulli’s Principle is derived from Bernoulli’s equation for fluids. It is essentially blind to temperature. Since it assumes inviscid and incompressible, it assumes either temperature has no effect on those characteristics, or constant temperature if either of those does change with temperature.

How does an annubar work?

The Annubar generates a DP by creating blockage in the pipe and acting as an obstruction to the fluid. The velocity of the fluid is decreased and stalled as it reaches the front surface the Annubar sensor, creating the impact/high pressure. The Annubar senses the impact pressure by utilizing a DP transmitter.

Is an annubar a pitot tube?

The biggest difference between an annubar and a pitot tube is that an annubar takes multiple samples across a section of a pipe or duct. … A pitot tube will give a similar reading if the tip is located at a point in the pipe cross section where the flowing velocity is close to the average velocity.

What is static pressure formula?

In this formula; p = pressure (N/m^2) q = mass density of fluid (kg/m^3)

Is the Venturi theory correct?

This theory deals with only the pressure and velocity along the upper surface of the airfoil. It neglects the shape of the lower surface. … The problem with the “Venturi” theory is that it attempts to provide us with the velocity based on an incorrect assumption (the constriction of the flow produces the velocity field).

Who discovered the Venturi effect?

The 18th–19th-century Italian physicist Giovanni Battista Venturi, observing the effects of constricted channels on fluid flow, designed an instrument with a narrow throat in the middle; fluid passing through the tube speeds up as it enters the throat, and the pressure drops.

What happens to temperature in a Venturi?

The expansion of the gas through a critical flow Venturi nozzle (CFVN) leads to a 50 °C temperature drop of the gas at the nozzle throat. The body of CFVN is also cooled, which produces several effects on the flow characteristics called thermal effects. … The maximum body temperature drop of 16.5 °C was observed.

What is venturi injector?

Venturi injectors are a highly efficient means of mixing liquids or gasses into a stream of water. They work on the principle of differential pressure. Water enters the venturi at a higher pressure than it exits. … The bigger the difference, the greater the vacuum and therefore the efficiency of the mixing.

How does a venturi create a vacuum?

The Venturi vacuum is caused by a restriction in air pressure that is caused when air or fluid flows passes through a choked or constricted section of a pipe. Venturi vacuums generate vacuums by utilizing a Venturi chamber meant to move fluids or gases via a narrow section of a pipe.

How do I choose a vacuum cleaner generator?

1. Type of workpiece: porous, air-tight.
2. Energy supply options: a lower case electricity, compressed air.
3. Restrictions for size and weight.
4. Maintaining cycle times: Short cycle times: Ejector.

How do you make a vacuum with compressed air?

It seems bizarre, but it is possible to make vacuum with compressed air. Vacuum eductors, sometimes called ejectors, or venturi use a flow of compress through a specialized nozzle to create vacuum without a mechanical vacuum pump. The process in its simplest form uses no moving parts, so it is very reliable.

How many PSI is full vacuum?

Vacuum pressure is measured relative to ambient atmospheric pressure. It is referred to as pounds per square inch (vacuum) or PSIV. The electrical output of a vacuum pressure transducer is 0 VDC at 0 PSIV (14.7 PSIA) and full scale output (typically 5 VDC) at full scale vacuum, 14.7 (0 PSIA).

Can venturi meter be used vertically?

In principle, the homogeneous model can be used with horizontally and vertically oriented Venturis.

Why venturi is not working?

Your venturi probably isn’t a venturi, or there isn’t enough suction to overcome the initial head pressure of the water in your overflow. To get adequate vacuum in a venturi, you need a reduction in cross-sectional area to increase the speed of the water, thereby decreasing the pressure.

Why is the Venturi effect important for natural ventilation?

The Venturi-shaped roofs and towers are used to create negative pressure in order to enhance the extraction air flow rates of the wind-induced natural ventilation tower.

What is natural ventilation system?

Natural ventilation is the use of wind and thermal buoyancy to create air movement in and out of your home without the use of mechanical systems, with the goal of bringing fresh air into your home.
