What is transfer switch for generator?

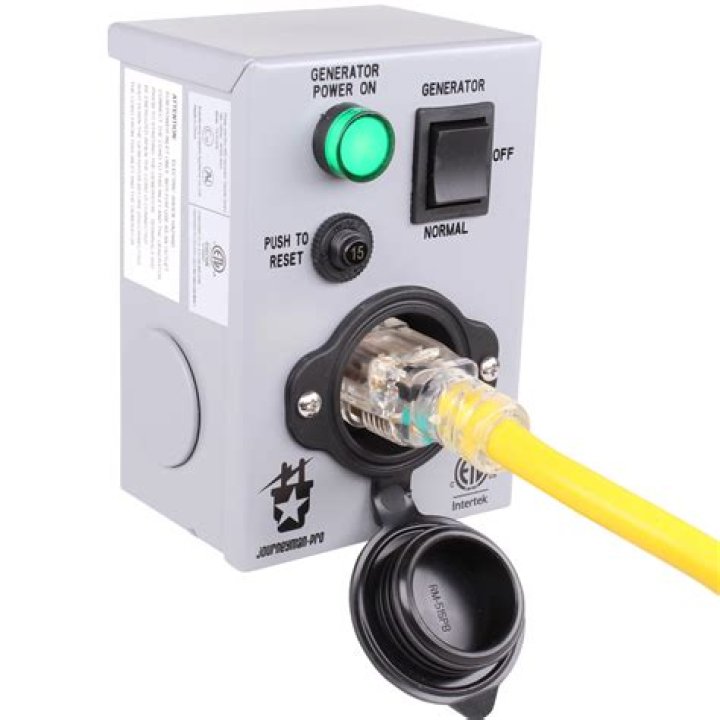

Think of a transfer switch as a miniature circuit breaker panel that draws electricity from your generator instead of the power company. When electric service is out in your area, you plug your portable generator into an outdoor outlet that’s connected, through the house, to a transfer switch inside.

How does a generator transfer switch work?

After backup voltage and frequency stabilize, the transfer switch brings the generator online. Once electric utility power is restored, with no fluctuations for a predetermined amount of time, the switch goes back to its normal position. After a cooling down interval, the generator is automatically shut down.

What is the only sure way to test an emergency power generator?

The only way to evaluate the health of a residential standby generator is to test it. Periodic testing let’s you know that you are prepared for power failure, and that your emergency generator system will work.

How do you check if your generator is working?

Put the generator’s choke at the START or halfway position. Flip the generator’s power switch to ON or turn the key in the ignition switch to the ON position. Pull the recoil cord if your generator has one to actually start the engine. If your generator does not start, double-check that the fuel line is open.

Why does my generator switch not transfer power?

You should check the 7.5A controller fuse to make sure it’s not blown. It also protects the 194 circuit. A separate battery in the switch won’t work because the 23 wire is grounded to the generators common ground system. There will be no reference to the other battery you’d be installing.

What to do when ATS won’t transfer back to generator?

When it won’t switch back, you need to determine if the 23 terminal is grounded in the transfer switch. A meter set to measure DC will read 12V (or close to it) across 194 and 23 if the generator is calling for the switch to stay in standby mode.

Why does my Gentek generator not transfer voltage?

When the generator is in Auto mode, you should have 12V+ on 194 to ground or the 0 wire. 23 will not have voltage as it’s just either grounded or ungrounded depending on the desired position of the switch. If you don’t have 12V+ on 194, you’ll have to get out to the gen and see if you have it at the terminal strip in the gen.

Can a utility transfer power to a generator?

The other night the utility power went off and on 5-6 times. The transfer happened as it should until the last power outage. At that point the generator started but the transfer didn’t occur. I was able to manually switch to generator power and when the utility came back it transferred back correctly.

You should check the 7.5A controller fuse to make sure it’s not blown. It also protects the 194 circuit. A separate battery in the switch won’t work because the 23 wire is grounded to the generators common ground system. There will be no reference to the other battery you’d be installing.

When the generator is in Auto mode, you should have 12V+ on 194 to ground or the 0 wire. 23 will not have voltage as it’s just either grounded or ungrounded depending on the desired position of the switch. If you don’t have 12V+ on 194, you’ll have to get out to the gen and see if you have it at the terminal strip in the gen.

Where are the transfer wires on a Generac generator?

Inside the genset, where the main leads go out to the transfer switch, find the wires marked N1 and N2. Be careful – these wires should have 240 volts on them. Test them to make sure they do.

What does it mean when your generator won’t start?

Thankfully, a non-starting generator is usually a minor setback rather than an indication of a more serious problem with the machine. The best place to start with troubleshooting your generator is with some of the most common causes of starting issues.
