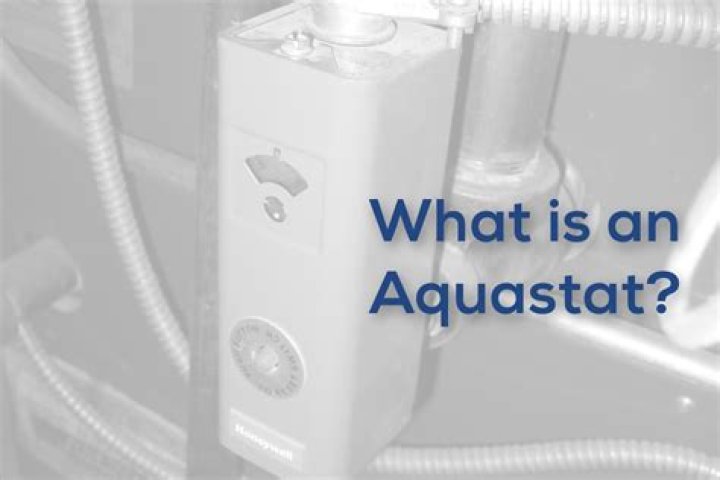

An aquastat is a device installed in hydronic water systems for the purpose of controlling temperature within the boiler. An aquastat is similar to the furnace limit switch in operation, maintaining a safe operating temperature for the central heating unit.

How does an aquastat work?

The aquastat monitors the water temperature in the boiler through the use of a copper bulb that stays in contact with the water inside the boiler and that shuts down the boiler automatically if the low- or high-temperature set point is exceeded.

What is the function of the aquastat relay?

An aquastat is just a switch that turns the boiler on and off to maintain the right water temperature.

Does a boiler need an aquastat?

An aquastat is a device used in hydronic heating systems for controlling water temperature. To prevent the boiler from firing too often, aquastats have a high limit temperature and a low limit. … The boiler will re-fire if the boiler water temperature drops below a range around the high limit.

What is a aquastat well?

Honeywell Aquastat L4006A is an immersion type device for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. … Honeywell L4006A1678 is used for high limit or low limit control.

What is the price of an aquastat?

List Price:$190.18 DetailsPrice:$139.00You Save:$51.18 (27%)

What is a Pressuretrol used for?

A pressuretrol is a control used to control a steam boiler, by setting when the boiler should begin and end firing based on steam pressure.

What is meant by hydronic system?

Definition of hydronic : of, relating to, or being a system of heating or cooling that involves transfer of heat by a circulating fluid (such as water or vapor) in a closed system of pipes.

What is the purpose of a pump on a boiler system?

Boiler Feed Pumps are designed to handle the amount of pressure your operation needs. Boiler feedwater pumps transport water into boilers using high pressure. Thus, a boiler feed pump is built to handle extremely high water pressure to deliver the feedwater into the boiler system.

What does an outdoor reset control do?

The outdoor reset control “tells” the boiler what the actual, real-time outdoor temperature is. This allows the boiler to respond to the outdoor temperature by raising or lowering the boiler’s supply water temperature being delivered to your heating system.

Article first time published on

How does thermostat control boiler?

It uses a sensor to monitor the temperature of your home, and consequently it keeps an eye on what your boiler is up to. If your room thermostat senses that your home has reached its target temperature, it will switch the central heating off. Once the temperature drops, it’ll fire up the boiler again.

How a hydronic heating system works?

Hydronic heating works by using the efficient transfer of heat through water. Since water conducts heat more easily than air, less energy is used to spread heat throughout the house. A heat source such as a boiler transfers heat through pipes that are connected to wall panels or placed underneath your floor.

How do you know if Aquastat is bad?

Check circulator terminals: If voltage is everywhere it should be and a relay is clicking constantly OR a transformer is buzzing, those component(s) are probably bad. Separately at RELAY CONTROL SWITCHES using a water pump pressure control switch as an example we discuss clicking and chattering relay switches.

How much does it cost to replace an Aquastat on a boiler?

replace a boiler Aquastat relay – $ 700. replace inducer blower motor – starts @ $ 600. Replace contact Relay -start @ $400.

What is a boiler aquastat relay?

They Honeywell Aquastat Relay (L8148E1265) provides total convenience and control for a range of installations. This is an immersion-type controller that combines high limit protection with switching relay control of the burner and circulator motors.

What is a low water cutout?

A low-water cutoff is a mechanical device (usually a float switch) that is used to turn off the burner or shut off fuel to a boiler to prevent it from running once the water drops below a certain point. If a boiler is “dry-fired” (burned without water in it) it can suffer rupture or catastrophic failure.

What is an immersion well?

Also known as immersion wells, aquastat wells, and bulb wells, they consist of a tube that’s closed at one end and mounted in the stream. The temperature sensor inserts into the open end of the tube, which is typically in the open air outside the pipe or vessel.

What does the pigtail do on a steam boiler?

The pigtail allows steam to change phase from a gas into a liquid by dissipating the latent heat energy of steam and allowing the steam to condense, thus providing a loop seal of liquid. The loop seal of liquid prevents the transfer of the heat energy from the steam to the gauge.

Where is the Aquastat on a boiler?

Aquastat is the gray box on the left while the circulator is the black pump on the right. Aquastat Temperature Control – The boiler aquastat controls the temperature of the water inside the boiler jacket.

How do I adjust my Honeywell digital Aquastat?

To discourage unauthorized changing of Aquastat® settings, a procedure to enter the adjustment mode is required. To enter the adjustment mode, press the UP, DOWN, and I buttons simultaneously for three seconds. Press the I button until the feature requiring adjustment is displayed: HL – High Limit.

What are the two most important criteria of a boiler feed pump?

Boiler feed pump must not only be able to supply feed water requirement; but also work as a condensate and makeup water pump when required. To ensure proper operation of these pump; feed water must be free from steam, air and insoluble solids.

Which type of feed pump is used in boiler?

Today, all boiler feed pumps are centrifugal pumps. The design of boiler feed pumps regarding power input, material, type of pump and drive is largely governed by the developments which have taken place in power station technology.

What temperature is boiler feed water?

The temperature of the feedwater tank should be maintained between 185 and 195°F (85 and 90°C) to reduce the amount of oxygen in the water. By increasing the temperature and reducing the oxygen content, you can greatly reduce your sulfite or oxygen scavenger requirements.

What is a two-pipe reverse system?

In a two-pipe reverse return system the total pipe length from the pump to and from each radiator is the same for all radiators on the same storey. This gives a favourable water distribution.

What are two common hydronic piping systems?

• One-Pipe Main – With this system, each terminal unit is connected by a supply and a return branch pipe to the main. …
• Two-Pipe Direct Return – This is generally used for larger systems and consists of two mains.

Can hydronic heating be used to cool?

While hydronic systems tend to be associated with heating, it’s an often-overlooked fact that hydronic technology can also provide extremely comfortable and efficient cooling. Just as water is effective at conducting heat, so too can it effectively convey cooling.

What is outdoor reset curve?

Outdoor reset is a technology that correlates boiler settings with the outdoor temperature in one spot outside the building. The purpose of this match-up is to increase efficiency by lowering systemic losses of energy that naturally occur from the production and distribution of thermal energy.

What is heat reset?

Hot water reset, also called outdoor reset (ODR), is an energy-saving automatic control algorithm for heating boilers that are typically fired with fuel oil or natural gas. … Hot water reset reduces the energy output by the heating system to approximately balance it against the energy lost as the building cools.

What is boiler reset control?

A Boiler Reset Control is a devise that automatically controls the boiler water temperature according to a software program based on outdoor temperature. The water can be run a little cooler during fall and spring, and a little hotter during the coldest parts of the winter.

Can you run a boiler without a thermostat?

Quite surprised that if it’s a new boiler there is no thermostat as it’s part of building regs that all new installs should have one along with TRV’s. The dial on the front controls the temperature the boiler raises the water to before it shuts off – essentially a high limit stat.

Can I leave my boiler on continuously?

Can I leave my boiler on continuously? You can, but it will cost you more. Once your water reaches a certain temperature, the water heater will turn off. It will turn back on again when the water cools.
