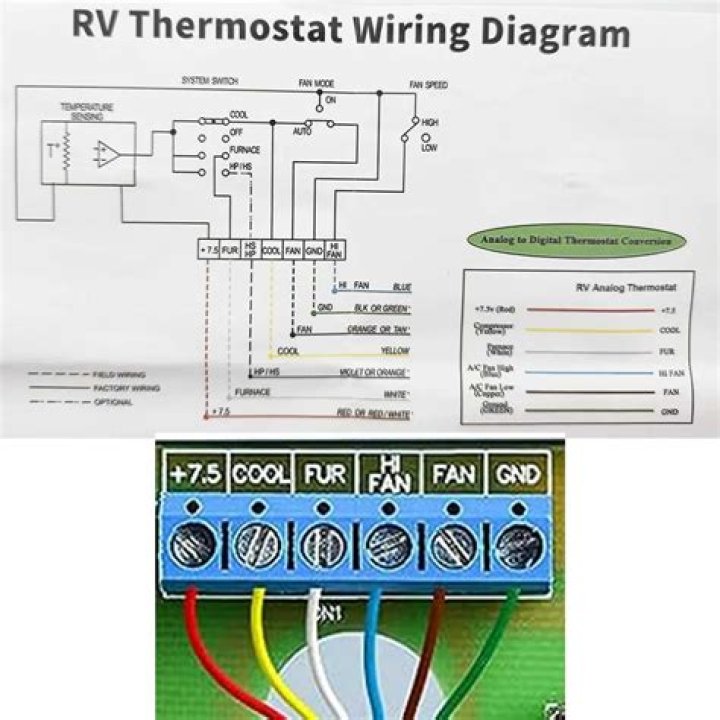

Name: dometic capacitive touch thermostat wiring diagram – Name: dometic capacitive touch thermostat wiring diagram – Dometic Rv thermostat Wiring Diagram Wiring Diagram Mesmerizing Source: galericanna.com Assortment of dometic capacitive touch thermostat wiring diagram.
Is the Dometic CT single zone thermostat control kit safe?
The Dometic CT Single Zone Thermostat Control Kit can control your Dometic heating or cooling appliances. WARNING This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to
How to replace a Dometic RV a / C unit?
Today I replaced the thermostat in our travel trailer. The A/C unit is a Dometic 13,500 BTU unit. Very simple to DIY. Unplug the camper, and swap the wires one at a time. As an Amazon Associate I earn from qualifying purchases. Loading…
How to install a Dometic szlcd control box?
Place cover on the thermostat and push until an audible click is heard. h. At the 14 1/4″ x 14 Y4′ opening, connect the following: • Plug the supplied four conductor wire harness that is red/white, orange, black, and red into the SZLCD control relay box. • Connect the +12VDC red supply wire to the red wire from the SZLCD control relay box.
Can you replace a Dometic digital thermostat on YouTube?
Dometic digital thermostat replacement – YouTube This was an upgrade that I had done professionally to make sure it was done correctly. It came in two parts from the thermostat itself and the controller. This was an upgrade that I had done professionally to make sure it was done correctly.
Place cover on the thermostat and push until an audible click is heard. h. At the 14 1/4″ x 14 Y4′ opening, connect the following: • Plug the supplied four conductor wire harness that is red/white, orange, black, and red into the SZLCD control relay box. • Connect the +12VDC red supply wire to the red wire from the SZLCD control relay box.
Where is the supply wire on a Dometic RV?
Route a dedicated 12VDC supply wire (18-22 AWG) from the RV’s converter (filtered side) or the 12VDC battery to the 14 1/4′ x 14 1/4″ opening. This supply wire must be located in the front portion of the opening. Make sure that at least 15″ of supply wire extend into the roof opening.
How do I connect the szlcd control box to the thermostat?
• Connect the red/white wire routed from the SZLCD thermostat +12VDC terminal to the red/white wire from the SZLCD control relay box. • Connect the orange wire from the SZLCD thermostat COMMS terminal to the orange wire that runs from the SZLCD control relay box.
