Ductility is a measure of how much a material can be deformed before breaking. Deformation occurs when a material’s shape changes. … The opposite of ductile is brittle. Brittle materials don’t deform much before breaking.

What is the main difference between ductile and brittle fracture?

Brittle fracture means fracture of material without plastic deformation or with very small plastic deformation before fracture. Rock, concrete, glass, and cast iron all have such property, so they are called brittle materials. Ductile fracture means fracture of material with large plastic deformation before fracture.

What is a brittle material?

Brittleness describes the property of a material that fractures when subjected to stress but has a little tendency to deform before rupture. Brittle materials are characterized by little deformation, poor capacity to resist impact and vibration of load, high compressive strength, and low tensile strength.

What are brittle and ductile materials with examples?

Bone, cast iron, ceramic, and concrete are examples of brittle materials. Materials that have relatively large plastic regions under tensile stress are known as ductile . Examples of ductile materials include aluminum and copper.

How do ductile and brittle materials differ in their behavior in the compression test?

DUCTILE MATERIAL HAVE GOOD POTENTIAL TO STRAINING, AND CAN PRODUCE SUFFICIENT STRAIN EVEN AT LOS LEVEL STRESS APPLICATION, WHILE BRITTLE MATERIALS HAS OPPOSITE CHARACTERISTIC BEHAVIOR, BECAUSE IT HAS HIGH RESISTANCE TO STRAINING.

What is the meaning of brittle and ductile?

In other words if materials ductile, materials stretch under tensile load. The ductile materials are Steel, Aluminum, copper etc. Brittle materials break without significant plastic deformation under tensile stress. Also called sudden failure. … Failure of material (b) shows, it’s a ductile material.

How does a brittle material differ from a ductile material chegg?

Ductile materials are materials that can be plastically twisted with no crack. … Common ductile materials are copper, aluminum, and steel. Brittle material. A brittle material is one that will break as opposed to bending.

What are ductility and brittleness of a solid?

Ductility is defined as the ability of solid material to plastically deform to a larger extent before fracture when it is subjected to external tensile loading. … Brittle materials absorb very small energy before fracture. Various metal forming operations (such as rolling, forging, drawing, bending, etc.)

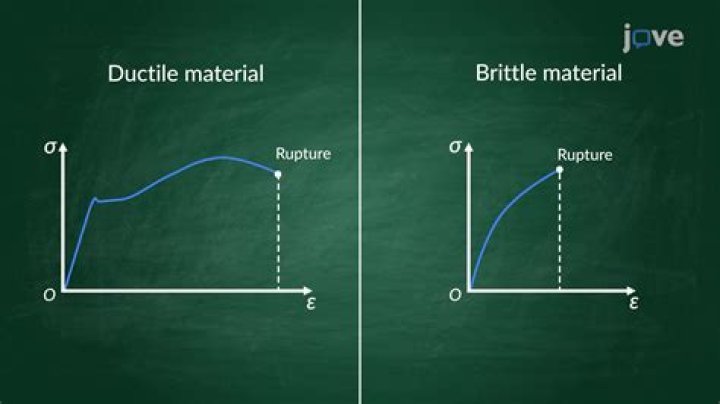

What is the difference between ductile and brittle materials explain with stress vs strain curves?

Solid materials that can undergo substantial plastic deformation prior to fracture are called ductile materials. Solid materials that exhibit negligible plastic deformation are called brittle materials. … Brittle materials fail by sudden fracture (without any warning such as necking).

What is called brittle?

having hardness and rigidity but little tensile strength; breaking readily with a comparatively smooth fracture, as glass. easily damaged or destroyed; fragile; frail: a brittle marriage. … having a sharp, tense quality: a brittle tone of voice.

Article first time published on

What do you mean by ductile material?

Ductility is the ability of a material to be drawn or plastically deformed without fracture. It is therefore an indication of how ‘soft’ or malleable the material is.

Is ductile a property of metal?

As you probably already know, ductility is the ability of a metal to receive permanent deformation without fracturing. Metals that can be formed or pressed into another shape without fracturing are ductile. In general, all metals are ductile at elevated temperatures.

What is deformation What is the difference between elastic brittle and ductile deformation quizlet?

Brittle deformation is where rock fractures once its strength is surpassed, while ductile deformation is where a rocks size and shape changes without fracturing.

Why are brittle materials stronger in compression?

Brittle materials are well known to be much stronger in compression than in tension. This is because under a compressive load a transverse crack will tend to close up and so could not propagate.

What is brittle material with example?

Brittle materials include glass, ceramic, graphite, and some alloys with extremely low plasticity, in which cracks can initiate without plastic deformation and can soon evolve into brittle breakage.

What is malleability and ductility?

Malleability: The property of metals to be beaten into thin sheets is called malleability and the metals are called malleable. example: Iron, Aluminum etc. Ductility: The property of the metals to be drawn into thin wires is called ductility and metals are called ductile.

How do you know if its ductile or brittle?

Typically brittle materials have a fracture strain less than 0.05 (∊f < 0.05) and ductile materials have a fracture strain greater than or equal to 0.05 (∊f ≥ 0.05). Ductile materials deform much more than brittle materials. Brittle materials fail suddenly, usually with no prior indication that collapse is imminent.

What is the difference between true and engineering stress?

True stress is the applied load divided by the actual cross-sectional area (the changing area with time) of material. Engineering stress is the applied load divided by the original cross-sectional area of material. Also known as nominal stress.

What are ductile and brittle materials class 11 physics?

1) The material showing large amount of plastic deformation b/n the elastic limit and the fracture point is called ductile material. The material showing small amount of plastic deformation b/n the elastic limit and The fracture point is called brittle material.

What is the difference between ductility and elasticity?

Elasticity defines about how much the material is elastic, that is to which extent the deformations are proportional to the forces applied on the material. While ductility defines the capability of the material to get itself stretched beyond the elastic zone. … This means that the rubber band is elastic in nature.

Is plastic brittle or ductile?

The impact behavior of plastic materials is strongly dependent upon the temperature. At high temperatures, materials are more ductile and have high impact toughness. At low temperatures, some plastics that would be ductile at room temperature become brittle.

Why ceramic is brittle?

Why are ceramics brittle? Ceramic materials are polycrystalline structures composed of ionic or covalent bonds, so they lack slip systems that can deform the materials. In the process of preparation, it is inevitable to leave micro-defects on the surface of the material, which may form the source of cracks.

What is the difference between hardness and brittleness?

A material’s hardness refers to its ability to resist having its molecules being rearranged into another form. Think of a solid chunk of steel. It is very hard but not very brittle. Brittleness refers to how a material responds to stress being applied to it.

Is brittle a metal or nonmetal?

In the solid state, nonmetals are brittle , meaning that they will shatter if struck with a hammer. The solids are not lustrous. Melting points are generally much lower than those of metals.

What is ductility example?

Ductility is the physical property of a material associated with the ability to be hammered thin or stretched into wire without breaking. … Examples: Most metals are good examples of ductile materials, including gold, silver, copper, erbium, terbium, and samarium.

Is Stone malleable or brittle?

Typical brittle materials: glass, concrete, ceramics, stone, gray cast iron.

Is aluminum ductile or brittle?

Aluminium has a ductile fracture behavior at all temperatures. The properties of many metals change when exposed to very low temperatures. These changes occur in strength, toughness, brittleness, and durability. Aluminium is known to sustain or even improve both ductility and toughness at very low temperatures.

What is the difference between toughness and ductility?

Ductility refers to the ability for a material to undergo plastic deformation without failure such as to be drawn into a thin wire. Ductile materials can be formed and pressed into many shapes and sizes. Toughness refers to the energy required to deform a material to failure.

What is the relationship between strength and ductility?

These are succinctly called strength and ductility. By strength we mean the resistance of a substance to distortion or fracture, and by ductility we mean how much we may distort it before it fractures.

What is the difference between brittle and elastic deformation?

The key difference between ductile and brittle deformation is that ductile deformation occurs at low strain rates, whereas brittle deformation occurs at high strain rates. … Elastic deformation is a reversible deformation, ductile deformation is irreversible where brittle deformation causes the rock to break.

What is the difference between brittle deformation and plastic deformation?

Permanent deformation accompanied by fracturing of the host due to high effective and/or differential pressure is well known as inclusion decrepitation or brittle deformation. Permanent deformation whereby strain is distributed uniformly throughout the inclusion walls is termed stretching or plastic deformation.
