The Spanning Tree Protocol (STP) is a network protocol that builds a loop-free logical topology for Ethernet networks. The basic function of STP is to prevent bridge loops and the broadcast radiation that results from them.

What is the purpose of Spanning Tree Protocol STP?

STP prevents loops in layer 2 networks that have redundant paths. Loops in layer 2 networks can result in duplicate frames and switches learning the same MAC addresses on multiple interfaces. To prevent loops, STP calculates a single path through the network and then blocks any redundant paths.

What is Spanning Tree Protocol and how does it work?

The Spanning Tree Protocol (STP) is responsible for identifying links in the network and shutting down the redundant ones, preventing possible network loops. In order to do so, all switches in the network exchange BPDU messages between them to agree upon the root bridge.

Whats is STP?

Spanning Tree Protocol (STP) is a Layer 2 network protocol used to prevent looping within a network topology. STP was created to avoid the problems that arise when computers exchange data on a local area network (LAN) that contains redundant paths.

Can you describe the Spanning Tree Protocol?

Spanning Tree Protocol (STP) is a link management protocol that provides path redundancy while preventing undesirable loops in the network. When it comes to ethernet networks, only one active path can exist between two stations in order for them to function properly. Loops occur in networks for a variety of reasons.

What is difference between STP and RSTP?

The main difference between Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) and Spanning Tree Protocol (STP IEEE 802.1D) is that Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) assumes the three Spanning Tree Protocol (STP) ports states Listening, Blocking, and Disabled are same (these states do not forward Ethernet …

What is STP and its types?

1. 802.1D – This is also known as CST (Common Spanning Tree). It is a spanning tree standard developed by IEEE which elects only one root bridge per whole topology.

What is STP in networking PDF?

Spanning Tree Protocol (STP) was developed to prevent the broadcast storms caused by switching loops. STP was originally defined in IEEE 802.1D. Switches running STP will build a map or topology of the entire switching network.

Is UTP or STP better?

UTP cables contain no shields and they are thinner than STP cables, which is easier for cable installation and maintenance, particularly in limited space. … On the other side, it makes UTP cables more suitable to be used in narrow space. Third, fewer cost. UTP cables are cheaper than STP cables.

How does STP block ports?

A port is considered blocked when user data is prevented from entering or leaving that port. This does not include bridge protocol data unit (BPDU) frames that are used by STP to prevent loops. Blocking the redundant paths is critical to preventing loops on the network.

Article first time published on

How many types of STP network are there?

StandardDescriptionIEEE 802. 1wRapid Spanning Tree Protocol Improved STP with fasterconvergence Backward compatible with STPIEEE 802. 1QVirtual LAN Defining 1 common spanning tree for all VLANsCisco ProprietaryPer VLAN Spanning Tree 1STP instance per VLAN PVST + is an improved variant of PVST

What is difference between RSTP and MSTP?

RSTP provides rapid convergence of the spanning tree. MSTP, which uses RSTP to provide rapid convergence, enables VLANs to be grouped into a spanning-tree instance, provides for multiple forwarding paths for data traffic, and enables load balancing.

What is the advantage of using RSTP as compared to STP?

Advantages of RSTP RSTP, along with its predecessor STP, was developed for the purpose of preventing detrimental loops within a network. RSTP prevents network loops by blocking redundant ports. A blocked port will still receive data, but will not send that data out to other devices on the network.

Is Cat 7 UTP or STP?

Cat7(a) UTP cable denotes an Unshielded Twisted Pair design. In this configuration, the four pairs of twisted copper wires that make up a Cat7 Ethernet cable are sheathed only by their own interior jacketing and that of the external cable.

What is cat6 STP?

The extra covering in shielded twisted pair wiring protects the transmission line from electromagnetic interference leaking into or out of the cable making it ideal for mobile applications and fast data rate Ethernets. …

Why would you use STP over UTP cabling?

Why would you use STP over UTP cabling? A. … Shielded twisted pair cabling handles interference from other electronics much better than unshielded twisted pair. What kind of frame gets received by all NICs in a LAN?

Which are the port roles defined in STP?

STP Port States Blocking – When a device is connected, the port will first enter the blocking state. Listening -The switch will listen for and send BPDUs. Learning – The switch will receive a superior BPDU, will stop sending its own BPDUs, and will relay the superior BPDUs. Forwarding – The port is forwarding traffic.

What is Spanning Tree CCNA?

Spanning Tree Protocol (STP) is a network protocol designed to prevent layer 2 loops. It is standardized as IEEE 802. D protocol. STP blocks some ports on switches with redundant links to prevent broadcast storms and ensure loop-free topology. … STP prevents loops by placing one of the switch ports in blocking state.

What is BPDU packet?

Acronym for bridge protocol data unit. BPDUs are data messages that are exchanged across the switches within an extended LAN that uses a spanning tree protocol topology. BPDU packets contain information on ports, addresses, priorities and costs and ensure that the data ends up where it was intended to go.

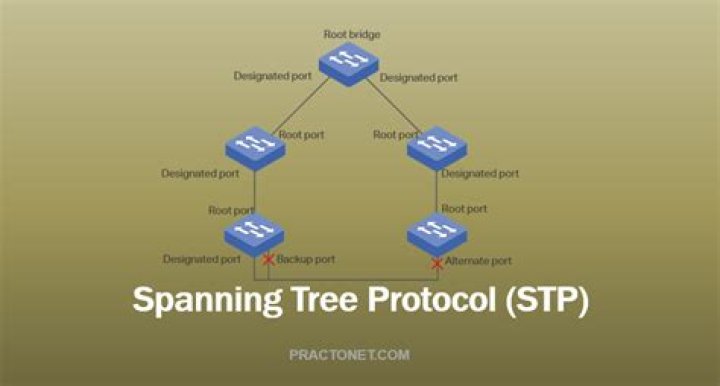

What is the difference between root port and designated port in STP?

Root PortDesignated PortOne end If root port, opposite will be designated port (never be blocking port).One end is the designated port, opposite will be either the designated port or non-designated port.

What is STP guard Meraki?

Through the Meraki dashboard, you can configure network-wide STP settings including enabling RSTP and setting the bridge priority on MS switches. You can also control port level STP settings including enabling or disabling RSTP on a port, and configuring STP guards.

Is STP Cisco proprietary?

There are many types of STP variants. Some of them are Cisco proprietary, some of them are standardized by IEEE. Cisco’s proprietary variants are Per-VLAN Spanning Tree Protocol (PVST), Per-VLAN Spanning Tree Protocol Plus (PVST+) and Rapid PVST+.

What does a Bpdu contain?

A BPDU contains information regarding ports, switches, port priority and addresses. BPDUs contain the information necessary to configure and maintain spanning tree topology. They are not forwarded by switches, but the information is used by switches to calculate their own BPDUs for information passing.

Is MST compatible with RSTP?

Yes it is. MSTP is designed to be backwards compatible with RSTP (and the older legacy STP). … Even if you do get MST Region and MSTI up and runnnig, an RSTP/STP bridge will only participate in the base MSTP CIST topology.

When should I enable RSTP?

CommandPurposeconsole (conf-rstp)# disableTurns RSTP off globally for the switch.

How is RSTP faster than STP?

The STP process to determine network state transitions is slower than the RSTP process because it is timer-based. A device must reinitialize every time a topology change occurs. … RSTP converges faster because it uses a handshake mechanism based on point-to-point links instead of the timer-based process used by STP.

Is Cat 7 GOOD?

CAT 7 cable, whilst being the more expensive option, is also considered the most durable, and has a longer lifespan than CAT 5 and CAT 6, improving its overall return on investment, and is the best choice for wiring with the future in mind.

Can I use CAT 7 cable for Internet?

Best answer: No. Cat 7 cables aren’t officially supported by any home networking equipment manufacturer so they will be operating as Cat 6 cables due to backwards compatibility.
