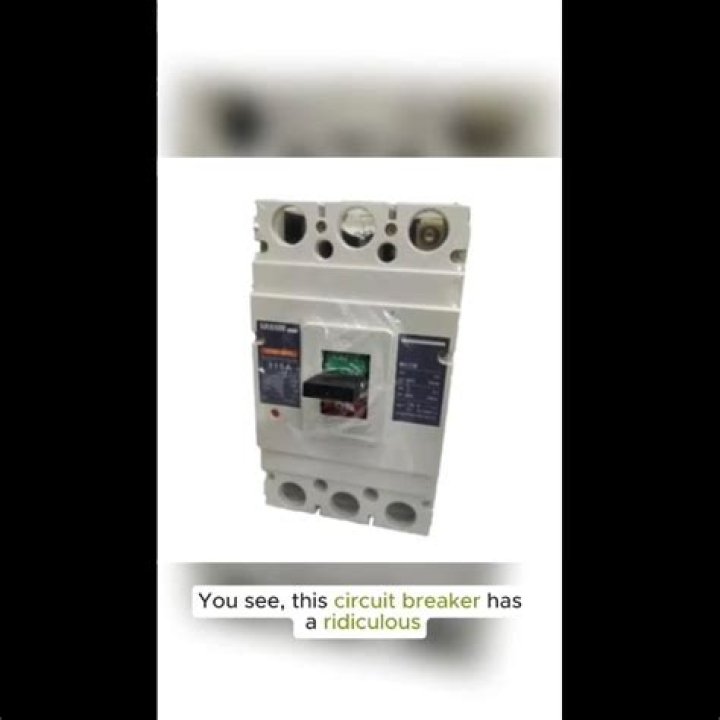

KAIC is an acronym used by electricians. It stands for Kilo Ampere Interrupting Capacity and is sometimes referred to as Thousand Ampere Interrupting Capacity. KAIC in electricity refers to refers to measurements of the ability of a circuit breaker to withstand a short circuit or overload.

How are Kaic ratings calculated?

kAIC Rating of Circuit Breakers: Fused Circuit Breakers 13, the basis of the rated short-circuit current of a fused circuit breakers is the rms symmetrical current value at a power factor of 20% lagging (X/Rtest ratio of 4.9). … The kAIC rating for circuit breakers depends on the manufacturer test power factor.

WHAT IS AT and AF in breaker?

Ampere Frame [AF] it is the rating breaker current [maximum. current which the breaker will withstand for a long. time]. Ampere trip [AT] it is the current set to trip the. circuit [usually from 60% up to 100% of the AF].

What does 10ka mean on a circuit breaker?

The 10 kA you see on a circuit breaker is the interrupting rating of the circuit breaker, that is, the largest current that it can safely open. It is usually written as 10 kA rms symmetrical. The rms indicates that it is rated to interrupt 10 kA root mean square current.

What are the standard AIC ratings for panels?

Minimum AIC ratings for the panel should be 10,000 AIC for 120/208 volt panels, and 14,000 AIC for 277/480 panelboards.

How do you calculate fault current?

Fault current calculations are based on Ohm’s Law in which the current (I) equals the voltage (V) divided by the resistance (R). The formula is I = V/R.

What is AIC electrical?

AIC stands for Ampere Interrupting Capacity. The AIC rating indicates the maximum fault current (in amps) that an overcurrent protection device (circuit breaker, fuse, etc.) will safely clear when a fault is applied at the load side of the overcurrent protection device.

What is ICS and ICU in Mccb?

Ics – service short-circuit breaking capacity Icu – ultimate breaking capacity. The breaker can break this fault current, but it may not be usable afterwards. Ics – service breaking capacity. As per Icu, but the breaker remains usable.

How many amp is 10kA?

“10KA” means 10,000 amps.

What is 10kA fuse?

10kA is the fault current rating of the breaker, not the normal load rating. Remember that a circuit breaker is a protective device. What the 10kA means is that that that breaker is capable of interrupting a 10kA short circuit current.

Article first time published on

What is frame size of Mccb?

Industrial-grade MCCBs are available in frame sizes from 100 amperes to 3000 amperes. ICCBs are available in frame sizes from 400 to 5000 amperes. The 400-ampere-frame ICCB is typically the same size and cost as the 800-ampere frame but is equipped with smaller-ratio current sensors.

What is 100af in electrical?

Electric Power Engineering Your “100AT” designates that the circuit breaker should be configured with a 100 Amp trip unit, or perhaps a trip unit that can be set at 100 Amps. … A 100 AF breaker will be smaller than a 400 AF breaker.

What is CB electrical?

A circuit breaker is an electrical safety device designed to protect an electrical circuit from damage caused by an overcurrent or short circuit.

What does 100% rated breaker mean?

If a breaker is applied at 100% of its nameplate rating, there is a potential to reduce not only the breaker size, but also the conductor size and the size of the enclosure. This size reduction may result in a less expensive distribution system.

How many circuits are in a panel?

Typical 100-amp panels have 20 circuits, meaning they can handle 20 full-sized breakers.

Is SCCR the same as Kaic?

AIC (kAIC) applies to protective interrupting devices such as circuit breakers and fuses. … SCCR applies to complete pieces of equipment such as motor control enclosures containing breakers/fuses, contactors, or solid state devices used for motor control or components combined into a control scheme.

What does 22k AIC mean?

A breaker marked 22k AIC will protect anything it supplies so that the equipment never sees more than 22,000 amps of fault current.

What is a kA rating?

kA rating is known as the short circuit withstand capacity or ultimate breaking capacity of a circuit breaker. It is denoted by Icu. For example, if the MCB is rated at 10kA, it means that the MCB can safely break the circuits during short circuit unless until the short-circuited current does not exceed 10kA.

What is 10K AIC?

Ampere Interrupting Capacity (AIC) When a product has an AIC rating, that means it includes circuit protection. … For example, a device rated 10K AIC will interrupt current up to 10,000 Amps without shorting to ground or exposing live parts.

What is maximum fault current?

For single phase circuits, the maximum fault current is between the phase and the neutral and in three phase circuits it is when all phases are shorted (symmetrical current). The total impedance is that with operating temperature 20οC (lower temperature means lower resistance).

What is overload current?

The overload current is an excessive current relative to normal operating current, but one which is confined to the normal conductive paths provided by the conductors and other components and loads of the distribution system.

Why CT secondary is short circuited?

If a closed conducting path will not be given, the voltage at the secondary terminals will rise to dangerous levels up to a level that insulation breakdown will occur which in turn will cause arcing. This is dangerous both to equipment and personnel. This is why we must short circuit the secondary side and ground it.

How do you convert V to KV?

To convert a volt measurement to a kilovolt measurement, divide the voltage by the conversion ratio. The voltage in kilovolts is equal to the volts divided by 1,000.

How many a are in a kA?

There are 1,000 amperes in a kiloampere, which is why we use this value in the formula above. Kiloamperes and amperes are both units used to measure electric current. Keep reading to learn more about each unit of measure.

How many TG are in ag?

Teragram [Tg]Gram [g]1 Tg1000000000000 g2 Tg2000000000000 g3 Tg3000000000000 g5 Tg5000000000000 g

What is UI and uimp?

Ui is the voltage that references the voltage environment. … The rated impulse withstand voltage Uimp sets the maximum voltage a circuit breaker can withstand without failure. It is expressed in kilovolts (kV). In an apartment, for example, 4kV is ample, while industrial devices have Uimp of up to 8 kV.

What is ICN and ICS?

Ics is the amount of current that the circuit breaker can safely withstand without being damaged for example 6 kA or 6000 A and remain usable. Icn is the amount of current the circuit-breaker can safely handle but would not remain usable.

What is kA rating in ACB?

kA rating is known as the short circuit withstand capacity or ultimate breaking capacity of a circuit breaker. For example, if the MCB is rated at 10kA, it means that the MCB can safely break the circuits during short circuit unless until the short-circuited current does not exceed 10kA.

What are the 3 types of fuses?

• DC Fuses.
• AC Fuses.
• Cartridge Fuses.
• D – Type Cartridge Fuse.
• HRC (High Rupturing Capacity) Fuse or Link Type Cartridge Fuse.
• High Voltage Fuses.
• Automotive, Blade Type & Bolted Type Fuses.
• SMD Fuses (Surface Mount Fuse), Chip , Radial, and Lead Fuses.

What is class P fuse?

Standard non-time delay fuses are for receptacle and lighting circuits. … For Canadian requirements, a type “P” fuse is used for non-motor loads and type “D” fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements.

What is a Class J fuse used for?

Class J fuses are commonly used in branch circuits, motor circuits, mains, feeders, control panels, electronic motor controllers, drives, soft-starters, circuit breaker back-up, transformers, load centers, lighting, heating and general loads to name a few.
