What is J1939 fault code?

The J1939 fault code error message consists of a Source Address (SA) identifying the Electronic Control Unit (ECU) sending the DTC (SA0 = Engine Controller #1), a Suspect Parameter Number (SPN) which identifies the parameter sending the fault code error message, and a Failure Mode Identifier (FMI) which identifies the …

What does SPN stand for in J1939?

Data Content The J1939 specification has defined the following term for the PGN contents: Suspect Parameter Number (SPN). An SPN is for all intents and purposes a signal ID. It can be a physical value, a status, or a command. SPNs are also defined for internal protocol information.

How is J1939 diagnosed?

Turn the ignition key off and disconnect the batteries. Set the multimeter to ohms and place the leads between CAN + (Pin C) and CAN – (Pin D).
CAN + and CAN – will be tested separately. Turn the ignition key ON and put one test lead on ground and the other lead on CAN + (Pin C) or CAN – (Pin D).

What is PGN in can?

The Group extension expands the number of possible broadcast Parameter Groups that can be represented by the identifier. The term Parameter Group Number (PGN) is used to refer to the value of the Reserve bit, DP, PF, and PS fields combined into a single 18 bit value.

What are FMI codes?

Failure Mode Identifier
The FMI is used along with the SPN to provide specific information that relates to a diagnostic trouble code (DTC). The FMI may indicate that a problem with an electronic circuit or an electronic component has been detected.

CAN you program a J1939?

J1939 is a higher-layer protocol based on Controller Area Network (CAN). It provides serial data communications between microprocessor systems (also called Electronic Control Units – ECU) in any kind of heavy duty vehicles.

Is J1939 the same as CAN?

J1939 is based on CAN, which provides the basic “physical layer” and “data link layer”, the lowest layers in the OSI model. Basically, CAN allows the communication of small packets on the CAN bus, but not a lot more than that. Here, J1939 serves as a higher layer protocol on top, enabling more complex communication.

What are SPN codes?

The Suspect Parameter Number (SPN) is diagnostic fault code terminology found on some of our equipment using a J1939 CAN data link.

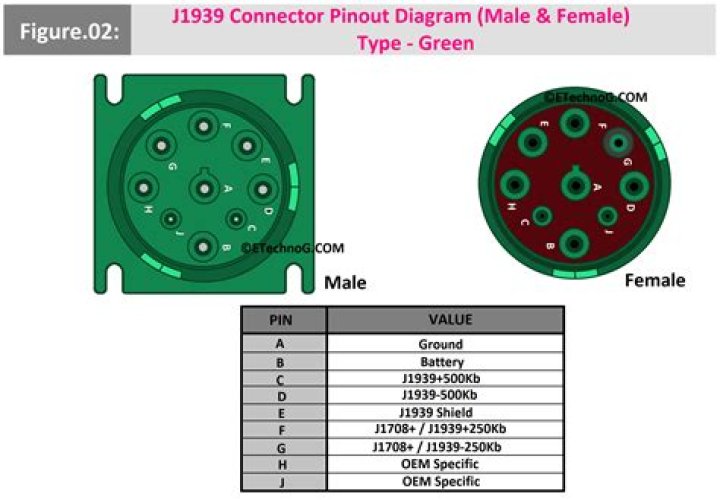

What is a J1939 connector?

What is the difference between J1939 and CAN?

There is no difference between CAN and J1939. J1939 build on top of CAN 2.0b. When some device sends a big message using the J1939 Transfer protocol (J1939.TP) using BAM other devices can accept this message or ignore it. But there is one important limitation – the device can send only one BAM message at a time.

What is SPN code?

The Suspect Parameter Number (SPN) is diagnostic fault code terminology found on some Caterpillar ® products using a J1939 CAN data link. Only the SPN numbers that are intended to be used on Caterpillar ® products are listed.

What are the error codes for Freightliner Trucks?

FREIGHTLINER Truck Error Codes DTC SPN Component Codes (MID) – MID Description Old – Text Message – New Text Message * 128 Engine №1 – ENGINE – ENG 130 Automatic transmission – Trans 136 Anti-lock Braking System (ABS) – TRCTR – BRK Brake 140 Panel, Left – INSTRCLST – Instr 142 Panel, Right № 1 – INSTRCLST – MGMT

How to find the failure mode identifier on J1939?

Failure Mode Identifier (FMI) Codes on J1939 data link FMI Description 6 Current Above Normal 7 Not Responding Properly 8 Abnormal Frequency, Pulse Width, or Peri 9 Abnormal Update Rate

When to check J1939 data link troubleshooting?

When you are checking the [&data&] [&link&], if the problem is not present, the [&data&] [&link&] will show [&good&]. 7.The J1939 [&data&] [&link&] may be referred to as data bus, or CAN as well. 8.A module is capable of being connected to the public and private [&data&] [&link&], but the information remains separate.

What is the SPN code for Caterpillar J1939?

The Society of Automotive Engineers (SAE) developed the J1939 standards and SPN code terms have been assigned for specific parameters (component or system circuits) that diagnostic trouble codes (DTC) are associated with. Only the SPN numbers that are intended to be used on Caterpillar ® products are listed.

What does the VIN number on a Freightliner car mean?

Every Freightliner car has a unique identifier code called a VIN. This number contains vital information about the car, such as its manufacturer, year of production, the plant it was produced in, type of engine, model and more.

What is the diagnostic code for Caterpillar J1939?

CATERPILLAR REGENERATION SYSTEM PID/SID-FMI J1939 SPN-FMI Diagnostic Code Description 168-2 168-2 Intermittent Battery Power to ECM 171-3 171-3 Outside Air Temp Sensor Voltage High 171-4 171-4 Outside Air Temp Sensor Voltage Low 171-11 171-11 No Outside Air Temp Data 172-2 172-2 Air Inlet Temperature Incorrect
