Three-address instruction is a format of machine instruction. It has one opcode and three address fields. One address field is used for destination and two address fields for source. Example: X = (A + B) x (C + D)

What is an instruction what is instruction format give an example for three address instruction?

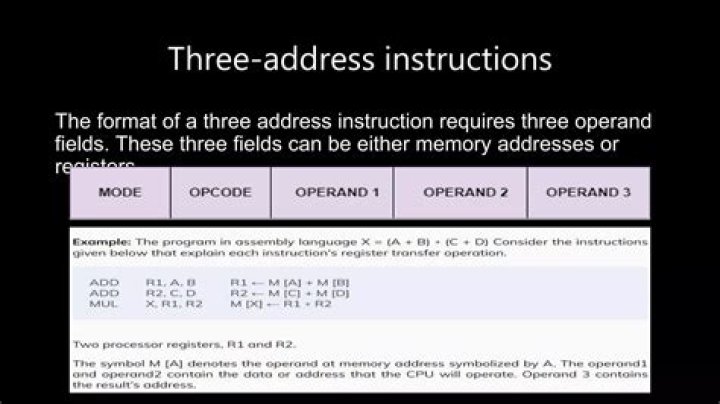

THREE-ADDRESS INSTRUCTIONS ADD R1, A, B R1 ← M [A] + M [B] ADD R2, C, D R2 ← M [C] + M [D] MUL X, R1, R2 M [X] ← R1 * R2 It is assumed that the computer has two processor registers, R1 and R2. The symbol M [A] denotes the operand at memory address symbolized by A.

What are the 3 types of instruction format?

• Operation field specifies the operation to be performed like addition.
• Address field which contains the location of the operand, i.e., register or memory location.
• Mode field which specifies how operand is to be founded.

What is instruction explain instruction format?

Instruction format describes the internal structures (layout design) of the bits of an instruction, in terms of its constituent parts. An Instruction format must include an opcode, and address is dependent on an availability of particular operands.

What is instruction explain various types of instruction formats with example?

Instruction Format TypeZero Address InstructionExampleMOV R1 , R2 ADD AX , BXInstruction Format TypeThree Address InstructionInstruction FormatExampleADD R1 , R2 , R3 SUB R1 , R2 , R3

What is instruction format direct and indirect address instruction with suitable example?

S.NODirect Addressing ModeIndirect Addressing Mode2.Requires only one memory referenceRequires two memory references

What are two address instructions?

Two-Address Instructions : Two-address instruction is a format of machine instruction. It has one opcode and two address fields. One address field is common and can be used for either destination or source and other address field for source.

What do you mean by instruction format describe one byte 2 byte and 3 byte instructions of 8085?

The 8085 instruction set is classified into 3 categories by considering the length of the instructions. In 8085, the length is measured in terms of “byte” rather then “word” because 8085 microprocessor has 8-bit data bus. Three types of instruction are: 1-byte instruction, 2-byte instruction, and 3-byte instruction.

What are 5 types of instruction operations?

• Data handling and memory operations.
• Arithmetic and logic operations.
• Control flow operations.
• Coprocessor instructions.
• Number of operands.

What is zero address instruction format give an example?

Zero-address instruction is a format of machine instruction. It has one opcode and no address fields. Example: X = (A + B) x (C + D) Solution: LOAD A AC <- M[A] PUSH A TOS <- A PUSH B TOS <- B ADD TOS <- (A + B) PUSH C TOS <- C PUSH D TOS <- D ADD TOS <- (C + D) MUL TOS <- (C + D) x (A + B) POP X M[X] <- TOS.

Article first time published on

What is instruction format Tutorialspoint?

Instruction format supports the design of bits in an instruction. It contains fields including opcode, operands, and addressing mode. The instruction length is generally preserved in multiples of the character length, which is 8 bits.

Is used in zero address instruction format?

RISC architecture. CISC architecture. Von-Neuman architecture.

What is instruction format in microprocessor?

An instruction is a command to the microprocessor to perform a given task on a specified data. Each instruction has two parts: one is task to be performed, called the operation code (opcode), and the second is the data to be operated on, called the operand.

How many instruction formats exist in basic computer?

A basic computer has three instruction code formats which are: Memory – reference instruction. Register – reference instruction. Input-Output instruction.

What are the components of instruction format describe?

An instruction format defines the different component of an instruction. The main components of an instruction are opcode (which instruction to be executed) and operands (data on which instruction to be executed).

What are the most common fields of an instruction format?

The most common fields in instruction formats are: An Operation code field that specifies the operation to be performed. An Address field that designates a memory address or a processor register. A Mode field that specifies the way the operand or the effective address is determined.

What is the one address instruction?

2. One Address Instructions – This use a implied ACCUMULATOR register for data manipulation. One operand is in accumulator and other is in register or memory location. Implied means that the CPU already know that one operand is in accumulator so there is no need to specify it. Expression: X = (A+B)*(C+D)

What are different instruction types?

• Arithmetic Instructions.
• Branch Instructions.
• Data Transfer Instructions.
• Logic Instructions.
• Bit-oriented Instructions.

Which is a single address instruction?

single-address instruction An instruction that makes explicit reference to only one operand location; the source of any required second operand is implied.

What is direct address and indirect address?

Direct addressing provides the full address of the main memory in the instruction, where the is stored. On the other hand, in indirect addressing mode, the address is stored at the address field of the instruction.

What is indirect address?

An address serving as a reference point instead of the address to the direct location is referred to as an indirect address. For example, a file saved to an indirect address in memory may be stored in any free area rather than a specific address.

Which of the following instructions is an example of indirect addressing?

Indirect addressing is a scheme in which the address specifies which memory word or register contains not the operand but the address of the operand. For example: 1) LOAD R1, @100 Load the content of memory address stored at memory address 100 to the register R1.

How many types of instruction are there?

There are three types of data manipulation instructions: Arithmetic instructions, Logical and bit manipulation instructions, and Shift instructions.

What are the four different types of instructions?

• Arithmetic: add (addition), sub (subtraction), mult (multiplication), div (division)
• Logical: and , or , srl (shift right logical), ssl (shift left logical)

Which is a 3 byte instruction?

Three-byte instructions – Three-byte instruction is the type of instruction in which the first 8 bits indicates the opcode and the next two bytes specify the 16-bit address. The low-order address is represented in second byte and the high-order address is represented in the third byte.

Which of the following instruction is a 3 byte instruction?

Que.In a 3 byte instruction of 8085, the first, second and third byte respectively indicateb.low order byte of data / address, high order byte of data / address and operation codec.high order byte of data / address, low order byte of data / address and operation code

Which one of the following instruction is 3 byte instruction?

3. STA is 3-byte instruction.

What is an instruction cycle explain?

The instruction cycle (also known as the fetch–decode–execute cycle, or simply the fetch-execute cycle) is the cycle that the central processing unit (CPU) follows from boot-up until the computer has shut down in order to process instructions.

What is instruction code?

An instruction code is a group of bits that instruct the computer to perform a specific operation. • The operation code of an instruction is a group of bits that define operations such as addition, subtraction, shift, complement, etc.

What is the instruction format of 8085 microprocessor?

The Instruction Format of 8085 set consists of one, two and three byte instructions. The first byte is always the opcode; in two-byte instructions the second byte is usually data; in three byte instructions the last two bytes present address or 16-bit data.

What are instruction formats supported by 8085 microprocessor explain with examples?

Instruction SetExplanationExampleSHLD addr [addr] ←[L], [addr +1] ← [H]Store H-L pair directSHLD 2500 HLDAX rp [A] ←[[rp]]Load accumulator indirectLDAX BSTAX rp [[rp]] ←[A]Store accumulator indirectSTAX DXCHG [H-L] ↔[D-E]Change the contents of H-L with D-E pair
