Egress Stairs are exit access stairways that incorporate an area of rescue assistance within an enlarged floor-level landing. It provides a protected path that is continuous and unobstructed of egress travel to the exit discharge or public way. … Egress Stairs do not have to be enclosed.

Are all stairs means of egress?

Conclusion. There are many cases where the IBC allows open stairs. When open stairs are used as part of the means of egress for a building, they are considered “exit access stairways.” Otherwise, they would fall under the “stairway” definition in the code.

What are the means of egress components for a stairwell?

Doors, stairs, ramps, and exit passageways are the most common means of egress components. The code also permits fire escape, ladder, alternating tread devices, and slide escapes in certain occupancies.

What does mean of egress mean?

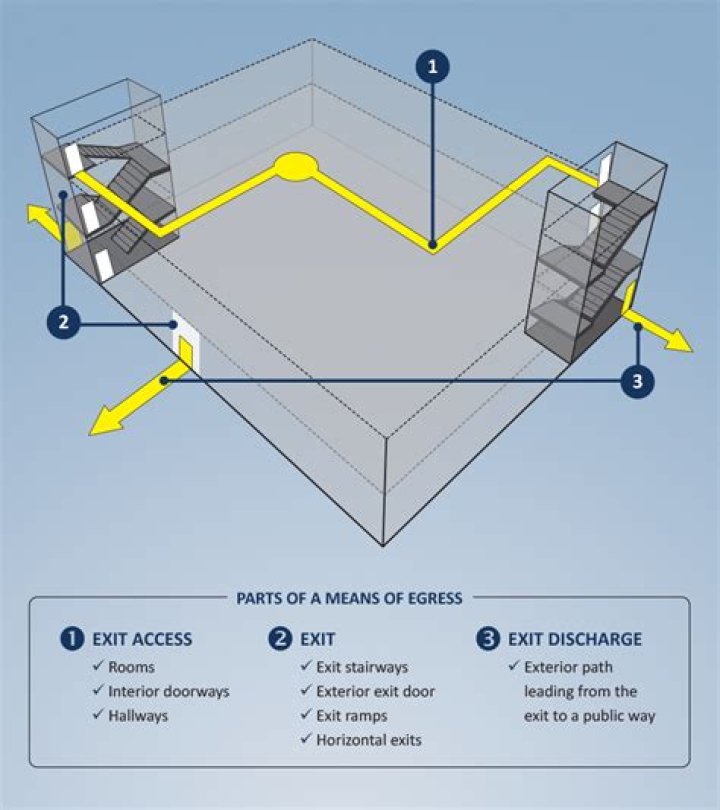

of Egress: A means of egress is a continuous and unobstructed way of exit travel from any point in a building or structure to a public way and consists of three separate and distinct parts: the way of exit access; the exit; and the way of exit discharge.

Is egress and exit the same?

As verbs the difference between egress and exit is that egress is to exit or leave; to go or come out while exit is to go out.

What are egress requirements?

Basement Egress Window Requirements The bottom of the egress window opening can’t exceed 44″ from the finished floor. The minimum opening area of the egress window is 5.7 square feet. The minimum egress window opening height is 24″ high. The minimum egress window opening is 20″ wide.

How many egress stairs do I need?

The IBC requires at least two means of egress from all spaces and buildings with few exceptions. Some spaces and buildings are allowed to have one means of egress if the travel distance to an exit is short and the occupant load is low.

What is common path of egress?

COMMON PATH OF EGRESS TRAVEL. That portion of the exit access travel distance measured from the most remote point within a story to that point where the occupants have separate access to two exits or exit access doorways.

What is opposite of egress?

The act of entering something — like a building or a highway — is called ingress (antonym “egress”).

What requirements must exit routes meet?

An exit route must meet minimum height and width requirements. The ceiling of an exit route must be at least seven feet six inches (2.3 m) high. Any projection from the ceiling must not reach a point less than six feet eight inches (2.0 m) from the floor.

Article first time published on

Can an elevator be a means of egress?

Unlike the required means of egress, elevators can be used as a part of an accessible means of egress. And for buildings with an accessible floor located four or more stories above the level of exit discharge, at least one elevator is required as part of the accessible means of egress (IBC 1009.2. 1).

What are egress windows for?

An egress window looks just like a regular large window, but opens fully to allow a building’s inhabitants to escape in the event of an emergency, such as a house fire. … And an egress window installed below ground level (also known as “below grade”) requires a “window well.”

What is an egress gate?

An egress door is designed to allow an easy escape from a building in the case of an emergency or during an evacuation. … That means if your business has hallways and walkways that lead to the emergency exit, any and all doors installed along the way become egress doors.

What is code for stairs?

The stair riser code is up to 7.75 inches, and can not vary more than 3/8 of an inch. … The tread depth code for residential stairs should be no less than 10 inches with nosing, no less than 11 inches without nosing, and maximum tread depth variation should also be less than 3/8 of an inch.

What is code for stair height?

(1) The rise of every step in a stairway shall be not less than 4 inches nor greater than 7 1/2 inches. (2) The run shall not be less than 10 inches as measured horizontally between the vertical planes of the furthermost projection of adjacent treads.

Is a landing required for stairs?

Stairways must have a landing, top and bottom, equal to the width of stairs. The minimum dimension measured in the direction of travel shall equal to the width of the stairway, but need not exceed 48” where the stairway has a straight run.

Do bedrooms need two means of egress?

Technically, a bedroom must have two means of egress, so a second door will suffice, but it must open to the outside, which makes the exterior door a less practical solution. Not any window will do. It must have a minimum opening area of 5.7 sq.

Do egress windows have to open?

Egress regulations actually only apply to rooms like bedrooms and home offices that don’t have doors opening to outside. Egress laws for at least one window in these rooms require the following: The window must open a minimum width of 20 inches. The window must open a minimum height of 24 inches.

What is ingress & egress?

Ingress refers to the right to enter a property, while egress refers to the right to exit a property. For example, a driveway provides ingress and egress from roadways to houses and businesses.

What does egress mean in real estate?

The right of egress is the legal right to exit or leave a property. The right of egress is usually used in conjunction with the right of ingress, which means the legal right to enter a property. Ingress and egress rights are important to homeowners since they allow access to their property.

How do you use egress in a sentence?

1. I had a panic attack in the haunted house when I could not find an egress leading to the outside.
2. According to local fire codes, the store must have an egress in the front and in the rear in case an emergency withdrawal is necessary.

How is egress distance measured?

Exit access travel distance shall be measured from the most remote point of each room, area or space along the natural and unobstructed path of horizontal and vertical egress travel to the entrance to an exit.

What is exit separation?

If only two exits are required, they shall be placed a distance apart equal to not less than one-half the length of the maximum overall diagonal dimension of the building or area to be served measured in a straight line between exits. …

Where does common path of egress start?

A common path of travel exists in the initial portion of the exit access where a space is arranged so that occupants within that space can travel in only one direction to reach any of the exits or to reach the point at which they have the choice of two paths of travel to two different remote exits.

Why is it important not to block fire exits?

Obstructions in fire exit routes, such as boxes, equipment, stock etc. can in a fire cause people to fall, seriously hurt themselves, and even block the exit passageway for others. Keeping exit passageways clear of obstacles enables people to exit a building more quickly and safely.

What is the difference between fire exit and emergency exit?

As the title of this article suggests, the Standard did not and still does not acknowledge the phrase ‘Emergency exit’. … Signs leading to and denoting the door that is only used in the event of an emergency (usually with a push bar or push pad on them) should be marked as ‘Fire exit’.

What happens if you open an emergency exit door in a building?

Most emergency exits will sound an alarm if opened, which can be a pain in the butt to get shut off. So if someone stopped you from using that exit when you had no emergency, they had the right to do so. There are various issues with doors to public buildings.

Which of the following would not be considered egress?

Three examples of building transportation systems that ARE NOT considered part of the egress system. … Examples would include fire sprinkler systems, fire alarm system and smoke pressurization systems.

Is emergency power required for elevators?

What are the standby power requirements of elevators? With more and more elevators being used by the public each day, building codes require at least 90 minutes of full load backup power for elevators in high-rise buildings to ensure the safety of passengers in the event of a utility power failure.

How do I know if my window is egress?

For determining egress window sizes and placement, the International Building Code advises that every bedroom must contain at least one egress window. It must be at least 5.7 square feet, 20 inches wide by 24 inches high, with an opening no higher than 44 inches from the floor.

What is emergency egress?

Emergency egress is a method of exit which people can access safely in an emergency. … Adequate means of escape for the occupants of a building in the event of a fire are a fundamental aspect of both legal obligations and good fire safety planning.
