A. D. A transistor that is normally closed (on), allowing current to pass, but is triggered to open (off) and impede current. Contrast with “enhancement mode,” wherein the transistor is normally open (off), but is triggered to close (on).

What is depletion mode in JFET?

JFETs are therefore known as depletion mode devices. This depletion region produces a potential gradient which is of varying thickness around the PN-junction and restrict the current flow through the channel by reducing its effective width and thus increasing the overall resistance of the channel itself.

How does depletion mode work in MOSFET?

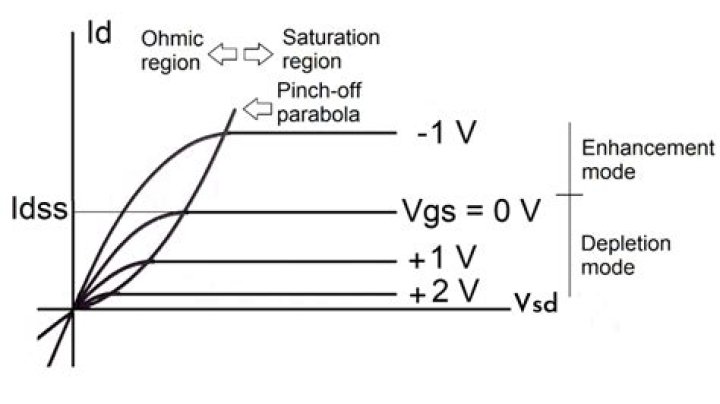

About The Depletion-mode MOSFETs A current Id will flow, making the gate-to-source voltage Vgs = 0 and applying a voltage between drain and source (Vds). When Vds is large enough to produce pinch-off, the drain current that flows is the saturation current Idss. Vgs controls the channel depth and conductivity.

What is the meaning of depletion MOSFET?

Depletion-type MOSFETS are MOSFETs that are normally on. When you connect a depletion-type MOSFET, current flows from drain to source without any gate voltage applied. This is why it is called a normally on device. … They will not conduct current if there is no voltage applied to its gate lead.

Where is depletion MOSFET used?

Depletion MOSFETs are widely used in a start-up circuit of auxiliary power supplies. To power up a PWM IC in a flyback circuit a very common method is shown in Figure 6. A resistor is connected between the positive rail (for example the rectified mains voltage or a PFC voltage) and the IC’s capacitor, C.

Which Mosfet is better enhancement or depletion?

The mosfet enhancement type mode will be disabled for the gateway at source 0v because there is no channel to conduct. The type of depletion mosfet leads to 0v at a positive cut-off grid voltage, so less preferable. … The depletion mosfet is free of leakage current below threshold and gate oxide leakage current.

What is the difference between depletion mode and enhancement mode?

Depletion mode MOSFET is normally turned on at zero gate voltage. Such devices are used as load resistors. MOSFETs with enhancement modes are the common switching elements in most MOSs. These devices are deactivated at zero gate voltage and can be switched on by powering the gate.

Where are MOSFETs used?

Power MOSFETs are commonly used in automotive electronics, particularly as switching devices in electronic control units, and as power converters in modern electric vehicles. The insulated-gate bipolar transistor (IGBT), a hybrid MOS-bipolar transistor, is also used for a wide variety of applications.

Can an enhancement Mosfet work in depletion mode?

DE-MOSFET can be operated with either a positive or a negative gate. When gate is positive with respect to the source it operates in the enhancement—or E-mode and when the gate is negative with respect to the source, as illustrated in figure, it operates in depletion-mode.

What is the difference between enhancement Mosfet and depletion Mosfet?

Enhancement MOSFET does not conduct at 0 volt, as there is no channel in this type to conduct. Depletion MOSFET conducts at 0 volt. Moreover when positive cut-off gate voltage is applied to depletion MOSFET, hence it is less preferred. … Depletion MOSFET logic operations are opposite to enhancement type of MOSFETs.

Article first time published on

Why Mosfet is preferred over BJT?

mosfet is much faster than bjt because in a mosfet, only majority carriers are the current. … mosfet has a very high input impedance in the megohms range while bjt in the kiloohms range . thus making the mosfet very ideal for amplifier circuits. mosfets are less noisy than bjts.

What is the minimum voltage required to operate a Mosfet?

1) a Vgs between 3-5V will turn on the MOSFET. 2) Vgs must be greater than 5V, since that is the minimum voltage required to turn on the MOSFET.

How does a JFET work?

A JFET is a three terminal semiconductor device in which current conduction is by one type of carrier i.e. electrons or holes. The current conduction is controlled by means of an electric field between the gate and the conducting channel of the device. The JFET has high input impedance and low noise level.

What are the advantages of depletion mode devices over the enhancement mode devices?

Depletion devices are awesome for startup circuits, to provide some small current during the circuit’s power-up sequence and to be shut off when it is finished. Their “default-on” characteristic is what makes them useful here. You can find a number of high voltage depletion devices built for this purpose on the market.

How can you tell if a Mosfet is enhancement or depletion?

For an n-channel FET, if the Vgs(th) is greater than 0, then it’s an enhancement mode device. If Vgs(th)<0 it’s a depletion mode device. For p-channel, it’s the opposite: Vgs(th)<0 means enhancement mode, Vgs(th)>0 means depletion mode.

What are two modes of Mosfet?

There are two classes of MOSFETs. There is depletion mode and there is enhancement mode.

How many terminals can a Mosfet have?

The MOSFET has four terminals: drain, source, gate, and body or substrate.

What are types of Mosfet?

• PMOS Logic. As previously mentioned, the integration of a MOSFET allows for high levels of circuit efficiency when compared with BJTs. …
• NMOS Logic. …
• CMOS Logic. …
• Depletion Mode MOSFET Devices. …
• MISFETs. …
• Floating-Gate MOSFETs (FGMOS) …
• Power MOSFETs. …
• DMOS.

Why is Mosfet important?

Importance. The MOSFET forms the basis of modern electronics, and is the basic element in most modern electronic equipment. It is the most common transistor in electronics, and the most widely used semiconductor device in the world.

How does a Mosfet function?

MOSFET (metal-oxide semiconductor field-effect transistor, pronounced MAWS-feht ) is a special type of field-effect transistor ( FET ) that works by electronically varying the width of a channel along which charge carriers ( electron s or hole s) flow. The wider the channel, the better the device conducts.

Which is the fastest switching device?

Detailed Solution Amongst BJT, MOSFET, JEFT and Triode, MOSFET is the fastest switching device because of its quickest response.

How MOSFET works as a switch?

The two MOSFETs are configured to produce a bi-directional switch from a dual supply with the motor connected between the common drain connection and ground reference. When the input is LOW the P-channel MOSFET is switched-ON as its gate-source junction is negatively biased so the motor rotates in one direction.

What is the disadvantage of MOSFET?

Has a short life. Required repeated calibration for accurate dose measurement. They have very susceptible to overload voltage, hence due to installation special handling is to be required.

What type of carriers are controlled in a MOSFET?

Thus a MOSFET is a voltage controlled majority carrier device while a BJT is a minority carrier bipolar device. With gate-source voltage (VGS) below the threshold voltage (vGS (th)) the MOSFET operates in the cut-off mode.

What is difference between Transistor and MOSFET?

The only difference is in function. A MOSFET is a type of transistor commonly used in switching/amplifier type applications, as they are usually designed for higher power use (so called “high power” transistors are mostly MOSFET and Darlington type).

What does MOSFET mean?

MOSFET stands for metal-oxide-semiconductor field-effect transistor. It is a field-effect transistor with a MOS structure. Typically, the MOSFET is a three-terminal device with gate (G), drain (D) and source (S) terminals.

Where are JFETs used?

The JFET transistors are used as electronically controlled switches, Voltage controlled resistors and as amplifiers. BJT transistors are constructed with the PN-junctions but the JFET transistors have a channel instead of the PN-junctions.

Why JFET is voltage controlled device?

JFET is a three-terminal device and since gate voltage controls the drain current, JFET is called a voltage-controlled device. JFET’s have only a depletion mode of operation. … Thus drain current in JFET is controlled by changing the channel width.

What is Pinchoff voltage?

Pinch-off voltage may refer to one of two different characteristics of a transistor: … in junction field-effect transistors (JFETs), “pinch-off” refers to the threshold voltage below which the transistor turns off. the pinch off voltage is the value of Vds when drain current reaches constant saturation value.

How the body effect can overcome in MOSFET?

The body effect is the threshold voltage variation due to the bulk/source voltage. To cancel the body effect you need to tie both S and B to the same potential.

Which of the following devices is operated in both depletion and enhancement mode?

MOSFET stands for Metal Oxide Silicon Field Effect Transistor or Metal Oxide Semiconductor Field Effect Transistor. This is also called as IGFET meaning Insulated Gate Field Effect Transistor. The FET is operated in both depletion and enhancement modes of operation.
