Pitman Arm: The Pitman arm connects the steering box, attached to the bottom of the steering shaft, and the center/drag link. The Pitman arm converts the radial motion of the steering column or shaft into the linear motion that turns the automobile’s wheels.

What connects to the pitman arm to the idler arm?

Attached between the ends of the pitman arm and the idler arm is the track rod. The track rod is used to transfer the steering motion to both sides of the vehicle. To transfer the motion to the steering knuckle we have two components.

Is the pitman arm connected to the steering gear?

The steering gear shaft turns in direct relation to input from the driver. The pitman arm attaches to the steering gear shaft and acts as a lever, converting torque from the steering gear to mechanical force for movement of the steering linkage.

What connects the pitman arm to the center link?

The drag link, sometimes also called the center link, connects the pitman arm to the steering arm. In some vehicles, it connects to the tie rod assembly. The drag link is the element that keeps both of your two front steering wheels in line.

What component in the gearbox attaches to the pitman arm?

Linkage Components. The gearbox is connected to the front wheels by the steering linkage. The opposite end of the sector shaft, outside the gearbox, connects to a Pitman arm. The Pitman arm connects to a center link or drag link, which in turn connects to tie rods, which connect to the steer- ing knuckles.

Where does the pitman arm go?

The pitman arm is part of the steering component in your vehicle. It is connected to the sector shaft and moves in a circular motion with the help of the ball joint.

Is a pitman arm and idler arm the same thing?

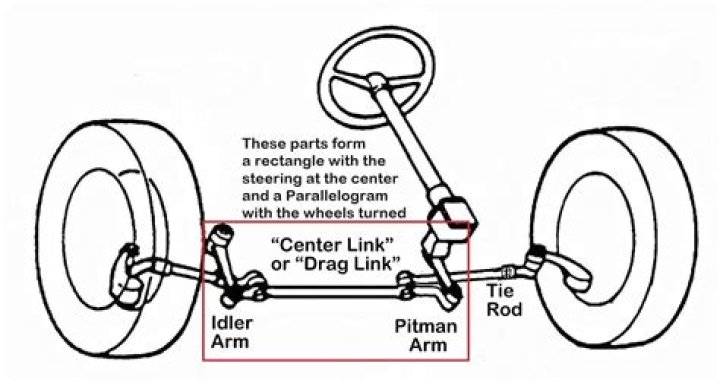

The arm that connects the steering box to the steering link is called the Pitman arm. On the passenger’s side, the other end of the steering link is attached to the frame via a similar looking arm, but this arm is bolted to the frame via a shock absobring bracket. This assembly is called the idler arm and bracket.

What is a pitman arm tie rod?

The pitman arm moves the steering rack according to how you steer. Again, like in the rack-and-pinion system, the steering rack is connected to the tie rods, which are connected to the steering arms. The tie rods are the connection from your steering system to your wheels.

What side is the idler arm on?

Generally, an idler arm is attached between the opposite side of the center link from the pitman arm and the vehicle’s frame to hold the center link at the proper height so it can accurately relay the pitman arm’s movement.

What is the name of the part that connects the steering column to the rest of the steering system?

The steering coupler connects the steering wheel and shaft to the steering gear. If your vehicle has hydraulic power steering, there are two main power steering hoses: the high side (high pressure) hose and the low side (low pressure) hose. Both are attached to the rack and pinion with threaded brass fittings.

Article first time published on

What steering linkage system is used with the gearbox?

The parallel and Haltenburg linkages are used with a steering gear box. The rack and pinion linkage is used with a rack and pinion steering gear.

What is the Pitman?

Definition of pitman 1 plural pitmen\ ˈpit-​mən \ : a man who works in or near a pit: such as. a British : miner. b : a sawyer who stands below the timber. 2 plural pitmans : connecting rod.

Is there another name for a pitman arm?

Synonyms for pitman armpit·man arm.

What connects the tie rod to the tie rod end?

Ball joints and tie rod ends are not connected to each other but are both connected to a mechanism called a spindle. This spindle is connected to your front wheel.

What connects to inner tie rod?

The inner and outer tie rods connect to the steering arm in order to move the wheels of your vehicle. In the common rack-and-pinion steering system, the inner tie rods connect to the steering rack while the outer tie rods connect to the steering arms.

What does the idler and Pitman arm do?

The pitman arm is attached to the gearbox; it turns the center link as the driver steers the vehicle. The idler arm provides for swivel movement and resists up and down movement. This resistance is vital in maintaining a vehicle’s toe setting. When steering linkage gets loose, a vehicle will begin to shimmy.

Does a Pitman arm have a ball joint?

Wooden Pitman arms usually employed a simple wooden bushing around a steel shaft at both ends. The later steel Pitman arms usually used a ball joint at the lower pivot point and a ball bearing for the Pitman bearing at the top.

What connects the steering column to the wheels?

The steering column and rack are joined with a gear wheel called a pinion. Most vehicle steering systems also include some kind of power-assist to make it easier for the driver to turn the steering wheel, i.e., power steering (anyone who has driven a pre-1970s vehicle knows how helpful this is!).

Can a bad pitman arm cause death wobble?

While death wobble will cause the steering stabilizer to fail, it is not the result of a worn out stabilizer. … Worn tie rods, idler arm, track bar, wheel bearings, pitman arm, steering center link and shaft, ball joints, alignment and even tire pressure can combine to cause the death wobble.

How does a pitman arm break?

IF your pitman arm is weak and ready to break, its pretty much guaranteed that it will break at low speed turning in a parking lot or something, because the force on the pitman arm is MUCH MUCH more at low speed/higher turning force.

What does the idler pulley do?

The idler pulley is a common part that’s found on the majority of the vehicles on the road. Its primary function is to provide tension and guide the engine drive belt. These belts wrap around the various parts of the engine such as the power steering pump, alternator, water pump etc…

What does idler arm bracket do?

The idler arm is used on vehicles with conventional suspension systems and parallelogram steering. … Essentially, the idler arm is a pivoting support for the steering linkage. The idler arm consists of a bracket, an arm that connects the bracket to the centre link of the steering linkage, and an internal pivot bearing.

What are the symptoms of a bad idler pulley?

• Chattering, Squealing, or Chirping Sound. …
• Corroded Surface. …
• Excessively Loose Idler Pulley. …
• A Bad Idler Pulley May Spin Excessively. …
• Slow to No Spin or Binding.

What are drag link sockets used for?

Drag link sockets are built for removing a piece of steering linkage common to trucks and jeeps. They can also be used for large slotted bolts or studs.

What is a truck drag link?

Function: A drag link connects the pitman arm on the steering gear with the steering arm on the spindle. Rotation of the steering gear input shaft causes the pitman arm to rotate back and forth. As this motion occurs, the drag link pushes or pulls the steering arm causing the wheel to pivot on its king pin.

What is the another name for steering link rod?

Automotive use Typically, one end of the drag link is connected via the drop arm (also called Pitman arm) and steering gearbox to the steering wheel (providing the connection between the driver and the steering system); the other end is attached to one of the wheels by the steering arm.

What is steering wheel rack?

Part of a rack-and-pinion steering system, the rack is a bar parallel to the front axle that moves left or right when the steering wheel is turned, aiming the front wheels in the correct direction. The pinion is a small gear at the end of the vehicle’s steering column that engages the rack.

What is a steering arm?

Definition of steering arm : an arm for transmitting the turning force from the steering gear to the drag link especially of an automotive vehicle.

What is the steering connected to?

A steering linkage is the part of an automotive steering system that connects to the front wheels.

Does rack and pinion steering have a pitman arm?

Rack and pinion systems are lighter because they don’t require the idler arms, Pitman arms, center links, and tie rod sleeves found in conventional steering systems.

What is steering gear and linkage?

This includes the steering wheel, steering gear box, pitman arm, drag link, tie rods, steering arms, and steering knuckles which support the wheels. … Turning the steering wheel left or right turns the steering shaft to which a worm gear is attached within the gear box.
