With a bonded neutral generator, the neutral is connected to the frame of the generator. … This ensures that electricity will flow properly through the neutral conductors and is delivered to one bonded location — eliminating unpredictable stray voltages caused by connecting to the ground twice.

Does a bonded neutral generator need to be grounded?

Bonding the Neutral are considered a “separately derived system” in the National Electrical Code, and thus, the neutral must be bonded to the frame of the generator. … When used as a stand-alone floating neutral generator, at least the frame of the generator must to be bonded to earth ground.

What is the difference between floating neutral and bonded neutral?

With a bonded neutral generator, the neutral is connected to the frame of the generator. … A floating neutral generator’s neutral circuit is not connected to the generator’s frame or the ground, meaning it is required to connect the neutral to your existing panel neutral.

Are portable generator bonded neutral?

Portable generators used on job sites have the neutral and ground bonded in order to meet OSHA regulations. When connected to a switched-neutral transfer switch, the generator’s neutral-ground bond will have to be removed, which then requires the addition of a grounding electrode and a bond at the transfer switch.

What happens if you don't ground a generator?

If your generator isn’t grounded, that path of least resistance could allow electricity to flow in places it shouldn’t be – which can cause electrocution, spark a fire, or cause other dangerous situations. Grounding provides a backup path of least resistance for electricity to flow.

Are Honda generator bonded neutral?

In most Honda portable gas generators the neutral circuit is not bonded to the frame of the generator or to the earth ground lead; and are commonly called Floating Neutral generators.

Why do we bond neutral to ground?

Normal circuit currents flow only in the neutral, and the protective earth conductor bonds all equipment cases to earth to intercept any leakage current due to insulation failure. … The neutral conductor is connected to earth ground at the point of supply, and equipment cases are connected to the neutral.

Can I connect my generator to house ground?

Do NOT separately ground your generator. It should tie in to your house’ ground the same way any appliance would. Using a separate ground at the generator can actually be dangerous if there is a nearby lightning strike or a failure of the local electrical utility’s infrastructure.

What does neutral floating mean on a generator?

Most Champion Power Equipment generators have a “floating neutral”, meaning that the neutral circuit is not connected to the frame or to earth ground. This also means that both legs on the receptacle are hot legs, which is normal for floating neutral generators.

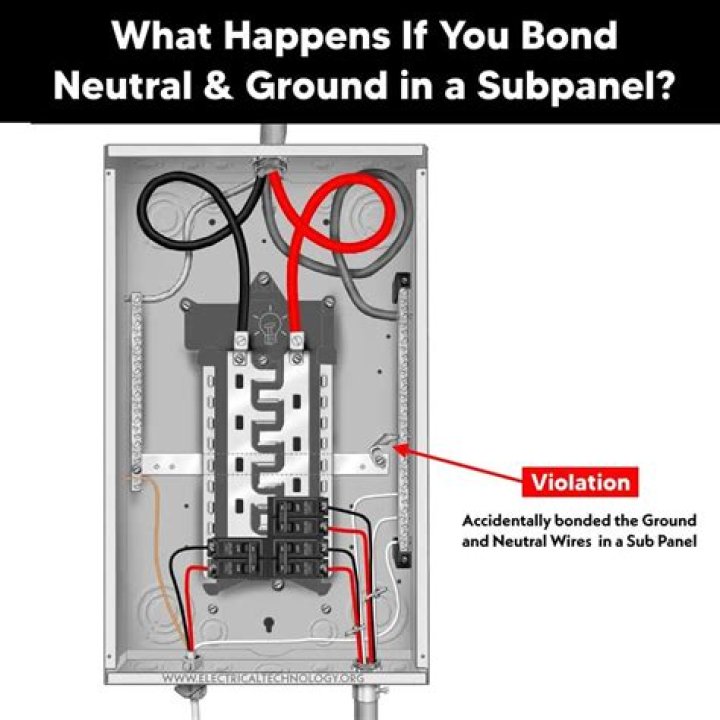

What happens if you bond a sub panel?

Corrosion can happen because of improper subpanel bonding as well. This is because the excessive electrical currents (coming from the hot, neutral, and ground wires) can accelerate the rate at which metal pipes or buildings start to erode.

Article first time published on

Does a generator need to be earthed?

All generators need to be earthed unless floating. … But Earth can be, and is, used for fault protection with low-voltage generator based installations.

Does a home generator need a ground rod?

If the portable generator is providing electric power to a structure by connection via a transfer switch to a structure (home, office, shop, trailer, or similar) it must be connected to a grounding electrode system, such as a driven ground rod.

Do I need to ground my generator when camping?

It is not always necessary to ground your generator. Most manufacturers bond the components to the generator’s frame which acts as a ground wire for you. You will need to ground the generator if you are plugging it into a wired circuit system or if you want to plug electrical appliances directly into the generator.

Why does my refrigerator trip my generator?

Older household appliances (freezers, refrigerators, etc) may be prone to electrical leakage and can cause the GFCI to trip. If this happens, contact appliance manufacturer to get more information. … This will damage your generator and cause a potential electrical hazard.

When would you use a floating neutral generator?

The floating neutral eliminates the potential of being shocked by contacting a hot leg and the generator frame at the same time, which could occur if an electrical device such as a hand held tool suffered from an internal short circuit.

What happens if neutral is not grounded?

Hazard of Open Service Neutral If the grounded (neutral) service conductor is opened or not provided at all, objectionable neutral current will flow on metal parts of the electrical system and dangerous voltage will be present on the metal parts providing the potential for electric shock.

Can I connect neutral to ground?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.

Can a portable generator run in the rain?

Instructions for a portable generator warn you not to run it in the rain. To protect it from moisture, the Consumer Product Safety Commission recommends operating it on a dry surface under an open, canopy-like structure. Overusing extension cords.

When should I ground my generator?

All generators should be checked yearly for the integrity of the connection between the generator’s frame, and the equipment grounding terminals of power receptacles are essential to the safe use of the equipment. The connection may be confirmed via testing by a competent electrician with the correct equipment.

When should you bond neutral and ground?

To prevent a fire, electric shock, improper operation of circuit protection devices, as well as improper operation of sensitive equipment , the grounding of electrical systems, the bonding of equipment and circuit conductors must be done in a manner that prevents objectionable current (neutral return current) from …

Does neutral wire carry voltage?

Voltage is carried by the live conductor, but a neutral conductor is also necessary for two important functions: Serving as a zero voltage reference point. Completing the circuit, providing a return path for the current supplied by the live conductor.

Should neutral and ground be separated at the panel?

The National Electrical Code (NEC) requirement for separated neutrals and grounding wires in a subpanel and separate neutral and grounding conductors back to the main panel, when both panels are in the same building, dates to the 1999 revision.

Do all generators have GFCI outlets?

All 125-volt and 125/250-volt, single-phase, 15-, 20-, and 30-ampere receptacle out-lets that are a part of a 15 kW or smaller portable generator shall have listed ground-fault circuit-interrupter protection for personnel. … Any new generators must incorporate GFCI protection.

What is a separately derived bonded neutral system?

A separately derived system is a premises wiring system with no direct electrical connection to conductors originating from another system [Art. … Generators that supply a transfer switch that opens the grounded neutral conductor would be considered separately derived [250.20(D) FPN 1].

Does the neutral need to be switched?

Summary: The general rule is when you have a grounded neutral at both the generator and the utility, you must use a transfer switch with enough poles to switch the neutral. If you ground the neutral in both places, you create undesirable multiple paths for ground current to flow.

What does switched neutral mean?

Switched Neutral. A switched neutral transfer switch only allows the utility or generator neutral to be connected to the building load at a time. Since the neutral is switching between sources another pole on the transfer switch is required.

What size wire do I need to ground a generator?

The gauge of the grounding wire is important. The electric code specifies at least #6 or #8 copper wire for a domestic grounding rod. Though, for most portable generators this could be overkill.

Can you hook up two generators to a house?

Yes, generators can be run in parallel. However, in reality it requires more control over the prime mover (motor) than typical consumer gensets provide. You need to be able to adjust both frequency and voltage on the generators and get the phase in sync as the connection is being made.

Can ground and neutral be on the same bar?

If the main service panel happens to be the same place that the grounded (neutral) conductor is bonded to the grounding electrode, then there is no problem mixing grounds and neutrals on the same bus bar (as long as there is an appropriate number of conductors terminated under each lug).

Can ground and neutral be on same bar in subpanel?

When Should Grounds & Neutrals Be Connected in a SubPanel? The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

Does subpanel need ground rod?

Yes, any sub panel outside of the main building requires it’s own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod – only the ground wire.
