What is an open-drain circuit?

An open-drain or open-collector output pin is driven by a single transistor, which pulls the pin to only one voltage (generally, to ground). When the output device is off, the pin is left floating (open, or hi-z).

Is open-drain same as open collector?

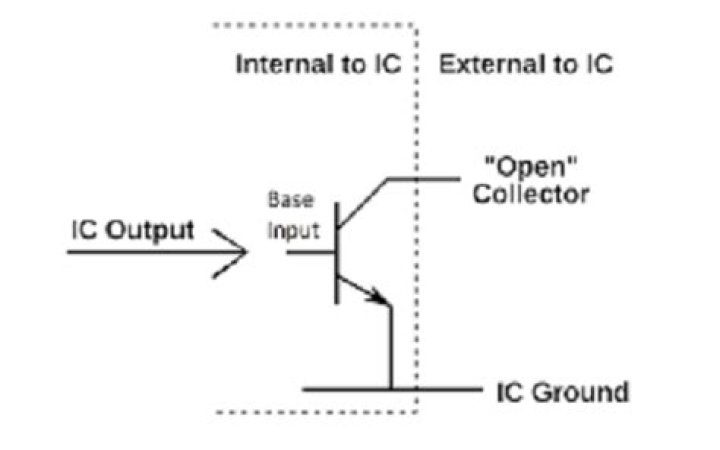

Figure 1: Open drain means the same as open collector, the exception being the type of device (FET device or BJT/bipolar transistor). The term “open drain” means there’s a current sink, but on a FET device, for example, a MOSFET. The term “open collector” refers to a current sink on a transistor output.

Which port pins are open-drain?

The open-drain output configuration turns off all pull-ups and only drives the pull-down transistor of the port pin when the port latch contains logic “0”. To be used as a logic output, a port configured in this manner must have an external pull-up, typically a resistor tied to VDD.

What is open-drain used for?

Open-drain outputs can be useful for analog weighting, summing, and limiting as well as digital logic. An open drain terminal is connected to ground when a high voltage (logic 1) is applied to the gate, yet presents a high impedance when a low voltage (logic 0) is applied to the gate.

What is the use of open drain on a GPIO output pin?

Open-drain outputs are useful when multiple gates or pins are connected together, such as with the I2C bus. When a device is not using the bus, the open-drain output is in high-impedance mode and the voltage level is pulled high by the pull-up resistor.

What is push-pull vs open drain?

While a push-pull sensor has two MOSFETs that alternately conduct to provide high or low output signals, an open drain sensor has only one MOSFET. When a magnetic field turns the open-drain sensor on, the MOSFET conducts, allowing current to sink through the pull-up resistor to ground.

Is PNP an open-collector?

Open-collector (also called open-drain, NPN, or PNP) is a very common type of digital signal. Rather than providing a low-impedance 5 volts and ground, like a push-pull or signal, an open-collector signal provides open and ground. This type of signal can be thought of as a switch connected to ground.

What is GPIO mode?

GPIO stands for General Purpose Input/Output. It’s a standard interface used to connect microcontrollers to other electronic devices. For example, it can be used with sensors, diodes, displays, and System-on-Chip modules.

What does open drain mean in integrated circuit?

Open-Drain Input/Output Configuration An open-drain is commonly found in many integrated circuits . This helps multiple devices to connect with the usage of single wire which is in a mode of pull-down operation.

When does an open drain Switch get disconnected?

Whenever we apply low input at the gate, drain, and source are disconnected. To make it simple, open-drain is like a switch that will get connected or disconnected basing on the input signal given. This article discusses an overview of what is an open drain, circuit, and its working

How does an open drain output pin work?

An open-drain or open-collector output pin is simply a transistor that is connected to the ground. Whenever we apply high input at the gate, drain, and source are shorted. Whenever we apply low input at the gate, drain, and source are disconnected.

How does an open drain GPIO output work?

When the pull-up resistor is activated the I/O pin turns its state to Vdd. Output mode with open-drain configuration is nothing but the top PMOS transistor simply not present. The drain will get open when the transistor is switched off, so the output will float. Open-drain output configuration can’t pull up the pin it can only pull down the pin.

Open-Drain Input/Output Configuration An open-drain is commonly found in many integrated circuits . This helps multiple devices to connect with the usage of single wire which is in a mode of pull-down operation.

Whenever we apply low input at the gate, drain, and source are disconnected. To make it simple, open-drain is like a switch that will get connected or disconnected basing on the input signal given. This article discusses an overview of what is an open drain, circuit, and its working

How does a pump control circuit work automatically?

The bottom switch will be closed provided the liquid is above that switch point. The liquid rises until the top float switch closes and energises the relay. One set of relay contacts connects the pump to the supply and the other maintains the relay on-state, while the level falls towards the bottom switch.

An open-drain or open-collector output pin is simply a transistor that is connected to the ground. Whenever we apply high input at the gate, drain, and source are shorted. Whenever we apply low input at the gate, drain, and source are disconnected.
