What is a Reed and Prince screwdriver

The Frearson screw drive, also known as the Reed and Prince screw drive, and specified as ANSI Type II Cross Recess, is similar to a Phillips but the Frearson has a sharp tip and larger angle in the V shape. One advantage over the Phillips drive is that one driver or bit fits all screw sizes.

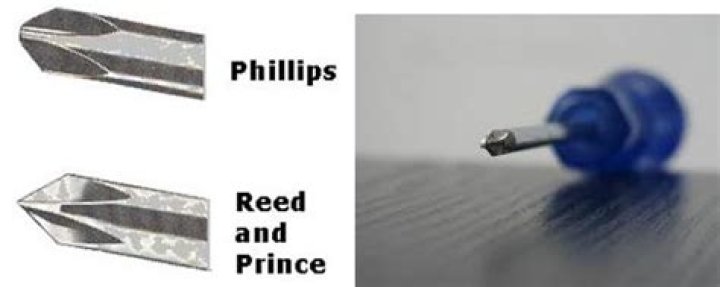

What is a Reed and Prince screwdriver look like?

The Frearson screw drive, also known as a Reed & Prince (R&P) may look similar to a Phillips, but the shape is different in a beneficial way to the wood boat builder. The Frearson has a sharper tip and large V-shaped angle.

What is the difference between POZI and Phillips?

Phillips screw heads are designed so that the Phillips screwdriver will cam-out (slip) if too much torque (power) is applied. … Pozidriv screws, on the other hand, are designed specifically so that the screwdriver head does not cam-out. Phillips screwdrivers fit in Pozidriv screws, and can turn them.

What is a Phillip screwdriver?

Definition of Phillips screwdriver : a screwdriver that is designed to be used with a type of screw (called a Phillips-head screw) that has a slot in its top that looks like a cross.

What are the 4 types of screw heads?

Step 1: Slotted. Slotted screws are the simplest type of screw, consisting of a single slot at the head of the screw. …
Step 2: Phillips. The Phillips screw, named after Henry F. …
Step 3: Square Aka “Robertson” …
Step 4: Torx Aka “Star” …
19 Comments.

What is a Robertson head screw?

A Robertson screw, also known as a square screw or Scrulox, is a type of screw which has a square-shaped socket in the screw head and a square protrusion on the tool. Both the tool and the socket have a slight taper.

What are Torx screws?

A Torx screw is a type of screw characterized by a six-lobed, star-patterned screw drive. … Torx is available as an internal and external drive although it is most commonly used as a socket within the head (internal). Torx screws were invented in 1967, by Camcar Textron, as an improvement on contemporary drive types.

What are the 3 types of screwdriver?

Power Screwdriver. The power screwdriver is the most heavy-duty of tools available. …
Interchangeable Head. …
Flat-head Screwdriver. …
Phillips Screwdriver. …
Allen Key Screwdriver. …
Sources:

What is a flathead screwdriver used for?

It has a flat-bladed tip used to turn, fasten or loosen screws and bolts. The flat blade screwdriver is an extremely versatile tool and is used for fasteners of all sizes, providing significant leverage.

What happened to screw if you over-tighten them with a screwdriver?

Screws can become stripped if you over-tighten them with a screwdriver. A stripped screw, as shown in Figure 2, may get stuck in the screw hole, or it may not tighten firmly.

Article first time published on

What is PZ2?

PZ2 Screwdriver bits have a cross shaped centre and then a second set of indentations set at 45 degrees and can be used to drive pozidriv screws into wood, metal, plastic and drywall materials. It’s important to select the correct shaped bit for the screw head to ensure maximum torque is applied.

What size is PZ2?

Item IDSizeOverall LengthMD961NPZ1183mm / 7.2 inchesMD961N1PZ1358mm / 14.1 inchesMD961N2PZ196mm / 3.8 inchesMD962NPZ2216mm / 8.5 inches

What type of screws does IKEA use?

IKEA’s most commonly used screw is a 4-mm hex, but some of its furniture requires hex screws of other sizes (as well as Phillips and Flathead screws). While IKEA provides required hex keys, assembly will go much faster if you arm yourself with a power tool. (Save the hex key to hand-tighten everything at the end.)

What is the most popular screw?

#1) Phillips-Head Arguably, the most common type of screw drive is Phillips head. Developed by American engineer John P. Thompson, it offers a high level of torque to achieve quick and easy installation. Phillips-head screws feature a cross-shaped pattern on the head in which the screwdriver is inserted.

Why are there Phillips and flat head screws?

The reason for the different styles is cost and torque. Phillips screws are self-centering, making powered screwdrivers possible. They’re somewhat more expensive to produce than slotted-head. They tend to ‘cam-out’ easily under torque, making it hard to apply much torque.

What are Phillips screws?

: a type of screw that has a slot in its top that looks like a cross.

What does a Torx screwdriver look like?

Torx (pronounced /tɔːrks/) is a trademark for a type of screw drive characterized by a 6-point star-shaped pattern, developed in 1967 by Camcar Textron. A popular generic name for the drive is star, as in star screwdriver or star bits. … Torx screws are also becoming increasingly popular in construction industries.

What does the head of a Torx screwdriver look like?

A Torx head screw is a specialty screw with a six-pointed star design in the screw head. The trademarked Torx shape is sometimes referred to as six-point, six-lobe or star drive. Tightening or loosening Torx screws also requires Torx bits or drivers.

What are star head screws called?

Called Torx, 6 point, and star, Torx are a 6 pointed star shaped screwdriver. Originally designed in the 60’s to outperform hex screws, Torx is a trademarked name for a screwdriver that fits Torx screws, commonly seen in sizes Torx 6 to Torx 40 (or T6 to T40).

Why are Torx screws better?

First, by design, Torx are less likely to strip out when compared to a hex because of the way the load is distributed and applied between the tool and the hardware. Second, due to the this improved load handling, the height of the screw head can be reduced.

Why are there no Robertson screws in America?

Most historians attribute its lack of popularity in the United States to Henry Ford. Having been nearly bankrupted by shady European licensees, Robertson refused to license his invention to Ford. Without a guaranteed supply, Ford turned to the Phillips-head screw, cementing its reign in American industry.

Which is better Torx or square drive?

The square drive provides a more positive bit engagement making it harder for the heads to strip out. Most other types of deck screws use a Philips head or a variation of a Philips type drive and some use a Torx style bit drive. … Using an impact driver also helps to drive screws without stripping the heads.

Why is it called Phillips screwdriver?

Henry Frank Phillips (June 4, 1889 – April 13, 1958) was an American businessman from Portland, Oregon. The Phillips-head (“crosshead”) screw and screwdriver are named after him. … Thompson who, in 1932, patented (#1,908,080) a recessed cruciform screw and in 1933, a screwdriver for it.

Can I use a flathead screwdriver as a chisel?

Turn any flathead screwdriver into a chisel with a bench grinder. Screwdrivers make great chisels. They are tough and can take the abuse of being used as a pry bar, a knife or getting beat on by a hammer. … You can easily turn your screwdriver into a full-fledged chisel with a bench grinder.

What screwdriver is also known as snake eyes?

This spanner head screwdriver features a point that can be used for securing or removing screws. Also called a snake-eyes screwdriver.

What are 5 different types of screwdrivers?

Screwdriver Operation.
SCREWDRIVER TYPE: Flat/Slotted.
SCREWDRIVER TYPE: Phillips.
SCREWDRIVER TYPE: Hex Key.
Screwdriver Type: Robertson.
Screwdriver Type: Torx.

What are the five most common screwdriver types?

The five most common drive profiles are slotted, Phillips, Pozidriv, TORX® and hexagon. Slotted drives feature a simple slot as a host for the blade, however, they have a disadvantage of a lack of centring – making it easy for the tool to slip out of the screw.

What type of screwdriver is used by electrician?

The two most common electrician’s screwdriver models used are the Phillips head driver and the flat head, or blade-style, driver.

What is the caution of Phillips screwdriver?

The tip should fit snugly into the screw head. If it’s too small, it could mangle the head and make the screw impossible to drive. Never use slotted-head drivers for Phillips-head screws. You’ll damage the screw and the driver.

What happened to screw if you over tighten them?

Everyone who has ever worked with fasteners has accidentally messed one up at some point. One of the most damaging ways to do that is by over-tightening, or over torquing the fastener. This can result in stripping screws, snapping screw heads and damaging pre-tapped threading.

When compressed air is used to clean the inside of the computer the air should be blown the components with a minimum distance of four inches from the nozzle?

NOTE: When using compressed air to clean inside the computer, blow the air around the components with a minimum distance of 4 inches (10 cm) from the nozzle.
