A pier foundation is a collection of large diameter cylindrical columns to support the superstructure and transfer large super-imposed loads to the firm strata below. It stood several feet above the ground. It is also known as “post foundation”.

What is a pier foundation?

Basically, it is a series of vertical pillars or piles that transfer the building load to the soil. Beams are then built on top of these columns. Pier foundations work really well in sites where it might be difficult to dig a traditional foundation, such as around trees or complex root systems.

What is the difference between footings and piers?

A pier is a concrete columns that’s cast atop of a footing and is connected to the footing by steel rebar. … When pouring a footing that will support a pier, rebar is placed into the footing, which extends vertically out of the surface of the footing, according to the BestDeckSite website.

Are pier foundations good?

Advantages and Disadvantages of Pier & Beam Foundations While pier & beam systems do create very stable foundations, and are preferable in some situations, they can deteriorate over time. However, they are usually easier and less expensive to repair than a slab foundation.

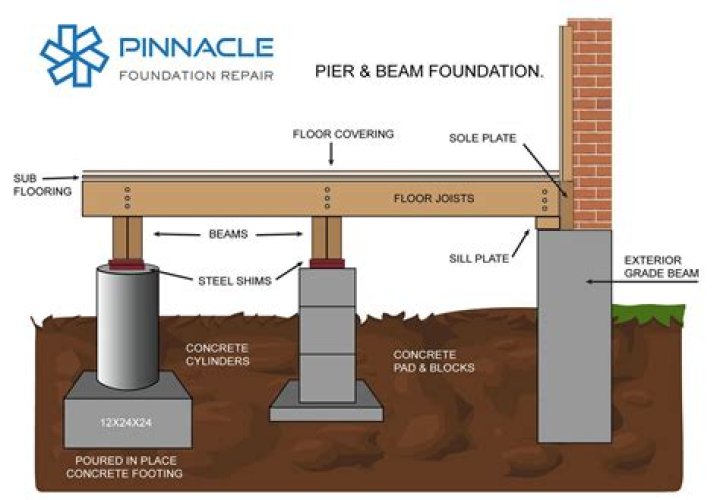

What is a pier and beam foundation design?

What is a pier and beam framing concept? Pier and beam design features deep concrete footings to which piers are attached or, in some cases, piles drilled deep into the ground. Beams are connected to the top of the piers so they are above the ground. The floor joists then sit directly on the beams.

Is pier foundation a deep foundation?

Pier foundation is a type of deep foundation that basically consists of a cylindrical column of large diameter.

What are piers used for?

A pier is a raised structure that rises above a body of water and usually juts out from its shore, typically supported by piles or pillars, and provides above-water access to offshore areas. Frequent pier uses include fishing, boat docking and access for both passengers and cargo, and oceanside recreation.

Where is pier foundation used?

As stiff clays offer a lot of resistance when driving a bearing pile, pier foundations can be conveniently used in such situation. It is used if the house is built from log, timber, frame as the pillars are small relative to other foundations. If structure needed to be built on a slope, pier foundation is used.

Is a house on piers safe?

Because a post-and-pier house has no continuous concrete-perimeter foundation, it is particularly vulnerable to shifting, and potentially collapsing, in an earthquake. … If your house has cripple walls taller than four feet, or if it’s on a steep slope and has a stepped cripple wall, you will need an engineered design.

How deep should a pier footing be?

Thickness. The minimum thickness for a pier is 8 inches. The minimum thickness for pier footings is 8 inches or 1-1/2 times the length of the footing projection from the pier, whichever is greater.

Article first time published on

Is it a pile or a pier?

Piers are similar in size and shape. Piles are often used when the soil lacks firm strata, such as bedrock. Piles are usually meant for supporting greater loads, such as highway bridges. Piers are meant for smaller applications, such as sheds and small living units.

Are Piers the same as piles?

A pier is basically an uplifted/raised structure that is supported by some foundation system whereas a pile is a perpendicular mechanical instrument of a deep foundation, drilled deep into the surface at the building location.

How deep are pier and beam foundations?

These foundations sit 20-30 inches above ground level, making the homes they support look bigger. Homes with pier and beam foundations don’t have basements and typically have crawlspaces that can be accessed from the home’s exterior.

Can you put a pier and beam house on a slab?

A pier and beam foundation is installed in a concrete slab — it needs the concrete bed for support. This slab does not come in contact with the actual house, but it can certainly be repaired if cracks or flaws occur.

How much does it cost to pier A foundation?

Piers are used to fix sinking foundations. Placed underneath the foundation, they are lifted into place with hydraulics. Piers are roughly $300 a pier, and the total cost of the foundation repair is based on how many piers are needed to best repair the foundation correctly. On average, piers alone can cost about $2500.

What are pier supports called?

Description. The simplest cross section of the pier is square, or rectangular, but other shapes are also common. In medieval architecture, massive circular supports called drum piers, cruciform (cross-shaped) piers, and compound piers are common architectural elements.

How long does it take to build a pier?

Once construction begins, a 100-foot pier takes about three to four days to complete. It’s the research, planning and permitting that takes time.

Is a pier foundation considered permanent?

Post and pier homes, manufactured homes, modular homes, and mobile homes are just a few homes supported by piers. Furthermore, piers can be made from stacking concrete blocks. So, often you will find piers considered a permanent foundation.

What is the difference between caissons and piles?

Caissons are watertight structures made up of wood, steel or reinforced concrete built above the ground level and then sunken into the ground. Pile foundation is a type of deep foundation, in which the loads are taken to a low level by means of vertical timber, concrete or steel. … Pile doesn’t have a footing.

What is the difference between pier and column?

A column is a cylindrical vertical support that usually tapers towards the top in the manner of a tree trunk. … E.”) A pier is generally much larger than a column and is usually made of stone, brick, or concrete. Piers act as vertical supports for masonry constructions such as arcades.

How much does concrete piling cost?

Pile MaterialCost per linear footConcrete$30 – $60

Can you build a house on concrete piers?

Many old houses and small buildings use pier foundations. … If you don’t require the basement or crawlspace provided by a continuous foundation, a pier foundation can solidly support your house while drastically reducing your materials cost.

How many piers does a house have?

Piling or Pier supports should be installed at each corner when an exterior wall changes direction. There should be a minimum of one piling support on every side of the corner piling. A masonry fireplace measuring two by five foot should be supported by 4 piers for a two story and 3 piers for a one story structure.

Is pier and beam the same as crawl space?

Pier and beam foundations are one of the oldest types of foundations, typically built prior to the 1960s. With this type of foundation, the floor of the home is elevated around 18 inches off the ground, supported by concrete piers or blocks. This space creates what is typically called a crawl space.

What is the difference between crawl space and pier and beam?

A crawl space is an elevated foundation with footings for support typically raised 18 inches to 4 feet above the ground. … Pier and beam foundations: contain concrete or wooden piers that support homes built 12 inches above the ground. These crawl space styles work well in areas prone to floods and earthquakes.

What are the types of pier?

• Solid Piers. Solid piers possess solid and impermeable structure, and usually constructed from bricks, stone Masonry, mass concrete or reinforced concrete. …
• Open Piers. …
• Masonry Piers. …
• Mass Concrete Piers. …
• Reinforced and Prestressed Concrete Piers. …
• Fixed Piers. …
• Free Piers. …
• Hammerhead or Cantilevered Piers.

How far apart are foundation piers?

While 8 to 10 feet apart is a sufficient distance for foundation piers to support most structures that would sit atop a post and pier foundation, if the building is particularly tall or made of heavier materials such as brick or metal, it’s not uncommon to place the foundation piers even closer together.

Can I place a pier footing in a hole that keeps getting ground water?

The water in the hole under the pipe can be sucked out with a wet-dry vacuum before and during the repair job. (Paul F.)

How do you level a pier foundation?

A Pier & Beam Foundation can be repaired and leveled by installing steel pilings or concrete pilings under key locations under the concrete perimeter beam. The interior is adjusted by adding or removing shims placed on top of the interior pads or columns.

What size piers do I need?

For sizing pier diameters for small foundations, the rule of thumb is “1 inch per foot of span.” Thus, a deck that spans 8 ft. will stand comfortably on 8-in. -diameter piers, while a deck that spans 10 ft. requires 10-in. -diameter piers.

What is pier cap?

The upper or bearing part of a bridge pier; usually made of concrete or hard stone; designed to distribute concentrated loads evenly over the area of the pier.
