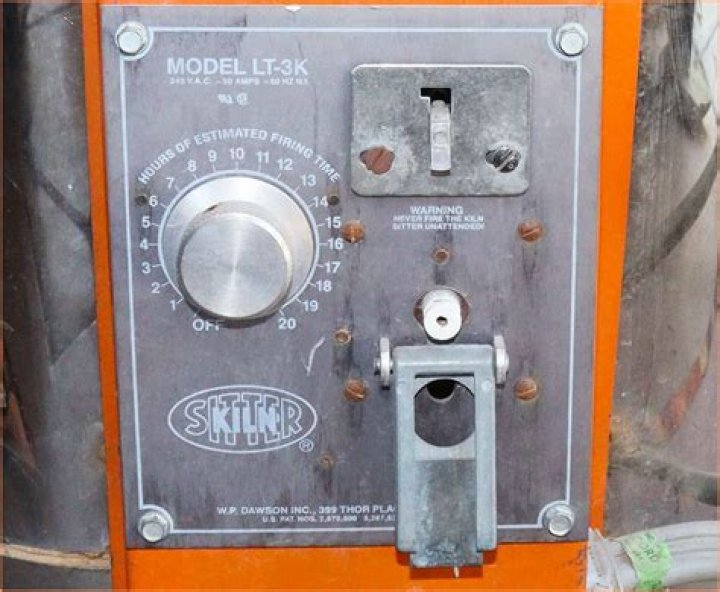

Kiln Sitters are the control boxes on electric (or manual) pottery kilns that utilize pyrometric cones to dictate a kiln’s firing. … Once the kiln reaches a specific temperature, the cone will start to bend, causing a lever to drop, switching the kiln off.

How do you fire a kiln sitter?

1. Place a junior cone 03 (“sitter” or “small” cone) in the sitter as you load your kiln. …
2. In the evening, set timer to maximum time, then turn on bottom switch ONLY to low. …
3. The next morning, reset timer for 30 minutes – 1 hour longer than firing time and turn all switches to low for 3 to 4 hours.

What is placed inside the kiln sitter?

You have to place a pyrometric cone inside the kiln sitter, where the cone is propped onto two metal prongs extending inside the kiln sitter. What is this? A sensing rod rests on the Small Pyrometric Cone and extends to the outside of the kiln, where a weighted latching mechanism is in place.

What is a cone sitter kiln?

The KILN-SITTER is a mechanical control that fires your kiln by the TIME and TEMPERATURE method of heat treatment using a small cone or bar. The cone or bar, after being exposed to the proper time and temperature, softens and bends to a predetermined angle, shutting off the kiln.

What is ceramics kiln sitter?

Kiln Sitters are the control boxes on electric (or manual) pottery kilns that utilize pyrometric cones to dictate a kiln’s firing. Prongs within the kiln sitter extend to support a pyrometric cone or rod. … Kiln sitters are also available either with or without a timer.

How long does it take to fire a kiln to Cone 6?

Program the kiln to run a Cone 06, Medium Speed, ConeFire Program. This will take about 8 Hours to fire to temperature and another 12 hours to cool (depends on size of kiln).

How do you soak with a kiln sitter?

1. You have to be there when the kiln sitter drops. Klonk.
2. you flip the lever back up and press the silver button in the middle of the lever back in. The lever will not catch, so you gently let it drop back down.
3. Then you have to time your soak for 15 minutes, or you can over fire your glazes.

What is a cone in ceramics?

Cones are pieces of ceramic that help you gauge whether a kiln has reached sufficient temperature and whether the pottery will have been fired the correct amount. Cones measure ‘heat-work’, which is a combination of the temperature reached, and the time it took to become that hot.

At what temp can you open a kiln?

A Pottery Kiln can be opened once it has cooled to around 125° F (51° C). Experts recommend keeping it closed until then to avoid injury and ensure the piece doesn’t crack from thermal shock. You can open all the peepholes to let the heat out, but only the top one is typically recommended.

How does a kiln work?

Fuel-burning kilns like gas, wood, and oil burn combustible material to heat the inner chamber. Electric kilns are lined with coiled metal elements, through which a current flows. The resistance in the coil creates heat. This heats the chamber using conduction, convection, and radiation.

Article first time published on

Why is my kiln Underfiring?

Small or wrong cones used. Fired to the wrong cone. Firing a Vary Fire program to too low a temp for the rate of climb. TC offset adjustment needs to be set lower.

Do kiln cones go bad?

Cones set within the kiln can be used to determine if the pyrometer is giving an accurate reading. Cones do not go “bad” or age.

Why is my kiln Overfiring?

Small or wrong cones used. Fired to the wrong cone. Firing with a hold time at the end. … Old elements have more and more trouble responding to uneven temps- (from TC age or from uneven loading or loading too close to the TC) this makes the kiln take longer and can make cones look like an overfire.

What does cone 6 mean in pottery?

This refers to the medium temperature range (or middle fire) that most potter’s work in. Orton cone 6, about 2200F or 1200C. The term “cone 6” normally implies oxidation firing in a hobby kiln (most fire to this range). Potters who fire ware to cone 5 or 7 would also consider themselves to be working at cone 6.

Can you use small cones as witness cones?

Small Cones are commonly used in the Kiln-Sitter®. … Small Cones can also be used on the kiln shelf as miniature witness cones when space is limited. They require mounting in cone holders or plaques at an 8° angle and a width of 15/16 of the cone exposed above the cone holder.

How hot is a kiln?

In modern societies pottery and brick is fired in kilns to temperatures ranging from 1,800 F to 2,400 F. Most of the common clays like clay shown here on the left found in our back yards start to deform and melt if they are fired higher than about 1,900 F. Modern toilets are fired from clay that has fewer contaminants.

Can you convert a manual kiln to digital?

The answer is ,”Yes, you can” and it’s easy to do too. Orton Ceramics makes electronic kiln controllers (used on Paragon kilns), and they also make controller kits to upgrade existing kilns.

How does a kiln controller work?

The thermocouple senses the temperature in the kiln chamber and sends that information to the controller. The controller takes the information and compares it to the firing program input by the operator and makes a decision to act or not to act.

What does soaking a kiln mean?

The process of holding a kiln at the final temperature (or at other temperatures) to enable the heat to penetrate the ware or to effect or complete a glaze or body reaction.

What Cone is 2300 degrees?

Cone Temperature Conversion ChartConeTemp at 108F/hrWare and Glaze Types10*2345Stoneware Glaze, *Some Decals fire to Cone 109230082280

Do you need kiln wash for bisque firing?

During a bisque firing While kiln wash is not necessary for this stage, it is still recommended due to the fact that expansion and contraction can cause pot “feet” to get stuck, some porcelain clays have a habit of sticking, and the risk of clay meltdown is always a possibility.

Which is hotter cone 05 or 06?

Cone 6 is about 400 degrees hotter than cone 06! … Therefore cone 05 is cooler than cone 04 whereas cone 5 is hotter than cone 4. For the most reliable results, it is best to match your clay with your glazes. If your clay’s recommended firing temperature is cone 06-04, then you should use low-fire glazes.

How hot do kilns get Celsius?

Retort kiln: a type of kiln which can reach temperatures around 1,500 °C (2,732 °F) for extended periods of time.

How many times does pottery go through the kiln?

Clay is normally fired twice. The first firing, or bisque fire, takes around 8-10 hours. And the second, or glaze firing takes around 12 hours.

Why do we fire clay?

Firing converts ceramic work from weak clay into a strong, durable, crystalline glasslike form. … It also burns out carbonaceous materials (organic materials in the clay, paper, etc.). As the temperature in a kiln rises, many changes take place in the clay.

How hot is cone 06 firing?

Cone numberOrton Cones Final temp in degrees F at ramp rate of 27 degrees F/hrOrton Cones Final temp in degrees F at ramp rate of 108 degrees F/hr0518701888061798182807176417890816921728

How fast can you glaze fire?

Fast fire glazes are used in most industries now and many can fire up and down in less than two hours. The process produces more consistent results and obvious reductions in production costs. This contrasts with firings of 24 hours cold-to-cold that most potters would do.

What Cone is 1280 degrees?

Cone No.FahrenheitCentigrade622321222722641240823051263923361280

What does cone 10 mean in ceramics?

As you know, kilns are not fired just to a temperature. … Cones come in different numbers, each of which corresponds to a heating rate / temperature combination which will make that cone deform. The hottest is cone 10 that can go as high as 2381F (read more about firing to a cone and see a cone chart with temperatures).

How long does a kiln thermocouple last?

The temperature range in which it is used can have a huge impact on the life of the thermocouple. For example, a thermocouple used at glass temperatures may last for over 1000 firings where the same thermocouple used at cone 10 may only last for 20 firings.

Where does the thermocouple go in a kiln?

Placement ofthe thermocouple is important. When installed through the wall ofthe kiln it should extend about 2″ into the kiln from the inside wall. In large kilns 3 to 4 inches is better. On thin wall kilns it may be necessary to shorten the thermocouple so that it does not extend too far outside the kiln.
