What is a 3/4 overlay hinge

Overlay is the correlation of your cabinet doors to the cabinet face frames. The amount of overlay determines the type of hinge and door you will be using. So the overlay refers to the size or type of door, the hinge or how the cabinet is built.

What does hinge overlay mean?

What is the difference between an overlay hinge and an inset hinge?

Inset Cabinet Doors are set into the cabinet frame and fit flush with the face of the cabinet when closed. … Full Overlay Doors give a similar appearance to that of inset doors without the higher cost. They completely cover the cabinet face, providing the flat cabinet front so desired in inset cabinets.

How do you measure 3/4 overlay?

To calculate the width of each door you would take the opening width of 20” and divide by 2 (two doors). This gets us 10”. Then simply add 3/4” to the width to account for the overlay of the cabinet door which gets us 10 3/4”. The width of each cabinet door you need to order will be 10 3/4” wide.

How much overhang should a face frame have?

Face frames on sides of kitchen cabinets should overlap 1/4 in. on the outside edge. This makes room for adjustments when installing them next to one another.

What is overlay depth hinge?

The overlay is the amount or distance that the cabinet door overlaps the cabinet opening on the hinge side of the door. Normally, this distance is the same on both sides of the cabinet opening and will range from 3/8″ to 1-9/16″.

What is a semi concealed hinge?

The term “semi-concealed” is applied when some of the hinge shows on the outside of the cabinet, but a portion of it is hidden behind the door.

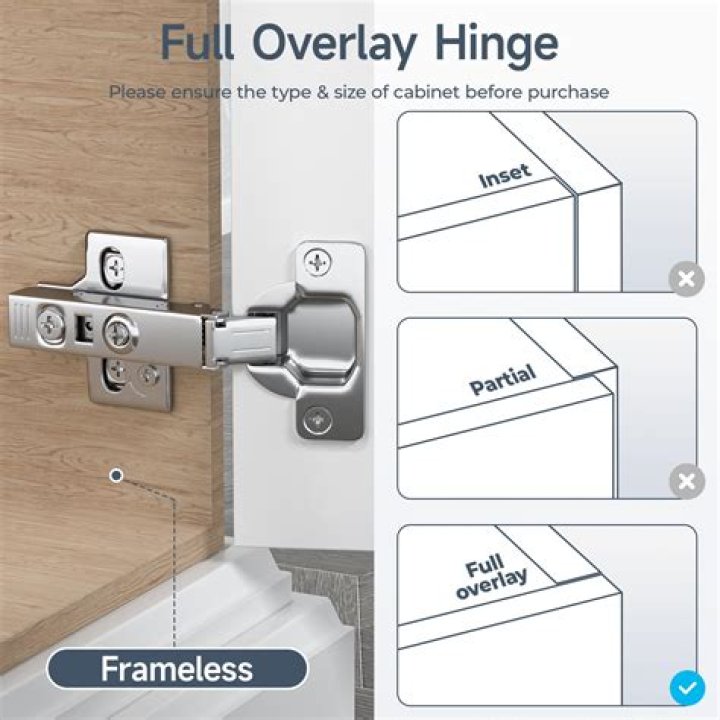

What is a full overlay?

A full overlay is a cabinet door that covers the cabinet’s entire face frame. … Full overlays can be used on both frameless cabinets and cabinets that have a face frame.

How do I know what size cabinet hinges I need?

You should check the diameter of the hole in the door that your current hinge sits in – these are usually 26mm, 35mm or 40mm for larger hinges. It’s important to measure the hole in the door and not the hinge itself as the hinge may be slightly smaller.

What is a wrap around hinge?

Partial wrap hinges have an extra-long leaf that wraps around the edge of the cabinet face frame of side panel. … These specialty hinges can be surface-mounted on the door and the side panel of the cabinet or mortised into the door and the side panel.

Article first time published on

What is an offset hinge?

The offset hinge is designed to move the pivot point of the door further away from the hinge, allowing more open access to the opening. … An offset hinge is specifically designed to add extra clearance. Standard bedroom door sizes are traditionally 30” or 32” in width.

What is a flush mount hinge?

A flush hinge is a type of specialty hardware used to hang a door. Unlike standard butt hinges, flush hinges are designed to fit within a pocket cut into the door and frame, which allows the surface of the hinge plates to sit flush with the surface of the door or frame.

How do I know what kind of hinge I need?

The construction of your cabinet – most notably, the overlay of the face frame and the cabinet door – determines which cabinet hinge you need. Similarly, where your drawer slides need to be mounted dictates what type of drawer slide you need.

Can I use concealed hinges on partial inset doors?

Concealed hinges can go in face-frame or frameless cabinets and on any door type—including full overlay, partial overlay, or inset—as long as the doors are at least ½ inch thick.

What are overlay cabinet hinges?

Overlay cabinet hinges mean that they allow the cabinet door to “lay over” the frame of the cabinet. If your current doors are larger than the frames — eg. they don’t settle into the frame when closed — then you likely have overlay hinges already (hidden or semi concealed).

How do you install semi concealed hinges?

Step 1 – Mark the Placement Lines. Before placing a semi-concealed hinge onto a cabinet door, you have to first measure and mark the place where it will go. …
Step 2 – Attach the Hinges to the Door. …
Step 3 – Hang the Cabinet Door. …
Step 4 – Hang the Cabinet Door.

What is a partial overlay hinge?

The partial overlay hinge is very similar to the inset hinge but is set back from the edge a little further than inset allowing the edge of the door to overlay the case partially. Use these for partial overlay doors.

How much overlay is full overlay?

A Full Overlay door will overlay that same 1.5” face frame 1.25”, leaving a ¼” reveal on the sides (stiles) and bottom (rail).

What size is full overlay hinge?

Full Overlay Most cabinets feature a 1 1/2″ face frame. In this case, you would use a 1 1/4″ overlay hinge (adding 2 1/2″ to the width of your opening). This provides a nice full overlay effect without risk of interference from adjacent doors.

How much does a full overlay hinge cover?

Full overlay doors cover all or nearly all the front edge of the cabinet side on a frameless cabinet. Half overlay doors cover a little less than half (typically 5/16″) of the cabinet side, so that two doors hinging on opposite sides of a 3/4” partition will have 1/8” of space between them.

What is the difference between partial and full overlay?

Overlay cabinets can have a full or partial overlay. Full overlay doors and drawers cover the face frame of the cabinet completely. Partial overlay cabinets cover most of the cabinet frame but leave space between the drawers and doors. …

What is standard overlay?

Standard overlay cabinets (also called traditional overlay) tend to be less expensive and do not require hardware because there is enough finger space on the side of the cabinet door or drawer face. They also have more exposed face frame, with at least 1 ¼ inches on all sides of the doors and drawers.

What are the different types of hinges?

Ball Bearing Hinge. The ball bearing hinge has lubricated bearings between the hinge’s knuckles to reduce friction caused by heavy doors. …
Spring-Loaded Butt Hinge. …
Barrel Hinge. …
Concealed Hinge. …
Overlay Hinge. …
Offset Hinge. …
Piano Hinge. …
Strap Hinge.

What are the 4 styles of hinge called?

Corner hinges. These are typically used on metal cabinets and machine covers and sit flush to the surface. …
Lift-off hinges. …
Offset hinges. …
Piano hinges. …
Leaf hinges. …
Concealed hinges. …
Side hinges. …
Weld-on hinges.

What are butterfly hinges?

A butterfly hinge is a variation of the strap hinge, featuring leaf plates that are decoratively shaped in a manner that resembles the wings of a butterfly. They are always surface-mounted. Often, they are made of brass or another decorative metal and are most often used on ornamental boxes or cabinets.

What is a full mortise hinge?

A full mortise hinge is a plate hinge designed to have one or both leaves mortised into the door and the cabinet face or door jamb. The hinge sits flush with the surface of the door and frame when installed, leaving a smooth finished appearance.

Whats the difference between a flush hinge and a butt hinge?

Flush Hinge The main advantage of flush hinges is that they do not need to be sunk into the door or door frame unlike a butt hinge. They are screwed to the surfaces of the connected parts and when closed the inner leaf fits snugly into the outer leaf.

What is a barrel hinge?

What Are Barrel Hinges? They’re small barrel-shaped hinges typically made of solid brass, including brass links. … They’re a great choice when you don’t want to see a hinge; barrel hinges are totally invisible from either side when looking at a wood box or cabinet. They open fully, to 180 degrees.

What is the difference between a butt hinge and a ball bearing hinge?

Ball bearing hinges look very similar to standard butt hinges. The difference lies at the pivot point, where there are hidden bearings placed between the knuckles of the hinge, either between each knuckle (for heaviest applications) or just a couple of the knuckles. Ball bearing hinges are considered heavy-duty hinges.
