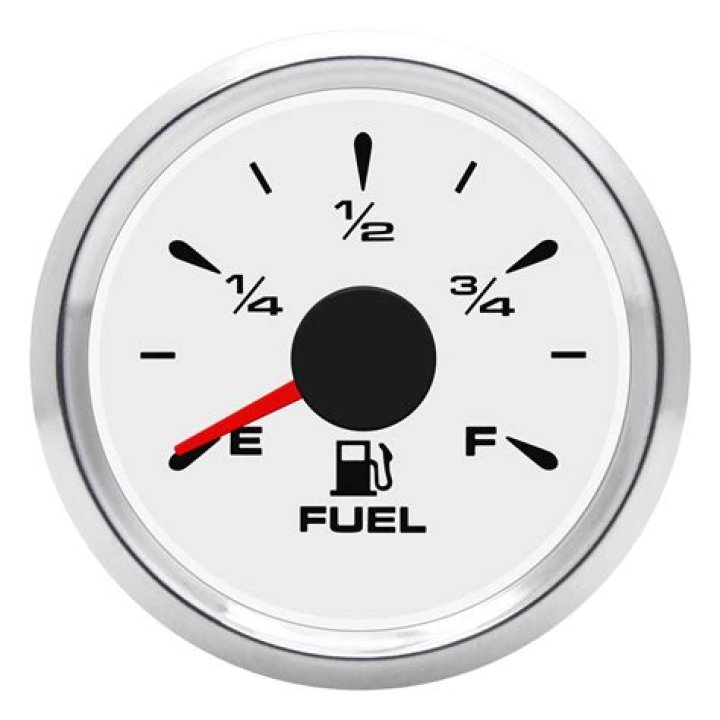

What is 3/4 on a fuel gauge?

The lines indicate how much fuel is in the tank. Usually shown as E (empty) 1/4, 1/2, 3/4 and F (full) If the gas tank holds 20 gallons of gas then F=20gallons, 3/4=15 gallons, 1/2=10 gallons, 1/4=5 gallons and if you reach E you may be walking.

What does 5/8 look like on a gas gauge?

Anything between 2 lines would be an eight. If the needle were between 1/2 and 3/4, this would mean you have 5/8 of gasoline in your tank. The line lowest to the bottom would mean you have 1/4 of a tank of gas and you should probably fill up soon, below 1/4 would be close to 1/8 of a tank which means get gas now.

What does 3/8 look like on a gas gauge?

It means the tank is 37.5% full. 3/8 is just being used to express how full the tank is in fraction of totally full. You could also say that it is 5/8 empty.

What happens when your fuel gauge is stuck on empty?

When the fuel gauge is stuck on empty, you do not get an idea of how much fuel is there in the fuel tank, and you may run out of fuel anytime. The most obvious symptom of a stuck fuel gauge is that the fuel indicator does not move, even if you fill several liters of fuel in the fuel tank.

When do you need to replace the fuel gauge sender?

If your fuel gauge behaves erratically or is stuck on full or empty, you may need to replace the fuel gauge sender. 1. Fuel gauge behaves erratically 2. Fuel gauge stuck on empty 3. Fuel gauge stuck on full The fuel gauge sender is a component that is found in the gas tank of most road going vehicles.

Where is the fuel gauge in a car?

A fuel gauge is a component found in the fuel tank of almost every vehicle on the road. It is the component responsible to send signals that operates fuel level gauge of the instrument cluster. It is made up of a float, an arm and a resistor that is designed to change as per the position of the fuel float.

How do you test the fuel sending unit?

To test the fuel sending unit, you will need to fill the tank with gas. Use a multimeter to test resistance. In an old-school classic with analog gauges, you’ll need to know how the gauge works, as manufacturers used different electrical conductance to operate the gauge.

How is the fuel gauge connected to the tank?

There is also a float-like instrument inside your gas tank that is connected to a rheostat (or resistance-sweep…think of a volume knob on a stereo) which communicates directly to the fuel gauge.
