What happens when you connect two 12 volt batteries in parallel?

Parallel Connection Wiring batteries together in parallel has the effect of doubling capacity while keeping the voltage the same. For example; 2 x 12V 120Ah batteries wired in parallel will give you only 12V, but increases capacity to 240Ah.

Can You charge two 12V batteries in parallel?

, B.Tech. Yes. When you add two 12V batteries in parallel, then the two batteries will work as a single battery or simply ‘battery bank’. Not only that, if those two batteries have different charging level, then the high charged battery will charge the low charged battery and this will stop when both the batteries get equal charging level.

How many amps does a 12 volt battery have?

Two 110 amp-hour 12 volt batteries wired in parallel will give you 220 amp hours at 12 volts. Note that the end result is the same, assuming that the amp-hour rating of the 6 volt batteries and 12 volt batteries is the same.

How are the voltages of two batteries the same?

One way doubles the volts of the two batteries and the other keeps the same amount of volts. In parallel the voltage stays the same and in series it is doubled. Check out the diagram for more info.

Can a 4.5 Ah battery be wired in parallel?

two 6 volt 4.5 Ah batteries wired in parallel are capable of providing 6 volt 9 amp hours (4.5 Ah + 4.5 Ah). four 1.2 volt 2,000 mAh wired in parallel can provide 1.2 volt 8,000 mAh (2,000 mAh x 4). But what happens if you wire batteries of different voltages and amp hour capacities together in parallel? This is the big “no go area”.

How do you hook up two batteries in parallel?

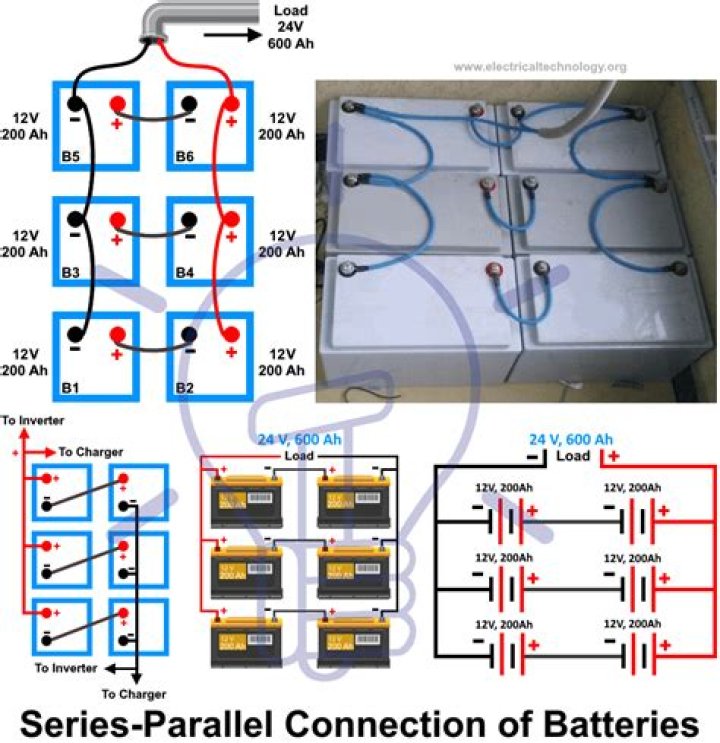

Take two batteries and connect them in parallel. Take another set of batteries and wire them together in parallel as well. Finally, take a jumper wire and bridge the positive terminal of one parallel connection to the negative terminal of the second parallel battery pair.

What is the difference between series and parallel batteries?

The critical difference is that series batteries add voltages together at a common current while parallel batteries add currents together at a common voltage. This is important because lead acid battery energy capacity is significantly influenced by the current drawn from them and not by their voltage.

How many volts are there in a 12 volt battery?

The actual resting voltage, or the voltage a battery will settle at 12-24 hours after being removed from the charger, is closer to 2.1 volts per cell, or about 6.4 volts for a 6v battery, and 12.7 volts for a 12v battery.

How are batteries connected in parallel?

Batteries in Parallel Connection (Parallel Battery Pack) In this type of battery bank, batteries are connected from terminals to same terminals of other batteries that is positive terminal (+) of one battery is connected with positive (+) terminal of other battery and negative terminal (-) of one battery with negative terminal (-) of other battery.
