What does a red light indicate for the landing gear?

– 1 red warning light indicates that landing gears are operating, or not locked down or up. NOTE: The red warning light flashes as soon as landing gears are operating and remains continuously on in case of locking problem. When landing gear is correctly retracted, all warning lights are OFF.

Why do aircraft have red and green lights?

The red and green lights found on the wingtips of airplanes are known as navigation lights. They are designed to increase the airplane’s visibility to other pilots, as well as air traffic controllers on the ground, to minimize the risk of collision.

Do planes always have flashing lights?

Is it true that all aircraft are required to have blinking lights, and if the light doesn’t blink, it’s a satellite? Yes that is true. All aircraft are required to have operational anti-collision lights when flying at night. However, they don’t have to be white strobes.

Where are the landing gear safety switches usually mounted?

Where is the landing gear safety switch normally located? On one of the landing gear shock struts so the switch is actuated when the weight of the aircraft is on the landing gear.

What side of the airplane is the red light on?

Colorful Position Lights AeroSavvy On each wingtip you’ll see a red or green light. Red is always on the left wing tip, green on the right.

What do the lights on the landing gear mean?

The Green lights tell you that the gear is down and locked and the red lights warn you if the landing gear is in disagreement with the gear lever position. With the gear UP and locked and the lever UP or OFF, all lights should be extinguished. On a couple of occasions I have seen 3 reds and 3 greens after the gear has been selected down.

What to do if landing gear does not retract?

(With SYS A) • RETRACTION IS NOT POSSIBLE • Door position switch sets selector valve to bypass. Up lines are open to return system only. This ensures no hydraulic lock during manual extension. • If the gear will not retract check that the access door is properly closed.

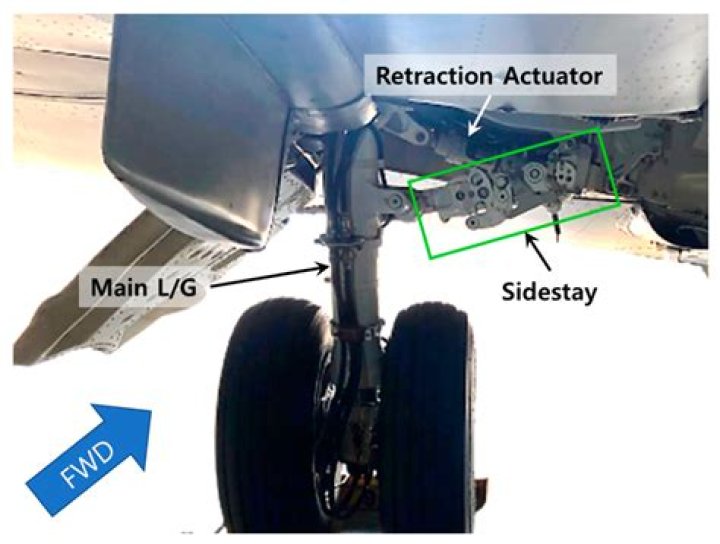

How is the landing gear of a plane controlled?

Landing Gear Operation The landing gear are normally controlled by the LANDING GEAR lever. On the ground, a landing gear lever lock, prevents the LANDING GEAR lever from moving to the up position. An override trigger in the lever may be used to bypass the landing gear lever lock.

What kind of power do you need for landing gear?

Hydraulic power for retraction, extension, and nose wheel steering is normally supplied by hydraulic system A. A manual landing gear extension system and an alternate source of hydraulic power for nose wheel steering are also provided. The normal brake system is powered by hydraulic system B.

What to look for in a landing gear light?

An appropriate tap into those wires and fed to the red and green sides of the bi-color bulb will result in an auxiliary gear light indication in a place of your choosing. My B55 wiring diagram is shown below as an example of what to look for in YOUR SHOP MANUAL FOR YOUR SN.

What happens when you forget to lower the landing gear?

A gear-up landing, also known as a belly landing, is an accident that results from the pilot forgetting to lower the landing gear, or being unable to do so because of a malfunction. Although rarely fatal, a gear-up landing can be very expensive if it causes extensive airframe/engine damage.

What does it mean to have semi retractable landing gear?

To decrease drag in flight undercarriages retract into the wings and/or fuselage with wheels flush with the surrounding surface or concealed behind flush-mounted doors; this is called retractable gear. If the wheels don’t retract completely but protrude partially exposed to the airstream, it is called a semi-retractable gear.

Can a gear light be in your face?

If you find it difficult to see your gear lights over on the co-pilot side and have yearned for an “in your face” gear light solution, or are doing a panel makeover and would love to add an auxiliary gear light indication, this could be the ticket for your panel.
