A baseboard diffuser is found in homes that have duct openings along the bottom of walls or the edges of floors. They allow air to pass through to heat or cool a room.

What is the difference between grilles and diffusers?

A special device used in supplying and extracting air vertically without any kind of deflection is called a grille. A device used to direct the air at different angles by profiled blades when the air is leaving the unit and going into the space is known as a diffuser.

What is the difference between a floor register and a floor diffuser?

While similar to registers, a diffuser differs in terms of the airflow direction variability. A diffuser and its dampers are designed facing all-round, rather than a register’s single air direction. Many diffusers are found on ceilings, often covering an air-con or air release outlet.

What does a vent diffuser do?

Vent diffusers disperse pressurized air exiting heating ventilation and air conditioning (HVAC) ductwork and provide a decorative finish over the grill box hole holding the ductwork in place. Without an air diffuser, the air exiting the HVAC system would travel in a straight direction. … A ceiling vent diffuser.

What is Jet diffuser?

Jet Diffusers are suitable for large spaces or area with high ceilings, such as theatres, concert halls, gymnasiums, mall atriums, exhibition halls, etc. … The design of Jet Diffusers allows for a long distance throw along with trajectory control.

What is a floor diffuser?

Floor diffuser controls airflow into a room Made of high quality steel White powder coat finish Dampers control the amount and direction of airflow.

What is linear slot diffuser?

Linear slot diffusers are designed to combine a high air change rate capacity with maximum flexibility in air pattern and volume control and is suitable for either ceiling or sidewall applications. They offer an unobtrusive and attractive appearance together with functional efficiency.

Can you replace a baseboard register with a floor register?

Baseboard registers can fit over duct or flue openings on a wall or floor. When replacing a baseboard register with a flat register, the flat register must fit directly over opening. … Furthermore, baseboard registers cover openings of numerous sizes. A flat register, on the other hand, must fit exactly into the opening.

What is a furnace diffuser?

As its name implies, an HVAC diffuser works in conjunction with your HVAC system. The diffuser is filled with essential oils, which it adds to the air that runs through your system. Then, as the air flows into your home, it carries with it the added scent of essential oil, all through the house.

What is a diffuser damper?

Ruskin model ZDD25 diffuser damper is used to vary the supply air volume from a Z2000RT wall-mounted thermostat. The diffuser is designed to maintain the coanda effect of discharge air along the ceiling. This provides a sustained discharge velocity throughout the volume range.

Article first time published on

What is the difference between a register and a vent?

An air register has the capability of adjusting the air flow by opening and closing a damper or flaps, usually found at the bottom of the air register. An air vent cover, simply covers the duct without the added feature of adjusting air flow.

How many diffusers are there in HVAC?

Directional diffusers include 4-way diffusers, 3-way diffusers, 2-way diffusers and 1-way diffusers. Directional diffusers are considered standard HVAC supply air diffusers.

What is a drum louver?

HCD, AHCD, DLSS The High Capacity Drum Louvers (HCD) consist of extruded aluminum blades mounted inside a rotatable drum to produce long air throws with a high degree of directional control.

What is jet nozzle?

A jet nozzle is simply the portion of a jet engine that compresses the material going through it to increase thrust, which helps to propel the plane through the air. … Like any other nozzle, the jet nozzle works by compressing the air as it moves through the nozzle. This creates pressure, which is used in propulsion.

When would you use a slot diffuser?

Slot diffusers are typically concealed within a suspended ceiling. A slot diffuser is a building component used to deliver air to a room. These diffusers serve as a critical component in a heating, ventilation, and air conditioning (HVAC) system.

How do swirl diffusers work?

Swirl diffusers are designed to provide effective indoor air diffusion through specially designed swirl deflection blades to produce a highly turbulent radial air flow pattern that will induce better mixing of room air.

What is a linear vent?

Linear diffusers work with drop ceilings. Heating, ventilation, and air conditioning (HVAC) systems supply heated and cooled air to different areas of a home or building. … The most common linear diffuser designs include rows of diffusers along an entire wall, with vents placed either in the ceiling or window sills.

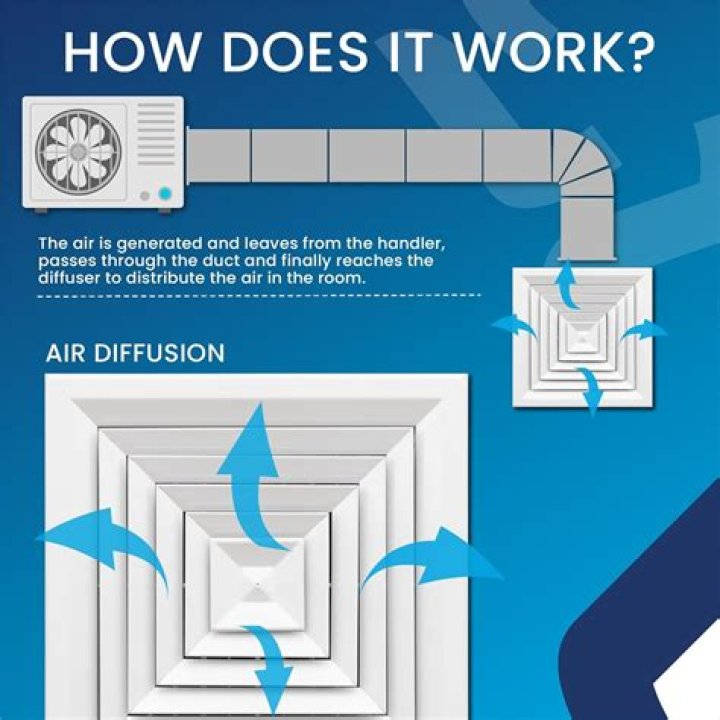

How do ceiling diffusers work?

A ceiling air diffuser is a channeled cover placed over an air conditioning distribution duct in the ceiling of a room. The channels or slots in the diffuser direct air to flow in specific directions, thereby allowing cool air to go exactly where it is needed.

What is a grille diffuser or register?

Register: A grille equipped with a damper which supplies conditioned air. Typically used for supply air applications. Diffuser: An air flow device designed to discharge conditioned air in a specific direction, path, or pattern.

What is a damper and what does it do?

Dampers are plate-shaped device which opens or close to regulate the amount of air that passes through the duct and vents. Making adjustments on the damper affects the indoor temperature by pushing cold or hot air into some areas or sections of the house.

What is a plenum box?

Plenum boxes are usually situated on either side of the fan or heat exchanger and have the important function of bringing in, distributing, and removing air. They are the air’s first stop after being heated or cooled and its last stop before going back into your AC, heat pump, or furnace.

What is supply diffuser in HVAC?

A supply air diffuser is a diffuser found in a ventilation system whose function is to allow for the flow of air from the outside into the room. This is by allowing air to flow out of the ventilation system into the room.

What is a return air diffuser?

The primary function of a return air diffuser is to extract air from a specific room and recycle it through the HVAC system. This consequently leads to enhanced conditioning of the recycled air within the system by cooling and heating hence increasing airflow efficiency within the room.

Does register size matter?

Unless you are severely undersizing your register, the noise is really the only issue. So a bigger register will not help cool or heat your room better. Putting the register in a better location and making sure the air is shooting out in an efficient manner and at an efficient angle is key.

What size floor vent do I need?

To measure your register properly, remove the existing register from the floor, wall, or ceiling in which it is installed. Then, measure the length and width of the air duct opening. If the size of the duct measures 4″x10″, for example, then a 4″x10″ register is what you’ll need.

Where does the cold air return go?

Where is the cold air returning to on a furnace? The cold air from the returning vents is cycled back into the furnace where it is heated and cycled back into the house.

Do you need a vent cover?

The function of a vent cover is to redirect the air flow from the ventilation system to where it is needed most. Thus, rooms that don’t see much traffic should have the vent covers closed while rooms that really need heating or cooling should have the vents left open.

How do you clean inside floor vents?

Use a damp rag or vacuum to clean loose debris from the floor vent. Remove the floor vent. You may need to unscrew the vent, and gently lift the vent out of its position in your floor. Lay down a towel or newspaper to place the dirty vent on to prevent transferring debris to the floor or other surfaces.

How do I get something out of my floor vents?

1. Remove the Vent Cover: Most floor air vents are simply placed over the duct work. …
2. Feel Around: Safely reach down into the vent and feel around for the dropped item. …
3. Use a Wire Hanger: If you could not get the dropped item this way, you can try using DIY tools like a wire hanger.

How does a baseboard register work?

Air flows up through the floor and into the box where an angled fin directs the flow out through openings in the front of the box. The baseboard is usually notched out to create a space for the register to fit flush against the wall.

What is vent register?

Registers are the vents that control air flow into a room from heating and cooling systems. … Registers can be used in walls and ceilings so cold air can fall into a room, and in floors so heated air can rise. If they become blocked, the air temperature in the room can be greatly affected.
