Mirror image artifacts occur when the transmitted pulse and returning echo reflect off of a highly reflective interface (an acoustic mirror) and change direction before returning to the transducer, thereby breaking this assumption.

Which process causes mirror image artifact?

Mirror image artefact is one of the beam path artefacts. These occur when an ultrasound beam is not reflected directly back to the transducer after hitting a reflective surface, but rather takes an indirect return journey.

What is mirror artifact?

Mirror artifacts occur when there is a strong difference in tissue velocity. When reflective echoes bounce back and forth, the structure is flipped. Mirror artifacts are friendly artifacts that let us exclude pleural effusion because of the reflection of the liver’s image through the diaphragm.

What causes mirror imaging?

When people look into a mirror, they see an image of themselves behind the glass. That image results from light rays encountering the shiny surface and bouncing back, or reflecting, providing a “mirror image.” People commonly think of the reflection as being reversed left to right; however, this is a misconception.

Where does the mirror artifact commonly occur?

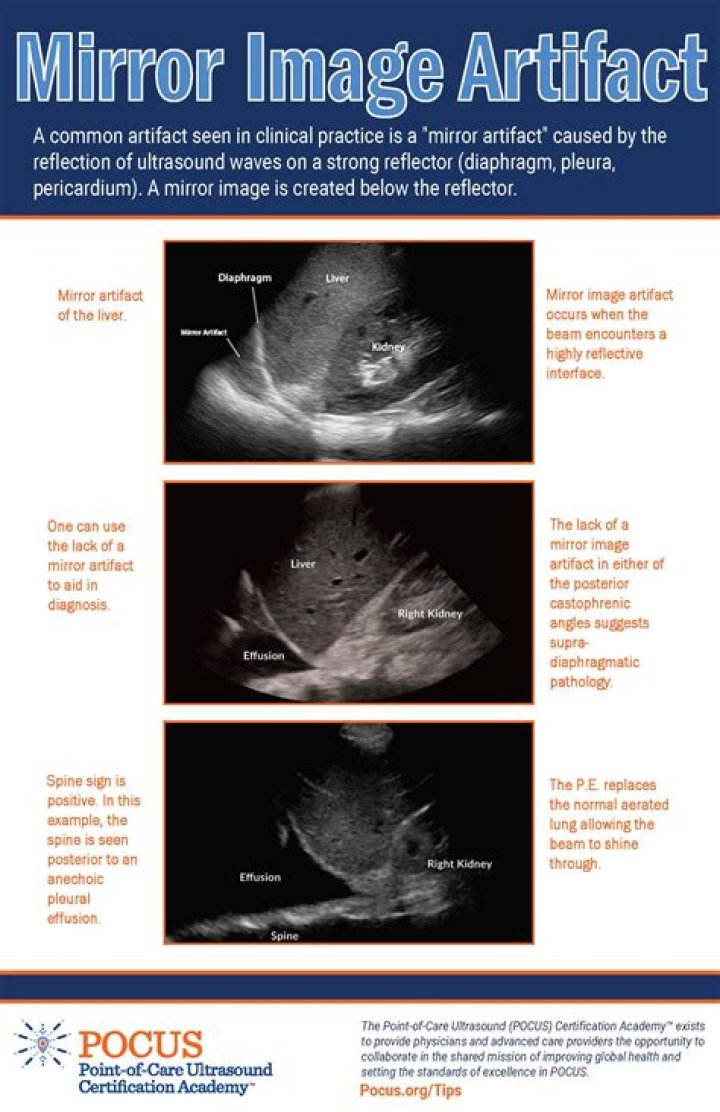

A common mirror image artifact occurs at the interface of the liver and the diaphragm in abdominal imaging. In one direction, the ultrasound beam correctly positions the echoes emanating from a lesion in the liver.

What causes mirror imaging in ultrasound?

Mirror artifacts are produced by the reflection of ultrasound waves after they propagate through a structure and encounter a strong and smooth interface capable of acting as a mirror.

What causes enhancement artifact?

Posterior acoustic enhancement, also known as increased through transmission, occurs as a result of a focal area of decreased impedance that lead to an increased transmission of sound waves to the tissue immediately below it. It is essentially the reciprocal of posterior acoustic shadowing.

What is mirror image artifact in ultrasound?

Mirror image artifacts occur when the transmitted pulse and returning echo reflect off of a highly reflective interface (an acoustic mirror) and change direction before returning to the transducer, thereby breaking the assumption of a straight path.

Why do mirrors reverse images?

The image of everything in front of the mirror is reflected backward, retracing the path it traveled to get there. Nothing is switching left to right or up-down. Instead, it’s being inverted front to back. … That reflection represents the photons of light, bouncing back in the same direction from which they came.

How can the sonographer eliminate a mirror image artifact if it occurs?

Mirror image artifacts, which also occur with color Doppler US, may be reduced by decreasing the gain or changing the angle of insonation.

Article first time published on

Are sonograms mirrored?

Bear in mind if you have an abdominal ultrasound, the results are mirrored. So if your placenta is on the right, that actually means it’s on the left (indicating a girl). If your placenta is on the left, that means it’s actually on the right (indicating a boy).

What is double image artifact?

The artifact is unique to the rectus muscles because these represent two apposed curved interfaces which behave like lenses, causing medial deviation of the refracted beam. Thus, a double image can be produced from a single object if it is at the right depth in the body.

What causes artifacts on ultrasound?

US artifacts arise secondary to errors inherent to the ultrasound beam characteristics, the presence of multiple echo paths, velocity errors, and attenuation errors.

Which artifact may be caused by the spectral gain being too high?

Cross-talk can occur when receiver gain is set too high. Ring down is an example of reverberation artifact.

What causes ring down artifact?

In ring-down artefact, the transmitted ultrasound energy causes resonant vibrations within fluid trapped between a tetrahedron of air bubbles. These vibrations create a continuous sound wave. This phenomenon is displayed as a line or series of parallel bands extending posterior to a gas collection.

Which assumption of ultrasonic imaging is violated when a mirror image artifact occurs?

The reverberation artifact violates the assumption that an echo returns to the transducer after one reflection.

What causes acoustic shadow artifact?

Shadow artifact results from attenuation that occurs when an ultrasound wave comes in contact with tissues that have a high attenuation coefficient. The major concern is the provider’s inability to identify structures in the shadow.

Which assumption of ultrasonic imaging is violated when a side lobe image artifact occurs?

Side and grating lobe artifacts result in the blurring of the edges of a displayed object (reduce lateral resolution); the assumption that the ultrasound waves are infinitely thin is violated. Grating and side lobes appear similarly around the main beam, but their mechanisms of origin differ (Fig.
