What causes leaf springs to separate?

One of the most common reasons leaf springs break — along with many other vehicle components — is an overloaded truck. If you need to haul more than the load weight rating of your truck permits, you can add components to your truck to increase your hauling capacity and avoid damage to your leaf spring.

Can you over tighten leaf springs?

If you over tighten either end of the leaf spring attachments… you can pinch the spring eye and eliminate all movement. You’ll know if you’ve done this because you’ll go from riding like a buckboard to riding like a steam roller.

What does a leaf spring connect to?

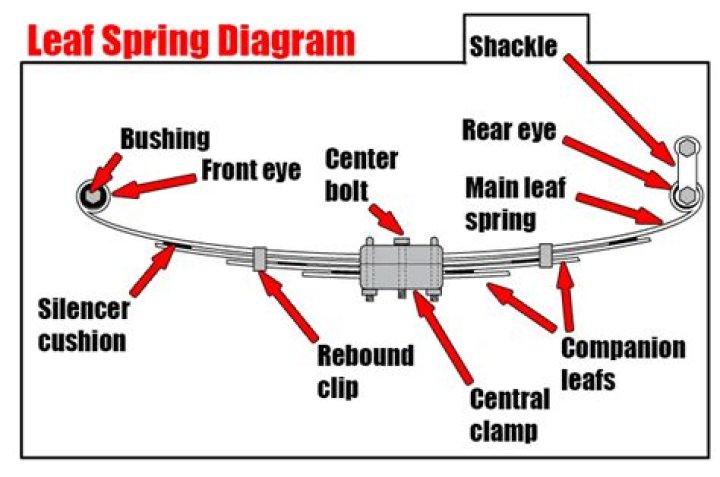

Leaf springs are directly attached to the frame, either at both ends or at one end. For the latter, the front end is attached to the frame while the other end is attached to a short swinging arm through a shackle.

How do you fix a shifted leaf spring?

Proper way to do it would be to take off the leafs, pull them apart, grind down any ridges made by friction, paint them, slip plate them, and put them back in with new bushings. Make sure your spring clamps are tight enough on the sides, but not so much that they wear into the spring (or viceversa).

How long should leaf springs last?

about 200,000 miles
On average a set of leaf springs for a standard pickup truck or van will have a lifespan of about 200,000 miles. This number is not written in stone, and some vehicles will break their springs with far less than 200,000 miles on them while others will go well beyond the 200,000 mile mark before they break.

What happens if you over tighten U bolts?

When this happens, the threads are actually cut and grooved by the nut as the nut is tightened around them. This means that if the nut is loosened back up or if it is retightened again, it is going to damage the threads on both the bolt and the nut. This creates an opportunity for the U-bolt to loosen up over time.

How tight should leaf spring U bolts be?

Tighten all U-Bolts until they are snug only. Tighten in the sequence shown to approximately 1/3 of recommended torque.

How do I make my leaf springs ride smoother?

Change the Leaf Springs We would suggest going for a pack of many thin leaves instead of a pack of few thin leaves. A pack of many thin leaves ensures that each thin leaf has a lower spring rate which makes your ride smoother.

What should I do if my leaf springs are not moving?

The springs should not move. Take the weight of the car off the suspension to check the springs for sideways movement. Remove the chocks from the front wheels and drive the car off the ramps. Jack up the back and support each side with an axle stand placed under a firm part of the chassis, not under the axle.

Why are the springs on my leaves breaking?

Over time, broken leaf springs symptoms are often the result of such activity. Some vehicles, apply specialized leaves to circumvent this problem. However, even the tapered-profile single leaves of leaf springs eventually go bad or become compromised.

How are leaf springs re-arched at doityourself?

The spring is then re-heated to at least 950 degrees Fahrenheit to set it to the correct hardness. After reforming the leaf springs, the final product is well-tempered, arched, and shaped. Then, they can be re-installed in their proper place.

What happens when you change the shackle on a leaf spring?

In relation to stock length, there are a bunch of things affected when you change shackle lengths. A longer shackle will move one end of the leaf spring further away from the frame, doing several things. 1) It rotates the axle down at the shackle side of the spring.

What should I do after aligning my leaf springs?

After aligning leaf springs make sure that the car is safe and controllable. This, however, should not be done on public or busy roads. For best results for your car park in a spacious and flat surface; make sure there is enough space to work at the car’s rear. Carefully jack the car up and place it on stands.

Over time, broken leaf springs symptoms are often the result of such activity. Some vehicles, apply specialized leaves to circumvent this problem. However, even the tapered-profile single leaves of leaf springs eventually go bad or become compromised.

How does the deflection of a leaf spring work?

Static deflection of a spring equals the static load divided by the rate at static load; it determines the stiffness of the suspension and the ride frequency of the vehicle. In most cases the static deflection differs from the actual deflection of the spring between zero and static load, due to influences of spring camber and shackle effect.

What are the benefits of leaf spring suspension?

Leaf springs possess many desirable suspension features, such as dampening, forward bite, roll over steer, high anti-squat percentage, and high lateral stiffness. In addition, the leaf spring suspension is more forgiving on chassis set-up errors.
