What can cause a parasitic draw?

The most common causes of parasitic drain are under hood lights, trunk lights, headlights or glove box lights that do not turn off when the door is closed. Relay switches that are stuck in the “on” position can also cause a battery to drain.

What is parasitic draw on a battery?

What is Parasitic Drain? Parasitic drain on your battery is essentially when your car’s electrical system continues to pull energy from the battery, even when the vehicle is entirely turned off.

What can drain batteries?

7 Things That Can Drain Your Car Battery

• You left your headlights on.
• Something is causing a “parasitic draw.”
• Your battery connections are loose or corroded.
• It’s extremely hot or cold outside.
• The battery isn’t charging while you drive.
• You’re taking too many short drives.
• Your battery is old.

Can a battery cause a parasitic draw?

A parasitic battery drain is when an abnormal and continuous discharge of power occurs after having shut off the engine. Usually, this is caused by a short circuit or an electrical device that remains in the “on” position or energized, such as: A trunk….3. Components Amperage Use.

How do you diagnose a parasitic battery drain?

How To Diagnose the Battery Drain

1. Step 1: Remove Negative Battery Cable. Negative Cable Removed.
2. Step 2: Check the Draw Across the Negative Cable and Battery Post.
3. Step 3: Remove and Replace Fuses.
4. Step 4: Isolate and Fix the Issue.
5. Step 5: Replace Negative Battery Cable.

How do you test for a parasitic battery drain?

Pull the negative off the battery. Put the test light between the post and the ground wire. If the light illuminates, you have a draw. Use the fuse pull method to find the draw; when the light goes out, you found the draw.

What is acceptable parasitic draw?

A normal amount of parasitic draw for newer cars is between 50-milliamp to 85-milliamp current draw. A normal amount of parasitic draw for older cars is a reading less than 50-milliamp. Anything past these amounts indicates an electrical issue and should be addressed by a mechanic.

How much parasitic draw is acceptable?

In fact, we suggest a 25-milliamp draw is acceptable and anything that exceeds 100-milliamps indicates an electrical issue that needs to be addressed.

Is it normal to have a drain on a battery?

If a battery drain exists you will see a draw on the battery measured in amps or milliamps.There are a few parasitic drains on both battery systems that are considered normal if they fall within the acceptable standard of around 100mA or less (about one-tenth of one amp).

What to do if your car battery is draining?

Assuming that the cause of the battery drain is not human error, you will need the assistance of a qualified mechanic who can diagnose your car’s electrical problems and determine if it’s a dead battery or something else in the electrical system.

How to check for battery drain with multimeter?

Go to the fuse panel located usually under the steering wheel of your car. Each car may be different though. Start by pulling out one fuse (best to start in a certain order and not to just do it randomly). Complete the steps above. If your battery still has battery drain, then it was not due to items on that fuse.

How to find the cause of parasitic battery drain?

Luckily, you can usually find the cause of a parasitic draw yourself. Start by connecting a digital multimeter to the negative battery terminal of your vehicle. Then, remove the fuses one at a time while watching for changes in the multimeter’s reading.

How can I tell if my battery is draining?

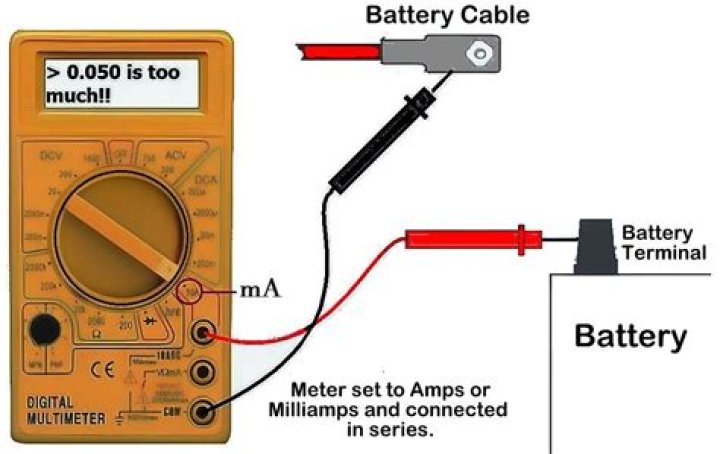

Place one of the wire leads from the multimeter (it doesn’t matter which one) on the negative battery post and the other on the disconnected battery cable. You should see the multimeter display the number of Amps that are actively causing your battery drain.

How to find and fix a parasitic battery drain?

You should see the multimeter display the number of Amps that are actively causing your battery drain. Use zip ties or small clamps to keep the multimeter leads connected to the battery terminal and battery wire. Tip: A normal operating vehicle will have about 50 milliamps of Amp draw on the battery.

Is there a way to drain a battery in one day?

That seems like a tiny amount, but a single incandescent dome light pulls enough power to drain a battery in one day. Remember that the drain doesn’t have to take your battery to zero overnight, just low enough for it to not start.

How to get rid of negative battery drain?

Remove the negative battery cable from the negative battery terminal. Find the negative cable, which will be marked with a minus sign (-) and may have a black cover over it. Remove the cover, if applicable, and use a wrench to unbolt the negative cable from the terminal.
