What are the 5 wires on a trailer plug?

Trailer Wiring Has 5-Wires White, Yellow, Green, Yellow/Brown, and Green/Brown. Expert Reply: On a 4-Way flat trailer wiring harness, white is the ground, brown is running lights, yellow is left turn signal and green is right turn signal. It sounds like your trailer has a wishbone harness.

Can you wire electric trailer brakes backwards?

Question: When installing an electric brake assembly, like the Electric Trailer Brake Assembly, Left Hand # AKEBRK-35L, either wire can be used for the brake signal and the ground wire, it will not matter which wire is used for which. …

What are the two wires on trailer brakes?

Each of your new brakes will have two wires for the brake magnet. One wire is for 12 volt power to the brake magnets and the other wire should be grounded either to the trailer frame or to the main trailer ground wire. It does not matter which wire is used for power or ground because they are not polarized.

What is the yellow wire on a 7 pin trailer plug?

The yellow wire of the 7-way harness part # H20044 that you referenced goes to the center pin of the 7-way which is an aux circuit that is typically used for reverse lights if present on the trailer.

Does it matter which wire goes where on electric brakes?

The brakes are not grounded, so the wires coming out of the back of the brakes does not have polarity ( no hot or ground). It does not matter which wire you connect to which wire, only that they are not connected to each other! Run a the two conductor wire to each brake, and hook to the two wires on the brake.

What are the cables for electric trailer brakes?

Brown cables for running lights, tail lights, and side markers. Yellow cables for left brake signal and left too. Green wires for proper brake signal and right twist also. Blue wires for electric brakes so that the car can operate better. There is a very basic Wiring Electric Trailer Brakes Diagram. It is the 4-pin connector.

What are the different wires in a trailer?

Only the (blue) brake and (white) ground wires are different. You can expand the same conditions for more axles. Use only the needed wires, and ignore the others. For example, if you don’t need Auxiliary Power, just leave it out. If the axles do not have brakes, then no need for that.

What is the brake diagram for a trailer?

Wiring Electric Trailer Brakes Diagram – Folks comprehend that trailer is a car comprised of very complicated mechanisms. This automobile is designed not just to travel one location to another but also to carry heavy loads. This article will be talking wiring electric trailer brakes diagram.

How to wire a trailer with a 4 Way Plug?

Step 1: Prepare for Vehicle Wiring Installation If your vehicle already has a 4-way connector, then great! Simply plug the trailer-end connector into the vehicle-end connector, and you’re ready to roll. If your vehicle does not have a 4-way connector, it’s usually pretty simple to add one. Just keep in mind that wiring is a custom component.

How to wire electric brakes on a trailer?

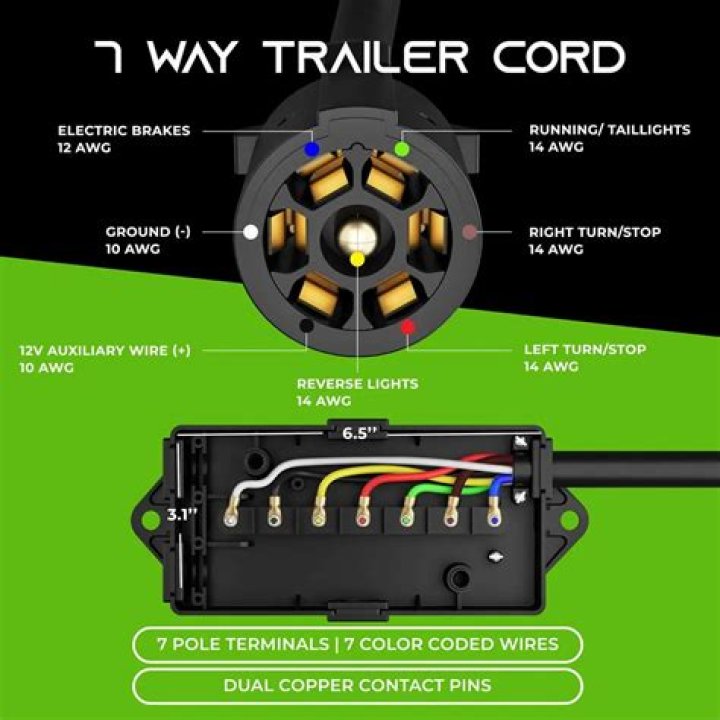

This Wiring Electric Trailer Brakes Diagram model is more acceptable for sophisticated trailers and RVs. It can transfer electricity better hence the connector is suggested for higher-level electric in the auto. Here’s the diagram for 7-pin connector. White Pin for the ground.

How big is the etrailer electric brake wire connector?

This molded, 7-way, RV-style, trailer-end connector with a 22′ long cable lets you replace a damaged wiring harness on your trailer. Connector includes self-cleaning contacts and a molded-on

Can you hook up a brake controller to a trailer light?

This universal wiring kit lets you install an electric brake controller (sold separately) in your vehicle and a 7-way connector for your trailer lights at the same time. Plugs into the existing 4-way
