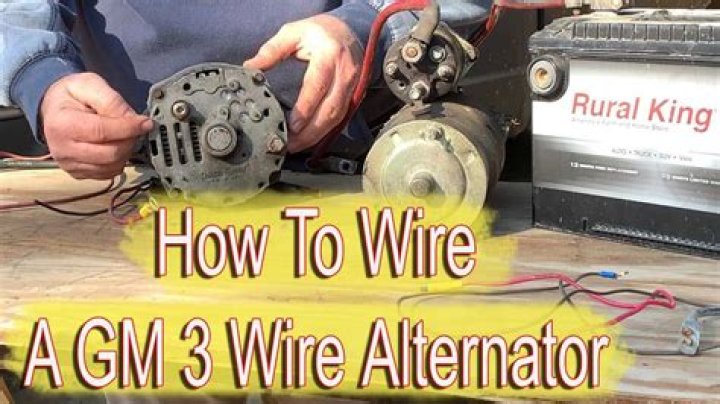

What are the 3 wires on a GM alternator?
What are the 3 wires on a GM alternator?
The three wire types in a three-wire alternator include the battery positive wire, the voltage sensing wire, and the ignition input wire. The battery positive wire connects to the starter. The voltage sensing wire connects to the battery, and the ignition wire connects from the alternator to the key switch.
What is the difference between 1 wire and 3 wire alternator?
“The 1-wire alternator only has a sense of what it is sending current to, which is the battery. The three wire alternator senses voltage at the fuse block and the ignition, and the alternator will then charge more to get all the systems up to power,” Overholser sums up.
How do I know if I have a one wire alternator?
You can verify it’s a one-wire by opening up the case and looking for the letters “SE” on the voltage regulator. If it’s already installed on the vehicle you have to polarize it the first time to get it to work. You just use a jumper wire to supply current to #1 or #2 connector on the side.
What does S and L mean on an alternator?
S terminal – Senses battery voltage. L terminal – Closes the circuit to the warning lamp. B terminal – Main alternator output terminal (connected to the battery)
What are the three types of wire in an alternator?
Do you need a degree to wire an alternator?
You dont need an engineering degree just a basic understanding of the general principles. So a car has a rechargeable battery and a charging system to keep it topped up. How to understand alternator wires. 64 72 charging system wire up using gm 3 wire internally regulated alternator chris craft.
Do you need an alternator in a 1960 car?
Vehicles older than a 1960 model may require all of the connections of the alternator, except ground, to be connected to positive and negative terminals of an external voltage regulator instead of directly to battery and ignition connectors.
How to connect two wire Delco 10si alternators?
To avoid this, cancel and sign in to YouTube on your computer. An error occurred. Please try again later. (Playback ID: QeSzBHV9ojkuOPcM) An error occurred while retrieving sharing information. Please try again later.
What kind of wiring does an alternator use?
Typical Alternator Wiring. This is the ground connection. Typical alternators have this terminal although some alternators don’t as they are grounded directly to the engine. The wire that connects to this terminal is black and the opposite end attaches to a metal part of the car. Check if your alternator has a terminal marked “Ign” or “L.”…
How to install an alternator on a tuff battery?
ALTERNATOR INSTALLATION INSTRUCTIONS 1 – Disconnect the ground cable from the battery. 2 – Disconnect all wire connections from the alternator and label wires for future replacement. 3 – Remove alternator belt(s). 4 – Loosen alternator mounting and tension arm bolts. 5 – Hold the alternator securely while removing the mounting bolts and spacers.
Vehicles older than a 1960 model may require all of the connections of the alternator, except ground, to be connected to positive and negative terminals of an external voltage regulator instead of directly to battery and ignition connectors.
Is there a fourth terminal on an alternator?
Most typical alternators have this wire connection. Check to see if you have a fourth connection on your alternator. The fourth connection is used to wire between the alternator and the voltage regulator. Labeling is inconsistent but is often “S”. If you have a fourth terminal it is for the voltage regulator.
