What 3 Colour wires are included in the power cables?

U.S. Electrical Wiring Color Codes

• Phase 1 – Black.
• Phase 2 – Red.
• Phase 3 – Blue.
• Neutral – White.
• Ground – Green, Green with Yellow Stripe, or Bare Wire.

  Which wire colors are positive and negative?

  Positive – The wire for the positive current is red. Negative – The wire for the negative current is black. Ground – The ground wire (if present) will be white or grey.

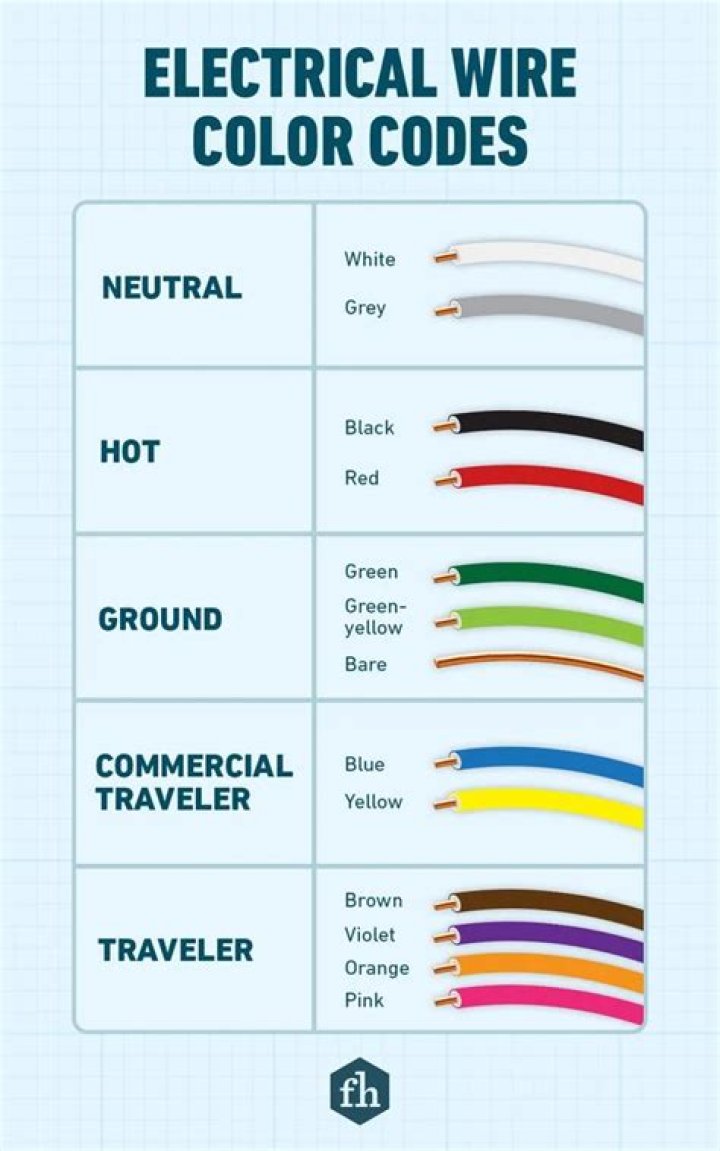

  What is the color code for electric wire?

  US AC power circuit wiring color codes The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.

  Can a white wire be connected to a gray wire?

  White and gray wires can only be connected to other white and gray wires. Although neutral, these wires still may carry a current, especially an unbalanced load, so handle with caution.

  What are the colors of a ground wire?

  SAFETY: Shut off power to the circuit or use a multimeter to be sure the wiring is not HOT or LIVE before wiring or rewiring a switch or outlet. Are the GROUND wire and are used for GROUNDING the electrical circuit. Ground wires can be a bare wire, a green wire, or a green wire with a small yellow stripe.

  Who is Larry Campbell and what are the colors of electrical wiring?

  Larry Campbell is an electrical contractor with 36 years of experience in residential and light commercial electrical wiring. Opening up an outlet or light switch box, you might be confronted with a bewildering array of wires of different colors. Black, white, bare copper, and other colors closely intermingle, yet each one has a specific purpose.

  What are the colors of a 277 volt wire?

  277/480 Volt Wire Color Standards 1 Phase 1 – Phase 1 wiring should be brown. 2 Phase 2 – Phase 2 wiring should be orange. 3 Phase 3 – Phase 3 wiring should be yellow. 4 Neutral – Neutral wires should be grey. 5 Ground – Ground wiring should be green, or green with a yellow stripe. More
