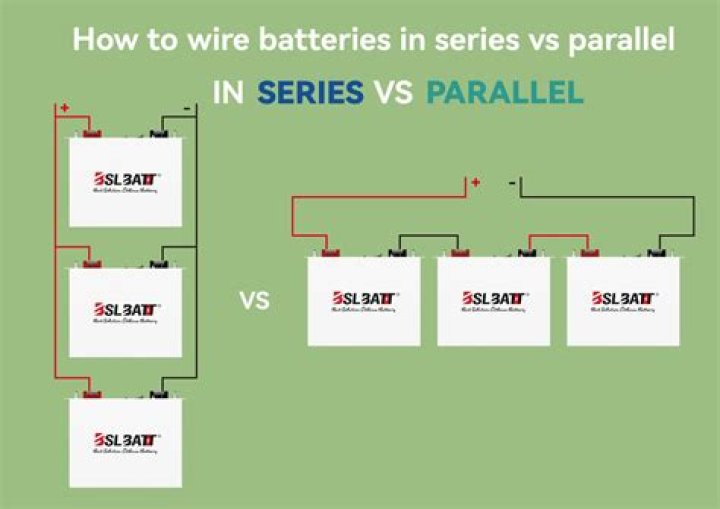

Should I wire my boat batteries in series or parallel?

Connecting batteries in series has several advantages, chief among these being they resist charging and voltage imbalances that are common in large battery banks that consist of batteries connected in parallel. Very large battery banks may be made up of 2-volt batteries, twelve for a 24 volt system.

What runs on 6V battery?

As a widely known type of lantern battery, 6-volt cells are used to supply electricity to torch lights, flashlights or any other illumination that needs higher energy capacity. Since these are rechargeable batteries that are comprised of multiple arrays of cells inside, they have a large capacity for energy storage.

Are two 6V batteries better than 12V?

Because most 6 volt batteries have a higher number of amp hours for each battery, it makes sense to purchase two 6 volts and wire them in a series – that gives you 12 volts, meeting your electrical system’s needs. The 6-volt batteries last longer than most 12 volt ones, and they are lighter, as well.

How long does it take to charge a 6V 4.5 Ah battery?

The first time you charge a new battery, it will take significantly longer than subsequent charges. For 6v batteries, the first charge should be 10 hours, with regular charging taking 6 hours.

What should a 6 volt battery read on a multimeter?

Look at the digital or meter display on the multimeter or voltmeter. It should read 6 volts if the battery is in good condition and is at least 20 percent charged. If it reads less than 5 volts, recharge the battery.

How many amps should a 6 volt battery have?

A 6 volt battery can always be charged at 2 amps. If you’re dealing with a deep cycle battery, you must charge it at a low amperage like 2 to 4 amps. A 10 amp current could overload it or even cause it to explode.

How are 6V batteries wired in series configuration?

In a Series Configuration the batteries are wired per the diagram below and the result would be a doubling of the voltage while the capacity remains the same. In our illustration we show two 6V batteries with 225AH wired together. The result would be a battery bank that produces 12V and 225AH.

How can I wire a 6 volt battery?

This article will help you to wire 6 volt batteries. In a Series Configuration the batteries are wired per the diagram below and the result would be a doubling of the voltage while the capacity remains the same. In our illustration we show two 6V batteries with 225AH wired together. The result would be a battery bank that produces 12V and 225AH.

How are deep cycle batteries wired in series?

Wiring batteries together in series will increase the voltage while keeping the amp hour capacity the same. For example; 2 x 6V 150Ah batteries wired in series will give you 12V, but only 150Ah capacity. 2 x 12V 150Ah batteries wired in series will give you 24V, but still only 150Ah. Parallel Connection

Can a 24v battery be wired in series parallel?

Wiring Batteries In 24V Series Parallel Configuration The following wiring configuration requires eight 6V batteries. Using any eight 6V batteries group them into two groups of four. Wire each group positive to negative will give you 24V on the furthest negative and positive post not wired to another battery.

How to connect 6 volt batteries in series?

To connect six 6 volt batteries together in series, start with the main positive or negative of the battery bank. For this example, start with the battery bank main positive to connect six 6 volt batteries in series to form a 36 volt bank.

How do you wire a 6V battery bank?

Using any eight 6V batteries group them into two groups of four. Wire each group positive to negative will give you 24V on the furthest negative and positive post not wired to another battery. Then with the two groups, wire them together positive to positive and negatives to negative to give you 500Ah.

Wiring Batteries In 24V Series Parallel Configuration The following wiring configuration requires eight 6V batteries. Using any eight 6V batteries group them into two groups of four. Wire each group positive to negative will give you 24V on the furthest negative and positive post not wired to another battery.

Can a 6 volt battery be used in a 12 volt RV?

In RVs where 6 Volt batteries are used, you may need to use a combination of both these methods to get 12 Volt output and increase the amount of total Amp Hours simultaneously. Let’s discuss this further and provide some examples: Batteries wired in series: With batteries wired in series, the Voltage increases but the Amperage remains the same.
