Should I connect batteries in series or parallel?

For example, two 6 Volt batteries connected in series will deliver 12 Volts of output, but will carry the same amp hour capacity. In contrast, batteries connected in a parallel configuration are able to increase the amp-hour capacity of your batteries, at the same voltage.

What happens if you connect batteries in series and parallel?

When two or more batteries are placed in parallel, the voltage in the circuit is the same as each individual battery. That is two, three, four or more 1.5 volt batteries in parallel will produce a voltage of 1.5 Volts! When batteries are connected in series, the voltage increases.

Can you wire batteries in series and parallel at the same time?

It is also possible to connect batteries in series and parallel configuration. Therefore, you can connect two parallel connections in a series as you would two batteries. Only one cable is needed; a bridge between a positive terminal from one parallel bank to a negative terminal from the other parallel bank.

Can I charge 2 12v batteries in parallel?

9. Two Batteries in Parallel, One Charger. Batteries connected in series strings can also be recharged by a single charger having the same nominal charging voltage output as the nominal battery pack voltage. This 12-volt battery pack is connected to a single 12-volt charger.

What does it mean to connect batteries in parallel?

For more information on wiring in parallel see Connecting batteries in parallel or our article on building battery banks. The basic concept when connecting in series is that you add the voltages of the batteries together, but the amp hour capacity remains the same.

When do you use a series parallel connection?

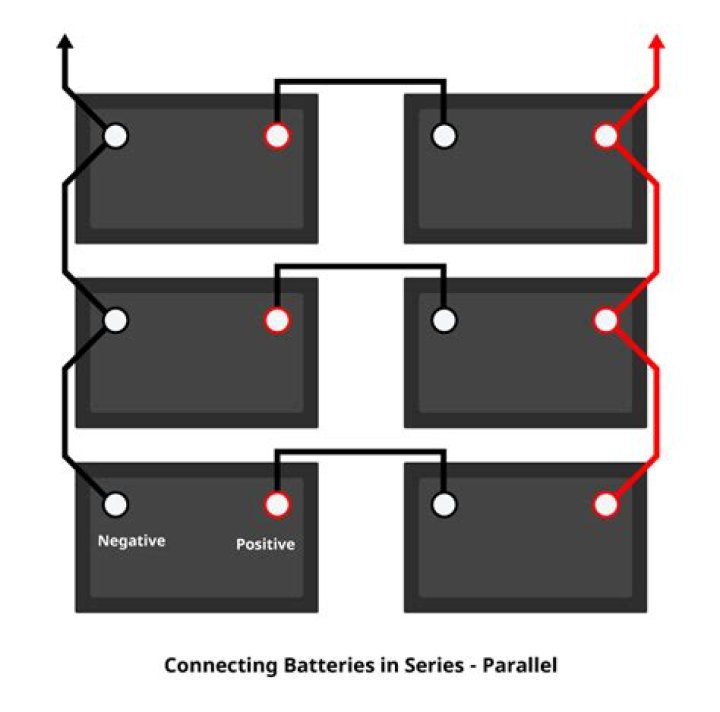

Series-parallel connection is when you connect a string of batteries to increase both the voltage and capacity of the battery system. For example you can connect six 6V 100Ah batteries together to give you a 24V 200Ah battery, this is achieved by configuring two strings of four batteries.

What does it mean to connect batteries in series?

Connecting a battery in series is when you connect two or more batteries together to increase the battery systems overall voltage, connecting batteries in series does not increase the capacity only the voltage.

Can a 4.5 Ah battery be wired in parallel?

two 6 volt 4.5 Ah batteries wired in parallel are capable of providing 6 volt 9 amp hours (4.5 Ah + 4.5 Ah). four 1.2 volt 2,000 mAh wired in parallel can provide 1.2 volt 8,000 mAh (2,000 mAh x 4). But what happens if you wire batteries of different voltages and amp hour capacities together in parallel? This is the big “no go area”.

For more information on wiring in parallel see Connecting batteries in parallel or our article on building battery banks. The basic concept when connecting in series is that you add the voltages of the batteries together, but the amp hour capacity remains the same.

Series-parallel connection is when you connect a string of batteries to increase both the voltage and capacity of the battery system. For example you can connect six 6V 100Ah batteries together to give you a 24V 200Ah battery, this is achieved by configuring two strings of four batteries.

What’s the difference between series and parallel relion batteries?

We are frequently asked the questions like, “what’s the difference between series and parallel”, “can RELiON batteries be connected in series.” It can be confusing if you’re new to lithium batteries or batteries in general, but hopefully, we can help simplify it. Let’s start at the beginning – your battery bank.

How are batteries connected in a series connection?

Keep in mind in series connections each battery needs to have the same voltage and capacity rating, or you can end up damaging the battery. To connect batteries in series, you connect the positive terminal of one battery to the negative of another until the desired voltage is achieved.
