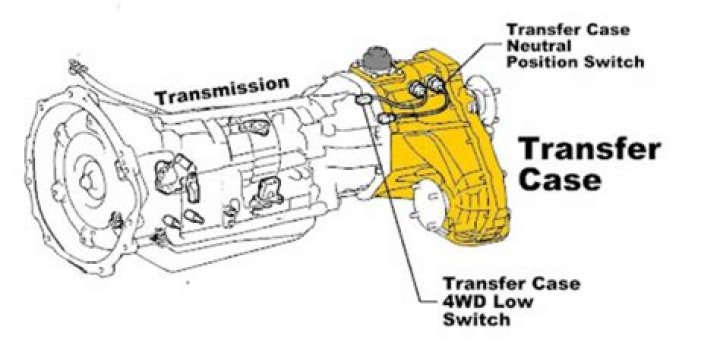

Hi there. Usually the gaskets between the transmission and the transfer case are known as the transfer case gasket or the transfer case adapter gasket. The gasket may be listed as the type of transfer case and then followed by the words adapter and gasket.

Does transfer case need gasket?

All American trucks have a paper gasket between the transmission and the transfer case. The reason is if the rubber seal that rides on the transfer case shaft fails there will still be some type of seal to keep it from pouring out.

What is the seal between the transmission and drive shaft?

The slip yoke is the part of your driveshaft that connects the driveshaft to the output shaft on your transfer case or transmission. The slip yoke seal is the seal that allows that yoke to move in and out while still keeping the transmission or transfer case fluid sealed inside.

Does transmission fluid go into transfer case?

Most transfer cases are filled with an automatic transmission fluid, which is usually red in colour. Others use a thicker gear oil, and some use a specialized fluid that is specifically made just for that transfer case.

What is the gasket called between the engine and transmission?

The rear main seal keeps oil sealed inside the rear of the engine, where the crankshaft connects with the transmission. It can be expensive to repair, often $600 or more, because it typically involves removing the transmission and, in some cases, all or part of the engine.

What are the symptoms of low transfer case fluid?

If you hear grinding, growling, or humming noises that change with your vehicle speed, it may be coming from the transfer case. This could indicate a low fluid level or some mechanical problem such as bad bearings, loose chains or damaged gears.

Why does my transfer case adapter keeps breaking?

The cause on these cases & housings is the idler pin if im not mistaken ( little metal tab on the lower case) that rubs the case and wears a whole which turns into a crack. When replacing my t-case I also found the trans housing that the t-case housing attaches to was loose, check that to make sure they are snug,.

What are the symptoms of a bad transfer case?

• Gear Shifting Issues. …
• Difficulty Staying in 4WD. …
• 4WD Will Not Engage/Disengage. …
• Puddle Formation Directly Under the Transfer Case’s Location. …
• Weird Grinding, Growling or Humming Noises. …
• 4WD Warning Light Illuminates. …
• 4WD Transfer Case.

Does a transfer case do anything in 2WD?

The transfer case is located between the transmission and front and rear differentials via the driveshafts, creating a two-wheel drive (2WD) or four-wheel drive vehicle. … When the transfer case engages the front shaft, which feeds power to the front wheels, the vehicle then becomes a four-wheel drive.

What is a transfer case seal?

The transfer case output shaft seal is located on the transfer case of four-wheel drive vehicles. … The transfer case output seal prevents fluid from leaking out of the transfer case, keeping the internal metal components properly lubricated.

Article first time published on

How much does it cost to reseal a transfer case?

Transfer Case Output Shaft Oil Seal Replacement Cost – RepairPal Estimate. Labor costs are estimated between $164 and $207 while parts are priced at $48. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location.

How many seals are there in a transmission?

Seals and Gaskets There are two main external seals: the front seal and the rear seal. The front seal seals the point where the torque converter mounts to the transmission case. This seal allows fluid to freely move from the converter to the transmission but keeps the fluid from leaking out.

Is there a gasket between bellhousing and engine?

Registered. There is no need for a gasket between the block & bellhousing.

What is a crankshaft seal?

The crankshaft seal is attached to the front of the engine. It seals the end of the crankshaft together with the timing cover. … Crankshaft seals are a simple component, but they serve a very important purpose. They keep the oil, which is tossed by the rotating crankshaft, from leaking outside of the crankcase.

How much does it cost to fix a rear main seal?

The rear main seal usually costs between $600-$900, with a service fee of around $550 to $820 out of the overall replacement charge.

Is the transfer case always engaged?

Registered. There is always power going through the transfer case even in 2wd.

How often should transfer case fluid be changed?

Manufacturers tend to recommend different maintenance intervals based on the type of vehicle and intended use, but generally speaking, it’s safe to perform a transfer case fluid service every 30,000 miles. Vehicles that are used for towing or frequent off-roading should probably get this fluid changed more frequently.

How long do transfer cases last?

A GM transfer case should last at least 100,000 miles. Transfer cases are built to be workhorses, but they may fail eventually. When a transfer case fails, one of these two scenarios can happen: If you have a part time 4WD, the transfer case may not want to shift into 4WD.

What fluid goes in a transfer case?

Transfer cases may be filled with gear oil, automatic transmission fluid (ATF), or specialty lubricants. It is important to regularly inspect the transfer case for any damage, leaks, or other concerns.

Can you still drive with a bad transfer case?

Should you drive your car with a bad transfer case? Driving your car with a bad transfer case is a bad idea. If you continue to drive with a transfer case that has a serious mechanical problem, you could destroy it beyond the point of repair, and possibly damage your transmission, driveshafts and axles in the process.

How much does it cost to replace a transfer case?

The transfer case is also capable of synchronizing the difference between the rotation of the front and rear wheels. Transfer cases may contain one or multiple sets of low range gears for off-road utility. Typically, the average cost for a replacement is expensive, between $2,389 and $2,500.

What happens when transfer case motor goes bad?

The common symptom of a bad TCCM is a warning message or warning light on the dashboard. If the transfer case module fails, there will be no power to transfer case shift motor. … Normally, the maintenance or service message should go away when you turn off the engine and start the vehicle again.

What happens when the transfer case goes out?

When your transfer case goes bad, your car might jump in and out of 4-wheel drive on its own. This indicates an inability to stay in a drive mode which can damage the transfer case, other systems on the vehicle, or cause an unsafe driving situation.

Why is my transfer case leaking?

A leak could be from a bad seal or an issue locked within the case itself. The output shaft seal is the part of the transfer case that connects the case to the axle. … These seals can dry up, wear out and break. Once this occurs, the fluid can no longer lubricate the parts within the transfer case.

How much does it cost to fix a leaking transmission seal?

How Much do Transmission Leaks Cost to Repair? The cost to fix a transmission fluid leak in a vehicle can be as little as $150 to replace a seal and around $1,000 to for a new torque converter.

Where do transmission leaks occur?

The most common source of a transmission leak due to faulty installation is from the transmission pan. The pan is not mounted correctly or incorrect bolts are used to secure it. Something as simple as these bolts will make transmission fluid leak from the pan.
